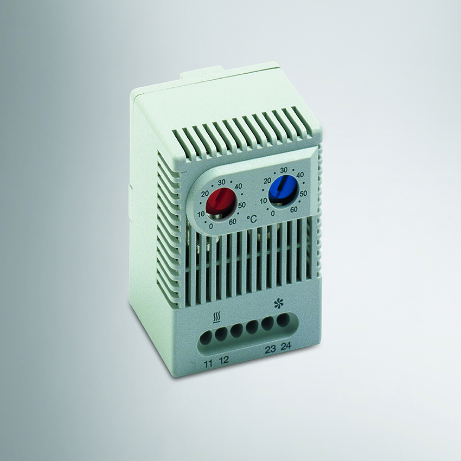

WI286

Configuration: THERMOSTAT AND AIR FLOW MONITOR

Two thermostats in a single solution: thermostat with NC contact for regulating heaters and thermostat with NO contact for regulating fans and exchangers, or as a safed y device for exceeding the maximum temperature limit. The solution has the following technical characteristics: adjustment range from 0 ° to + 60 °, useful life greater than 100000 cycles, connection via polar-wire square clamp and clip fixing for 35mm DIN rail.

Certifications

CE - VDE - cURus - RoHS

Resources

Family/SeriesWI
Manufacturer IDWI286
ContentsItem supplied individually.
Package quantity1 pc.
PackagingThermoplastic Film
Weight0,08
Weight net0,08
HTS (Customs)90321080
