WI282

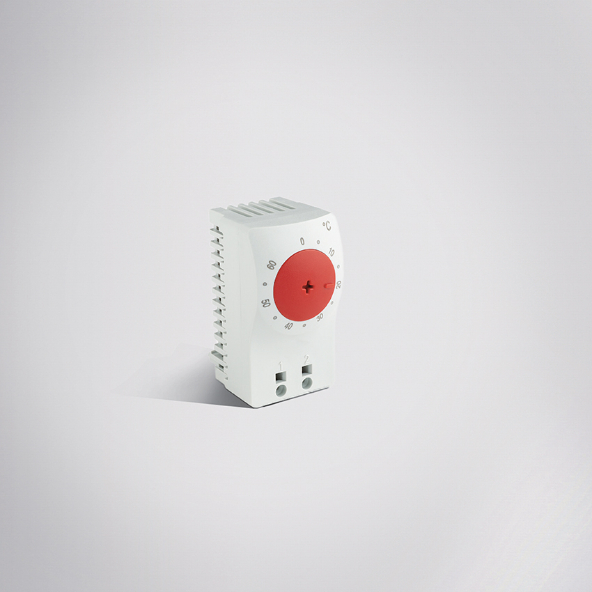

Configuration: SMALL THERMOSTAT WITH CONTACT NC

Thermostat with NC opening contact, which opens when the temperature rises. For controlling the air temperature of electrical panels: heating, ventilation and signal transmission. The range of thermostats has the following technical characteristics: adjustment range from 0 ° to + 60 °, bimed al as sensor element, service life greater than 100000 cycles, two-pole connections and clip fixing on a 35mm DIN rail.

Certifications

CE - VDE - RoHS

Resources

Family/SeriesWI
Manufacturer IDWI282
ContentsItem supplied individually.
Package quantity1 pc.
PackagingThermoplastic Film
Weight0,03
Weight net0,03
HTS (Customs)90321080
