EURL001

Configuration: Universal Shelf 456X44X021

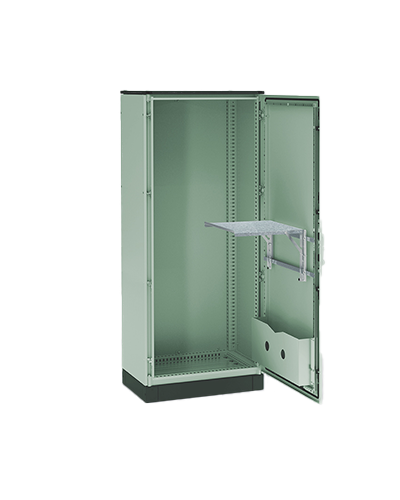

Universal work shelf ideal for positioning programming equipment or as a simple support shelf. This unit can be folded down thanks to its special system guides. It can be adjusted to three positions (50°/70°/90°) and can be mounted directly onto the reinforcing frame of the solid doors E NUX W=600mm. For doors with W>600mm order universal shelf with a pair of WTT0 door crossbars. Maximum load carrying capacity of 20kgs.

Height*	440
Width*	456
Depth*	21
* Dimensions mm (nominal inches)

Quantity add to quote cart

Material

Sheet steel

Resources

EURL001 STEP File

Family/Series	EURI
Manufacturer ID	EURL001
Finish	Textured finish
Color	RAL7035
Thickness	1,5mm
Paint	Standard electrostatic cycle E DUP ETA: liquid painting with cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy polyester powders.
Contents	Single piece complete with supporting rods and mounting accessories. If needs, to be ordered separately nr. 2 WTT0 door crossbars.
Package quantity	1 pc.
Packaging	Thermoplastic Film
Weight	3.6
Weight net	3.3
HTS (Customs)	85381000
