ERAM4-315X

Configuration:

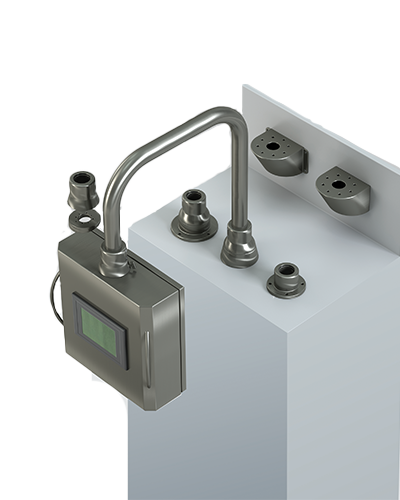

Operator housing made from stainless steel shaped and welded on all sides. Furnished with a solid hinged lide, complete with a panel stopper, screwed on at the top for easy maintenance. Rounded handles, which can be positioned either on the sides, the bottom or the curved sections of the operator housing.

Height*	300
Width*	400
Depth*	150
* Dimensions mm (nominal inches)

Quantity add to quote cart

Material

Operator housing and lid: AISI304L satin stainless steel sheet metal with ScotchBrite finish

Certifications

CE-UKCA

Resources

Environmental ratings	NEMA / UL Type 1, 12, 4x; IP66, IP69K
Family/Series	ERAM
Manufacturer ID	ERAM4-315X
Product material	AISI 304L
Thickness	Enclosure and lid: 1,5mm
Impact rating	IK10
Contents	Supply includes nr. 1 solid operator housing complete with lid and panel-stopper; keyboard support and handles supplied separately.
Package quantity	1
Packaging	Brown cardboard box
Weight	7.6
Weight net	7.47
