ENUX061804ST

Configuration: Modular external doors

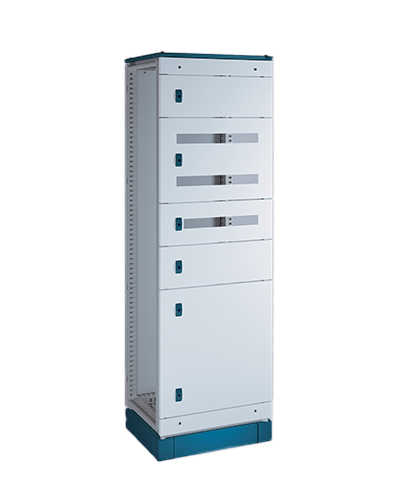

Modular cabinet with external door; High-strenght low-alloy sheet steel structure that allows the creation of modular solutions: modular enclosures for LV power distribution, enclosures with external door modules and fully split cubicles and enclosures with multiple doors with several separated cells on a single structure.

Height*	1809
Width*	600
Depth*	514
* Dimensions mm (nominal inches)

Quantity add to quote cart

Material

Structure (uprights, bottom and roof): HSLA sheet steel Panels: DC01 sheet steel with two-component polyurethane foam seal

Certifications

CE - UKCA - EAC - RoHS

Resources

3D CAD Catalog

Door type	Modular
Family/Series	ENUX-ST
Manufacturer ID	ENUX061804ST
HxWxD (mm)	600X1800X400
Finish	Structure: smooth finish Rear and roof: textured finish
Product material	Mild steel
Thickness	Structure: 1,2mm Front and rear door: 2,0mm Roof panel: 1,2mm
Paint	Ciclo standard elettrostatico E DUP ETA: verniciatura liquida con processo di elettroforesi catodica con resina epossidica e finitura con polveri epossipoliestere termoindurenti.
Contents	The solution is composed by E NUX structure; bottom with adjustable cable entry; rear panel with rounded folding and removable roof.
Package quantity	1 pc.
Packaging	Pallet + ETA green cardboard pack
Weight	54
Weight net	47
HTS (Customs)	85381000
