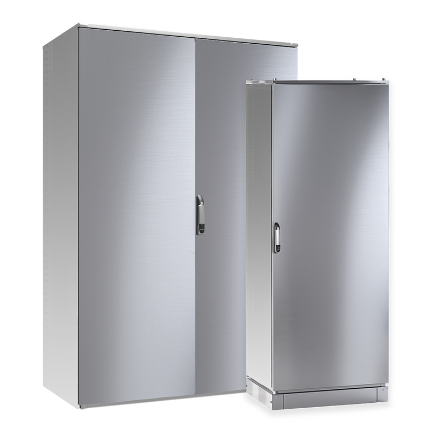

E NUX X Cabinets

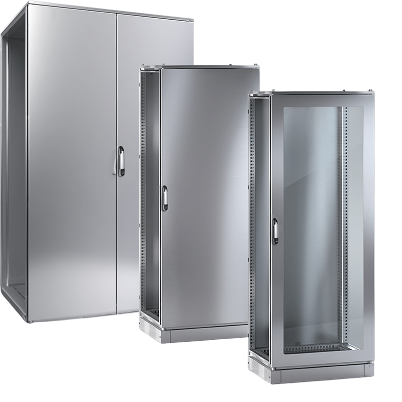

For indoor and outdoor applications, where the main requirement is to provide high resistance to environmental and chemical factors and protection from other aggressive agents of various kinds, the stainless steel E NUX X modular cabinet was born. Available in the standard version in AISI 304L stainless steel (AISI 316L on request).

The cabinet structure is offered with the same high-performance construction concepts as the painted sheet metal version (E NUX), but with distinctive pluses that make it suitable for applications in harsh environments, such as:

• oil&gas
• food&beverage
• chemical& petrochemical
• inshore&offshore
• marine environments

Different product configurations and a wide dimensional range are available:

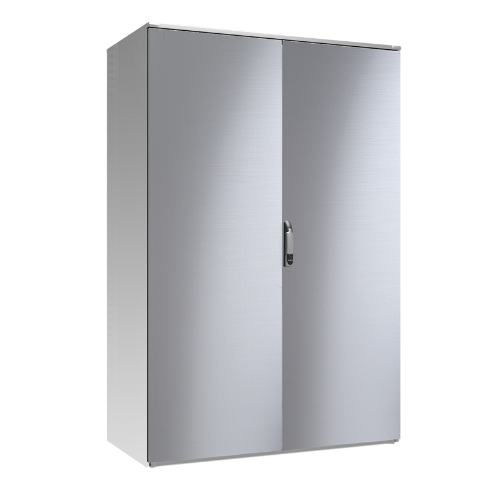

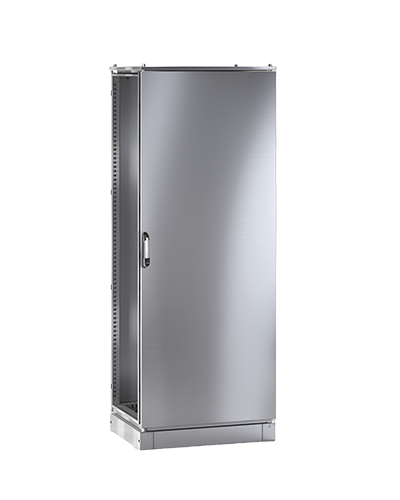

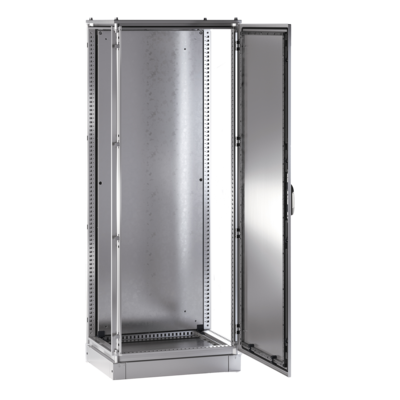

• cabinet with single/double blank door + rear panel (E NUX - PRX/PRXH)

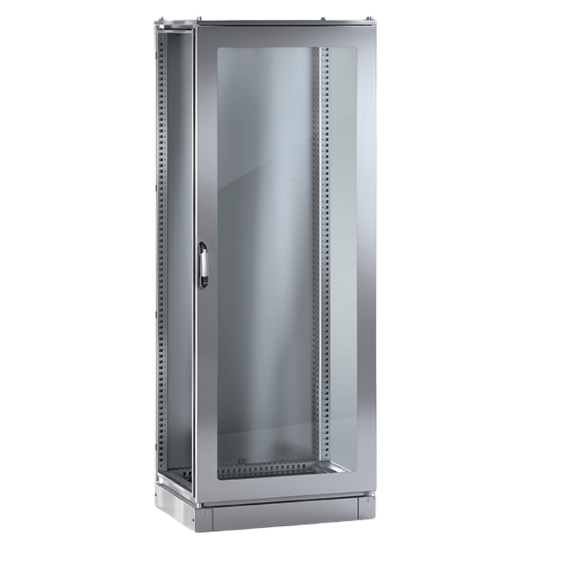

• cabinet with transparent door + rear panel (E NUX - PVX/PVXH)

• Rigid structure: manufactured from AISI 304L stainless steel (316L upon request) and equipped with unique right-angle joints and laser-welded symmetrical profiles on uprights, bottom crossbeams and roof
• Quick assembly: the structure is simply assembled with only 8 high-strength screws, ensuring quick assembly and significant savings on transportation
• Sturdy side and back panels, for considerable structural rigidity
• Innovative locking system: Easy-lock handle provides solid entry protection and increased functionality
• Door manufactured with formed corners with tubular stiffening frame, complete with double-flap locking system diam. 3.0mm with lever actuation

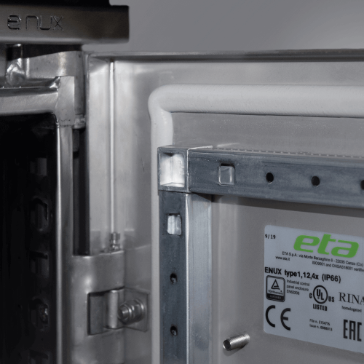

• Resistant and anti-corrosion hinges, in AISI 316L
• Bottom with modular and adjustable cable entry (double for L>1000mm) including gasket
• Protection guaranteed by cast silicone gasket
• Range flexibility, given by the availability of multiple sizes, confrigurations, versions and applications
• Certified product, meeting industry standards and able to guarantee safety and reliability

Let's find out together!
