The E NUX modular cabinet system can be considered the top of the range of ETA solutions.

Years of R&D led to the creation of E NUX, a core product in the field of industrial automation. Thanks to a modular structure and a wide range of dedicated accessories, E NUX allows customised configurations, optimising internal space and simplifying wiring and maintenance.

Various product configurations and a wide dimensional range are available:

• cabinet with single blank door + rear panel (E NUX - PR)

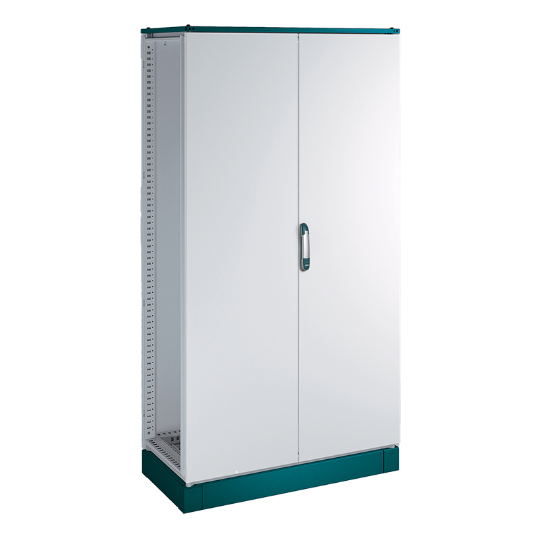

• cabinet with double blank door + rear panel (E NUX - PR)
• cabinet with transparent door + rear panel (E NUX - PV)
• cabinet with single blank door front + rear panel (E NUX - DP)
• cabinet with front + rear double blank door (E NUX - DP)
• front and side cable entry module

• Structure rigidity: manufactured from high-performance high-strength steel and equipped with unique right-angle joints and laser-welded symmetrical profiles.
• Quick assembly: the structure is simply assembled with just 8 screws, ensuring rapid assembly and significant savings on transport.
• Sturdy side and rear panels, for considerable structural rigidity, manufactured with box folds
• Innovative locking system: Easy-lock handle provides solid entry protection and increased functionality
• Door with tubular stiffening frame, complete with 3.0 mm diameter double flap locking system with lever operation
• Versatile design due to reversible door with reinforcement frame, modular cable entry bottom, removable roof for easy inspection
• Range flexibility due to the availability of over 90 standard sizes, different configurations, versions and applications
• Available in mounted or flat-pack versions
• Certified product, meeting industry standards and ensuring safety and reliability

E NUX cabinets are meticulously manufactured using a highly automated and specialised production process at every stage.

Materials:

• structure (uprights, roof structure and bottom): HSLA high-strength steel plate
• back panel and door: sheet steel DC01
• transparent panel: Plexiglas
• Thickness: structure 1.2mm, door 2.0mm, rear panel and roof 1.2mm, Plexiglas sheet 4.0mm

Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders

Colour:

• structure: RAL7035 smooth
• panel and door: RAL7035 textured
• roof: RAL5020 textured

Sealing gasket: two-component polyurethane foam, maintaining IP rating

Degree of protection: IP55, NEMA/UL Type 1, 12, 3R

Impact resistance degree: IK10
