E GRAN Junction Boxes

PAINTED SHEET STEEL

Material: painted DC01 sheet steel

Optimised cable management: junction boxes allow easy and smooth management of electrical cables and facilitate access to wiring for checks, repairs or future modifications.

Significant structural rigidity by producing panels with formed corners, no longer welded

Equipotentiality between panel and enclosure, allowing earthing between the two

Wiring support, thanks to:

  • optimised mounting plate, with more surface area and space for cabling
  • Optimisation of the grommeted and rubberized gland flanges to facilitate cable entry/exit

Maintained IP rating, thanks to gasket, enclosure caps and extended panel folding flap

Innovative panel closure system, with 1/4 turn screws

New hinge design, allowing the panel to be mounted without drilling holes in the panel

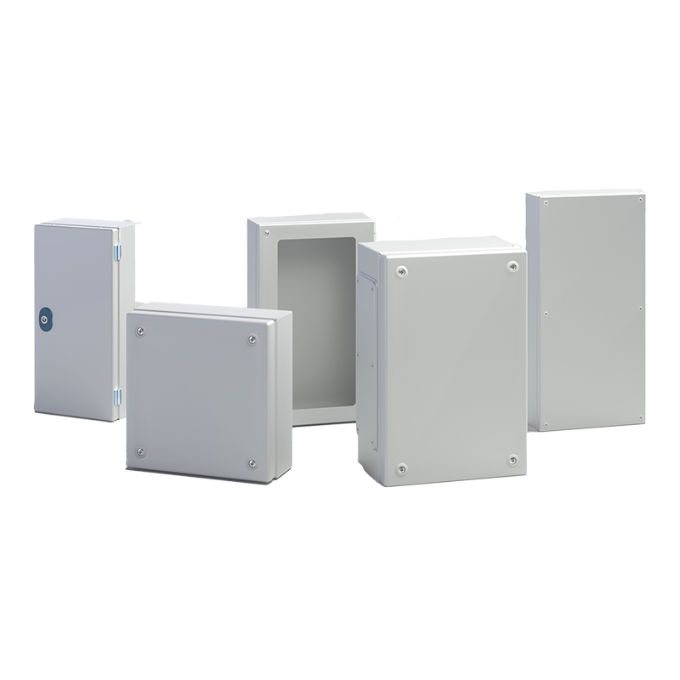

Product versatility: boxes availble

  • with screwed panel (E GRAN .A)
  • with front blank door (E GRAN . P)
  • with plexiglas screwed panel (E GRAN . AV)
  • with flanges (E GRAN .F)
  • EMC version (E GRAN .Z)

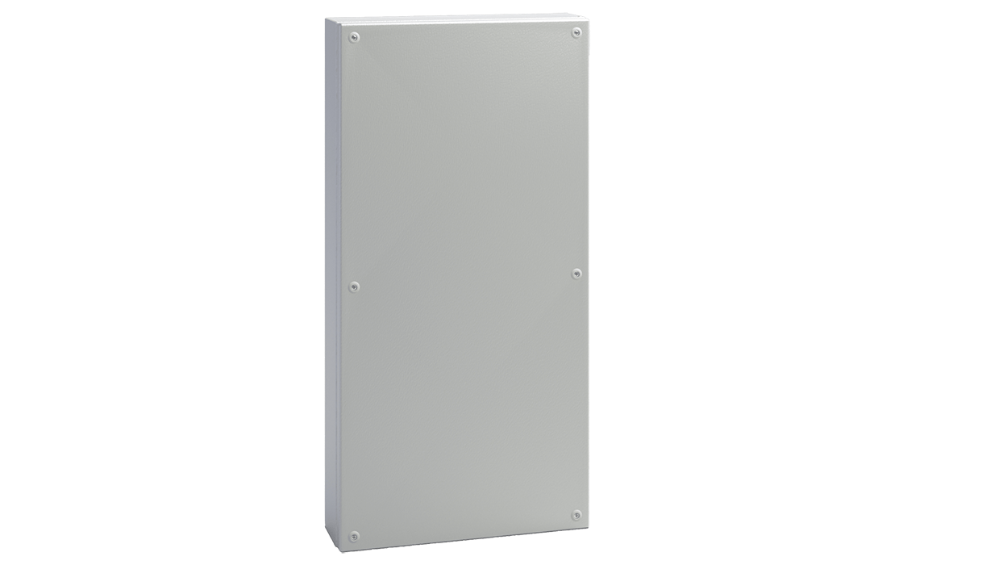

E GRAN .A - E GRAN .AV

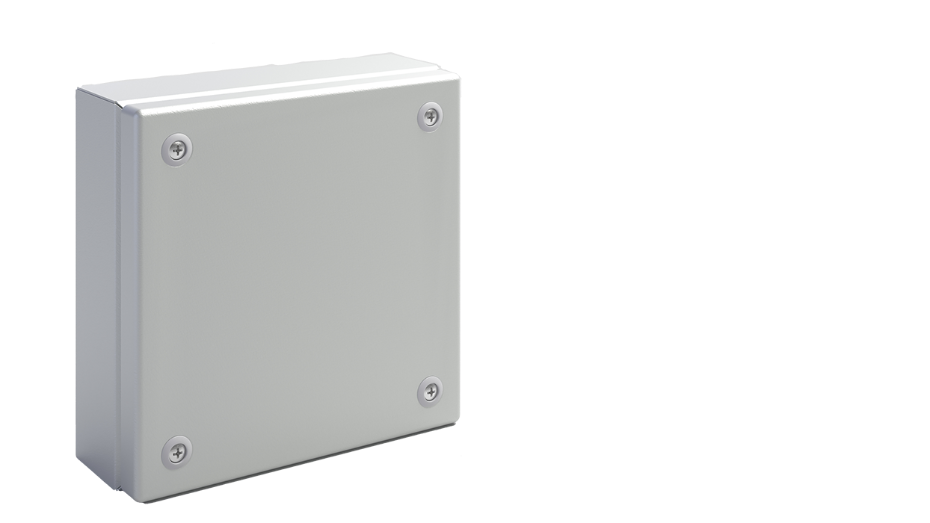

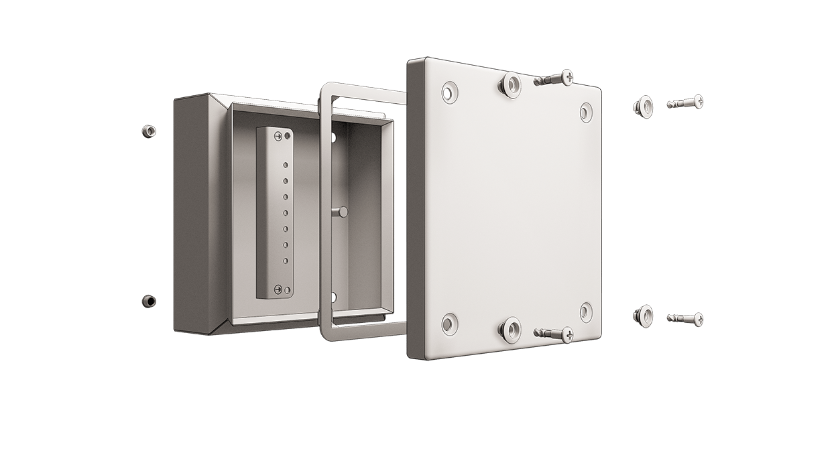

Junction boxes with screwed-in panel available in:

  • blank version (EG .A)

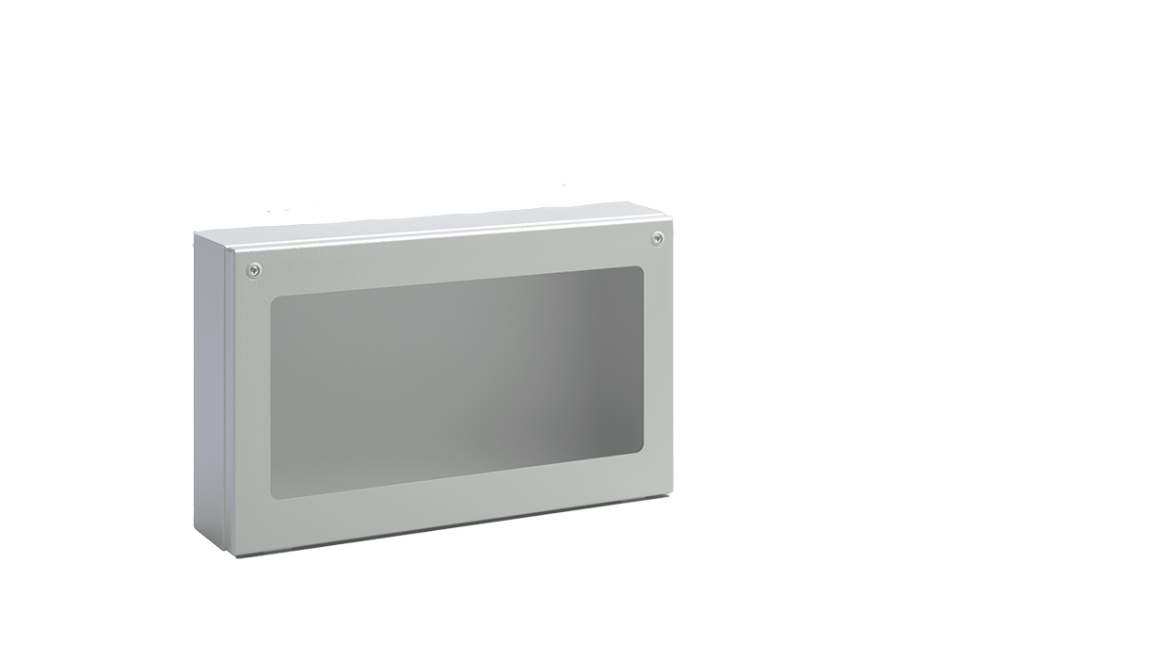

  • transparent version (EG .AV)

Materials:

  • enclosure: sheet steel DC01
  • blank panel: sheet steel DC01
  • transparent panel: plexiglass sheet
  • thickness: casing and blind panel 1.2mm, plexiglass sheet 3.0mm

Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.

Colour: textured RAL7035

Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained

Degree of protection:

  • blank panel version: IP66, NEMA/UL Type: 1, 12, 3R, 4
  • Plexiglass panel version: IP66, NEMA/UL Type: 1

Impact resistance degree: IK10

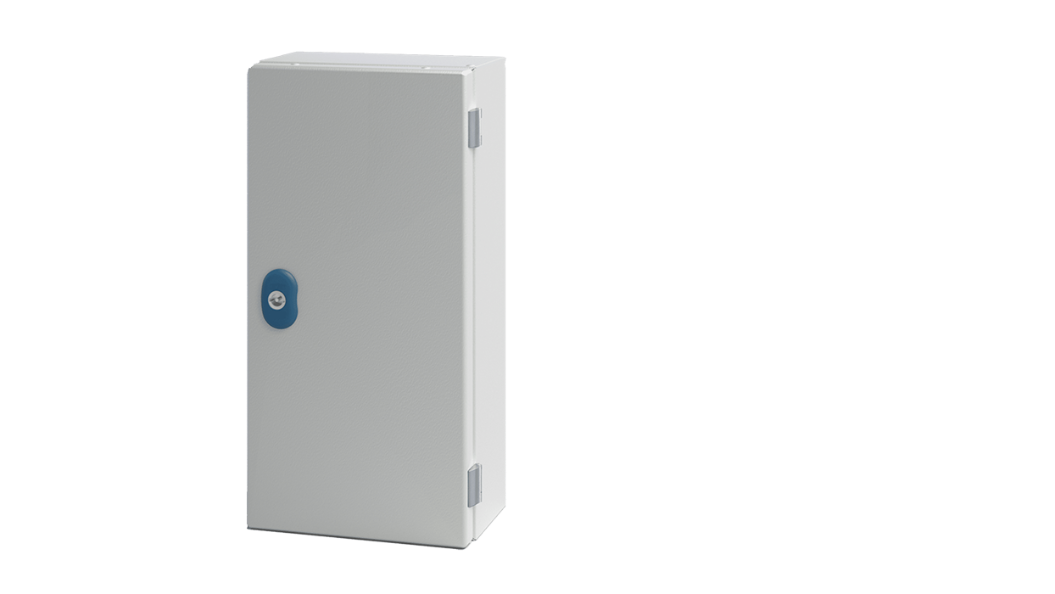

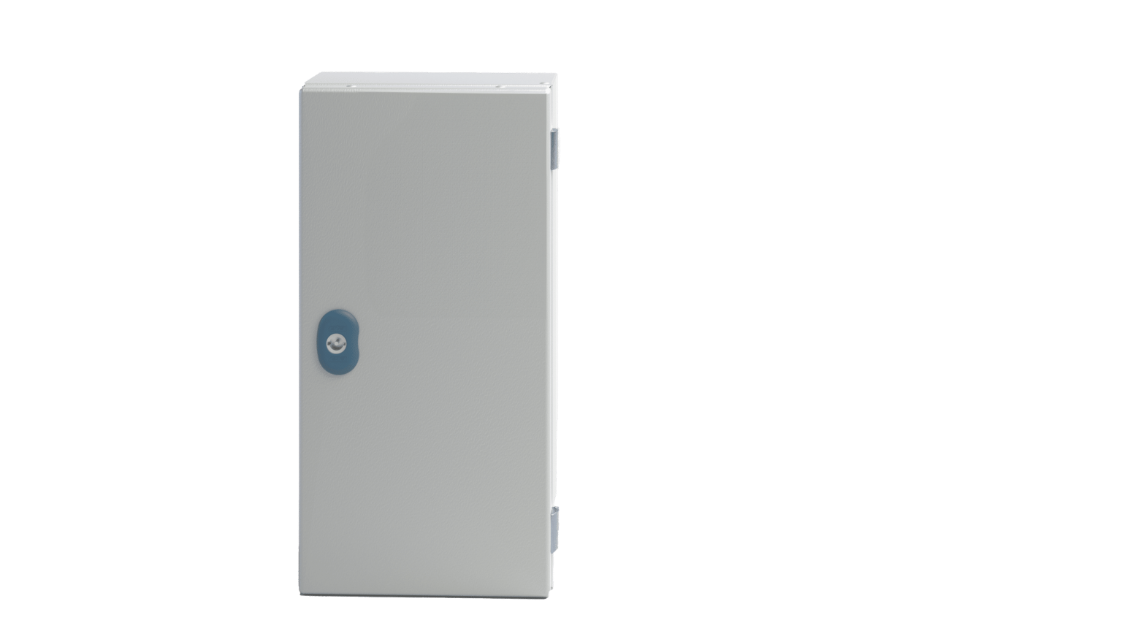

E GRAN .P

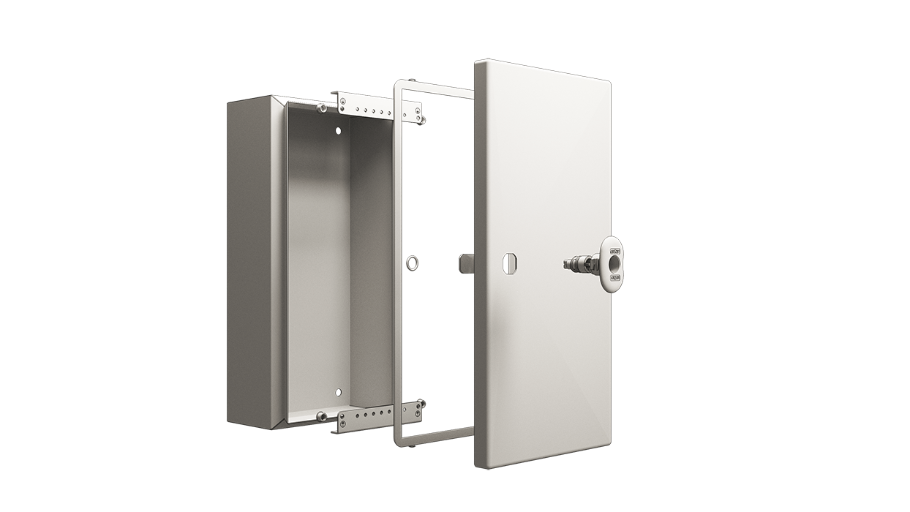

Junction boxes with blank door.

Materials:

  • enclosure and door: sheet steel DC01
  • hinges: nickel-plated zamak
  • thickness: casing and door 1.2mm

Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders

Colour:

  • enclosure and door: RAL7035 textured
  • closure system: RAL5020

Sealing gasket: two-component polyurethane foam, maintaining IP rating

Degree of protection: IP66

Impact resistance degree: IK10

E GRAN .F

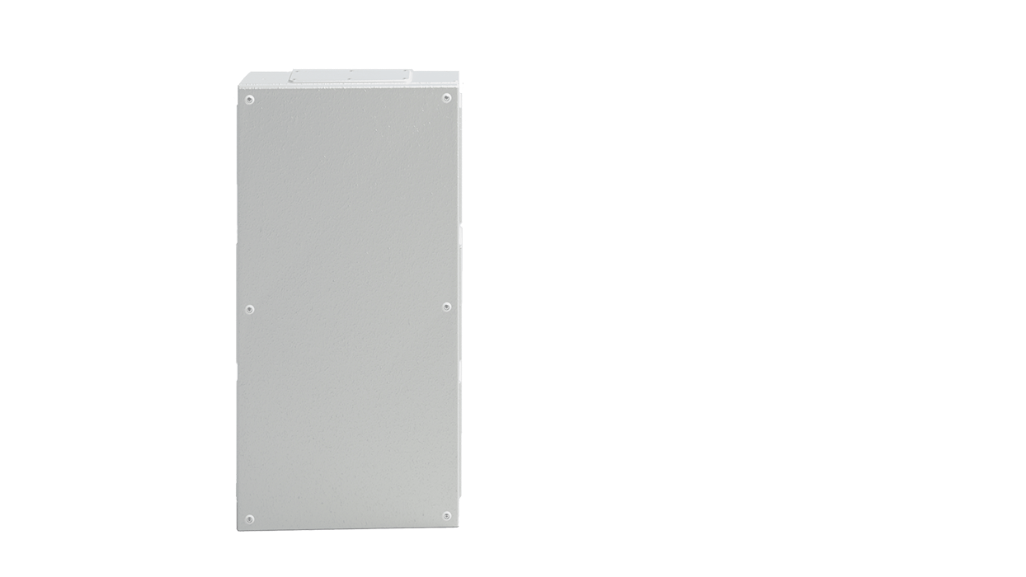

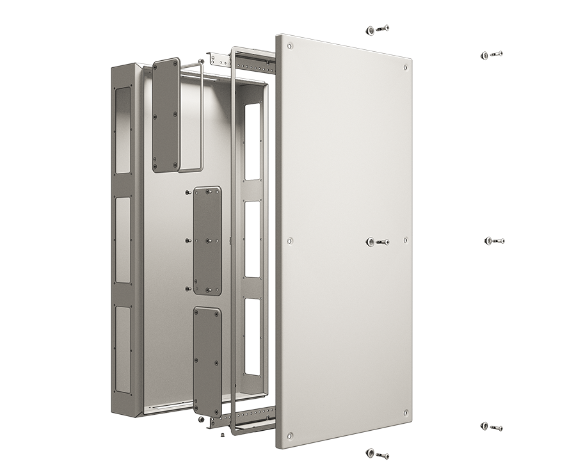

Junction boxes with flanges.

Materials:

  • enclosure and panel: sheet steel DC01
  • gland flanges: edged and rubberised, sheet steel DC01
  • thickness: casing, panel and flanges 1.2mm

Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.

Colour: textured RAL7035

Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained

Degree of protection: IP66, NEMA/UL Type: 1, 12, 3R, 4

Impact resistance degree: IK10

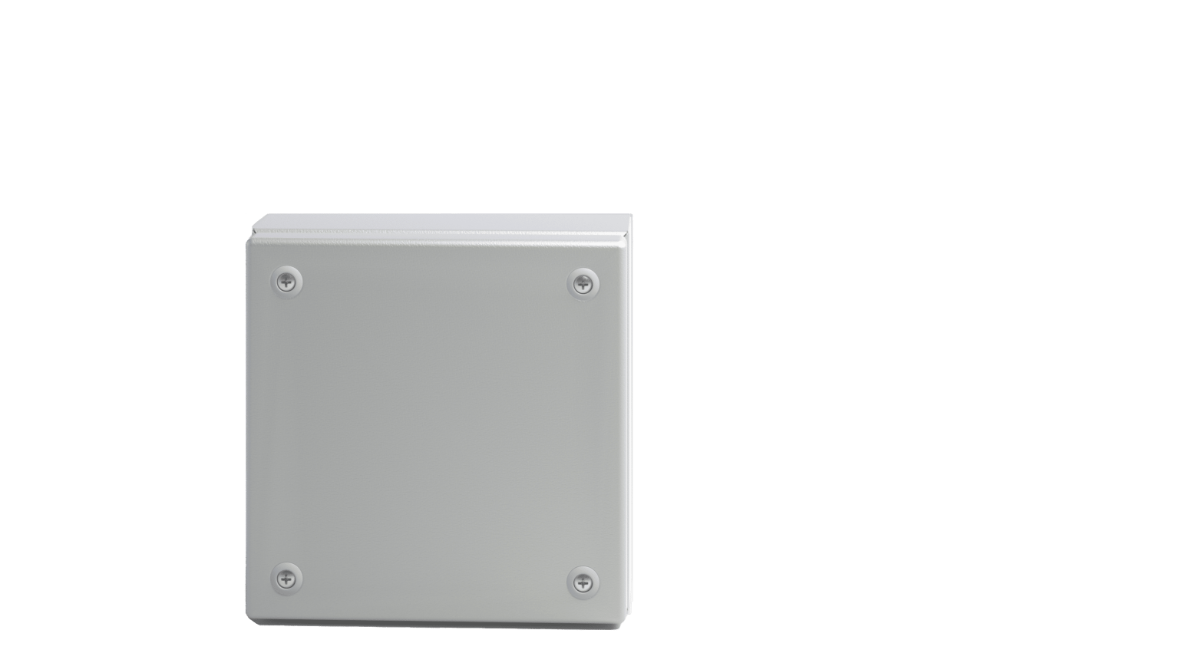

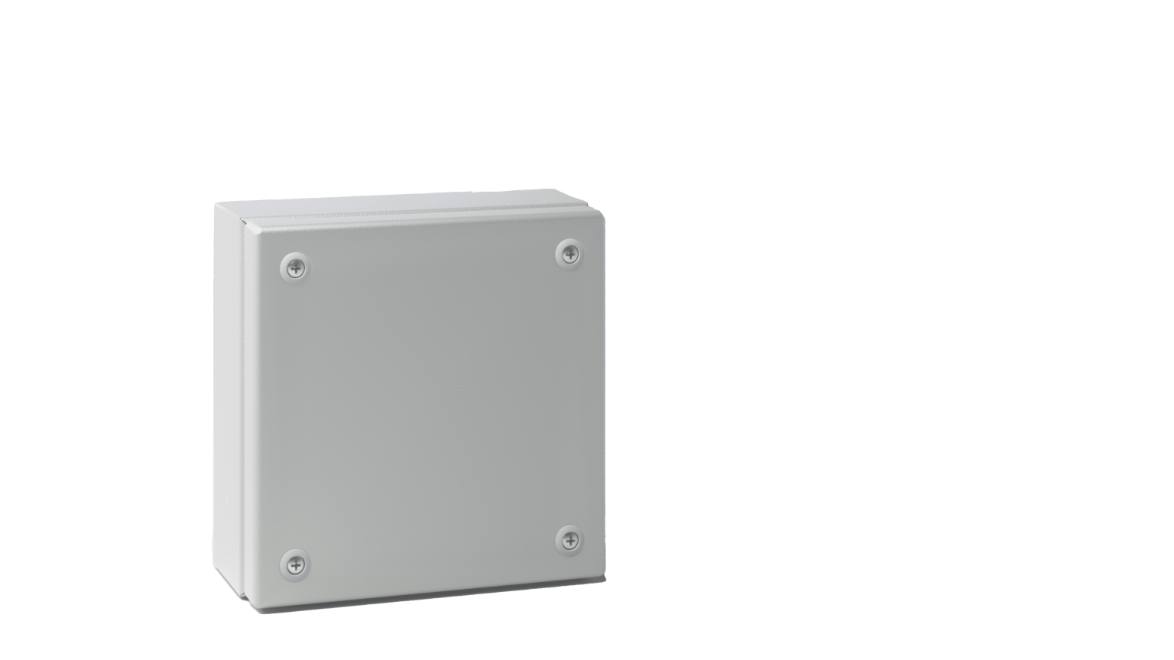

E GRAN . Z

Junction boxes with screwed-in panel, in EMC version. Solution designed to guarantee high protection of the switchboard's internal components from external electromagnetic fields.

Materials:

  • enclosure and panel: DC01 sheet steel with cold galvanisation and painted on the outside only
  • thickness: enclosure and blind panel 1.2mm,

Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.

Colour: RAL7035 textured

Degree of protection: NEMA/UL Type: 1

Complementary accessories

  • Internal mounting plate
  • Internal DIN profiles
  • Hinges
  • Wall mounting kit
Discover our accessories

Insights

  • Do you still own an SD junction box? The new E GRAN plate can also be mounted on SD junction boxes up to L=600
  • Also available for applications in harsh environments: E GRAN X , stainless steel

E GRAN Junction & Terminal Boxes

Code List

Filter by:

Configuration
Blank door
EMC version
Flanges
Screw cover
Screw plexiglas cover
Width (mm)
150
200
300
400
500
600
800
Height (mm)
150
200
300
400
500
Depth (mm)
80
120
Item #ConfigurationHeightWidthDepthEnvironmental ratingsAdd to Quote Cart
EG010108.AScrew cover15015080NEMA/UL TYPE 1, 12, 4; IP66
EG010108.ZEMC version15015080NEMA/UL TYPE 1
EG010112.AScrew cover150150120NEMA/UL TYPE 1, 12, 4; IP66
EG010112.ZEMC version150150120NEMA/UL TYPE 1
EG020112.AScrew cover150200120NEMA/UL TYPE 1, 12, 4; IP66
EG020112.ZEMC version150200120NEMA/UL TYPE 1
EG020208.AScrew cover20020080NEMA/UL TYPE 1, 12, 4; IP66
EG020208.PBlank door20020080NEMA/UL TYPE 1, 12, 4; IP66
EG020208.ZEMC version20020080NEMA/UL TYPE 1
EG020212.AScrew cover200200120NEMA/UL TYPE 1, 12, 4; IP66
EG020212.PBlank door200200120NEMA/UL TYPE 1, 12, 4; IP66
EG020212.ZEMC version200200120NEMA/UL TYPE 1
EG020308.PBlank door30020080NEMA/UL TYPE 1, 12, 4; IP66
EG020312.PBlank door300200120NEMA/UL TYPE 1, 12, 4; IP66
EG020408.PBlank door40020080NEMA/UL TYPE 1, 12, 4; IP66
EG020412.PBlank door400200120NEMA/UL TYPE 1, 12, 4; IP66
EG020512.PBlank door500200120NEMA/UL TYPE 1, 12, 4; IP66
EG030108.AScrew cover15030080NEMA/UL TYPE 1, 12, 4; IP66
EG030108.ZEMC version15030080NEMA/UL TYPE 1
EG030112.AScrew cover150300120NEMA/UL TYPE 1, 12, 4; IP66
EG030112.ZEMC version150300120NEMA/UL TYPE 1
EG030208.AScrew cover20030080NEMA/UL TYPE 1, 12, 4; IP66
EG030208.ZEMC version20030080NEMA/UL TYPE 1
EG030212.AScrew cover200300120NEMA/UL TYPE 1, 12, 4; IP66
EG030212.FFlanges200300120NEMA/UL TYPE 1, 12, 4; IP66
EG030212.ZEMC version200300120NEMA/UL TYPE 1
EG030308.AScrew cover30030080NEMA/UL TYPE 1, 12, 4; IP66
EG030308.ZEMC version30030080NEMA/UL TYPE 1
EG030312.AScrew cover300300120NEMA/UL TYPE 1, 12, 4; IP66
EG030312.FFlanges300300120NEMA/UL TYPE 1, 12, 4; IP66
EG030312.PBlank door300300120NEMA/UL TYPE 1, 12, 4; IP66
EG030312.ZEMC version300300120NEMA/UL TYPE 1
EG030412.PBlank door400300120NEMA/UL TYPE 1, 12, 4; IP66
EG040208.AScrew cover20040080NEMA/UL TYPE 1, 12, 4; IP66
EG040208.ZEMC version20020080NEMA/UL TYPE 1
EG040212.AScrew cover200200120NEMA/UL TYPE 1, 12, 4; IP66
EG040212.AVScrew plexiglas cover200200120IP66
EG040212.FFlanges200200120NEMA/UL TYPE 1, 12, 4; IP66
EG040212.ZEMC version150300120NEMA/UL TYPE 1
EG040312.AScrew cover300300120NEMA/UL TYPE 1, 12, 4; IP66
EG040312.FFlanges300300120NEMA/UL TYPE 1, 12, 4; IP66
EG040312.ZEMC version200300120NEMA/UL TYPE 1
EG040412.AScrew cover400300120NEMA/UL TYPE 1, 12, 4; IP66
EG040412.FFlanges400300120NEMA/UL TYPE 1, 12, 4; IP66
EG040412.ZEMC version300300120NEMA/UL TYPE 1
EG050208.AScrew cover20030080NEMA/UL TYPE 1, 12, 4; IP66
EG050208.ZEMC version20040080NEMA/UL TYPE 1
EG050212.AScrew cover200400120NEMA/UL TYPE 1, 12, 4; IP66
EG050212.FFlanges200400120NEMA/UL TYPE 1, 12, 4; IP66
EG050212.ZEMC version300400120NEMA/UL TYPE 1
EG050312.AScrew cover300400120NEMA/UL TYPE 1, 12, 4; IP66
EG050312.AVScrew plexiglas cover300400120IP66
EG050312.FFlanges300400120NEMA/UL TYPE 1, 12, 4; IP66
EG050312.ZEMC version400400120NEMA/UL TYPE 1
EG050412.AScrew cover400400120NEMA/UL TYPE 1, 12, 4; IP66
EG050412.ZEMC version200500120NEMA/UL TYPE 1
EG060208.AScrew cover20050080NEMA/UL TYPE 1, 12, 4; IP66
EG060208.ZEMC version30050080NEMA/UL TYPE 1
EG060212.AScrew cover200500120NEMA/UL TYPE 1, 12, 4; IP66
EG060212.AVScrew plexiglas cover200500120IP66
EG060212.FFlanges200500120NEMA/UL TYPE 1, 12, 4; IP66
EG060212.ZEMC version400500120NEMA/UL TYPE 1
EG060312.AScrew cover300500120NEMA/UL TYPE 1, 12, 4; IP66
EG060312.FFlanges300500120NEMA/UL TYPE 1, 12, 4; IP66
EG060312.ZEMC version200600120NEMA/UL TYPE 1
EG060412.AScrew cover400600120NEMA/UL TYPE 1, 12, 4; IP66
EG060412.FFlanges400600120NEMA/UL TYPE 1, 12, 4; IP66
EG060412.ZEMC version300600120NEMA/UL TYPE 1
EG080208.AScrew cover20060080NEMA/UL TYPE 1, 12, 4; IP66
EG080208.ZEMC version40060080NEMA/UL TYPE 1
EG080212.AScrew cover200600120NEMA/UL TYPE 1, 12, 4; IP66
EG080212.FFlanges200600120NEMA/UL TYPE 1, 12, 4; IP66
EG080212.ZEMC version200800120NEMA/UL TYPE 1
EG080312.AScrew cover300800120NEMA/UL TYPE 1, 12, 4; IP66
EG080312.ZEMC version300800120NEMA/UL TYPE 1
EG080412.AScrew cover400800120NEMA/UL TYPE 1, 12, 4; IP66
EG080412.FFlanges400800120NEMA/UL TYPE 1, 12, 4; IP66
EG080412.ZEMC version400800120NEMA/UL TYPE 1
