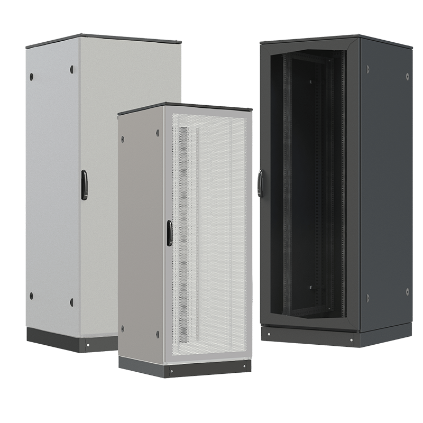

E NUX, ABACUS - Accessories | ETA Enclosures Sp. z o.o.

Accessories

Complete Your Solution with maximum Flexibility

Our range of accessories is designed to extend the functionality of modular cabinets, offering tailor-made solutions for every application requirement. From optimised space management to aesthetic and functional customisation, each element contributes to making the enclosure more efficient, secure and high-performance.

With a wide selection of compatible and complementary accessories, the accessories represent a fundamental added value for adapting each configuration to the project specifications, simplifying installation and enhancing the user experience.

Any special requests? Contact us

To complete your solution with maximum flexibility, you can choose from a wide range of accessories. These include:

Plates: front, side, partial, supplementary insertion, and more.

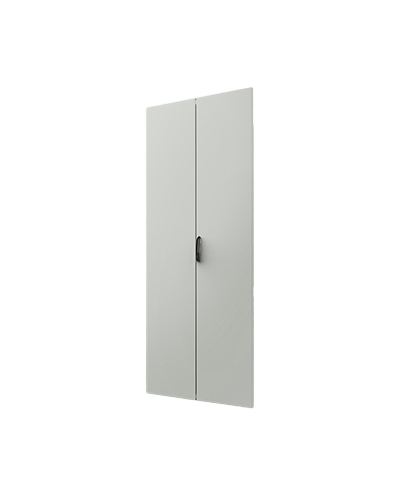

Doors and panels, with various types of locking systems
Plinths: modular, watertight, single or with vibration dampers

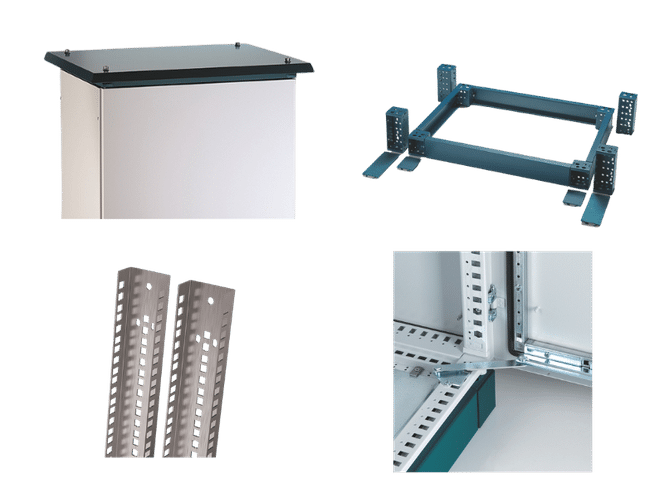

Complementary accessories: bottom, canopy, lifting systems, joining kits, cable compartment.

NEED A SPECIAL SOLUTION?

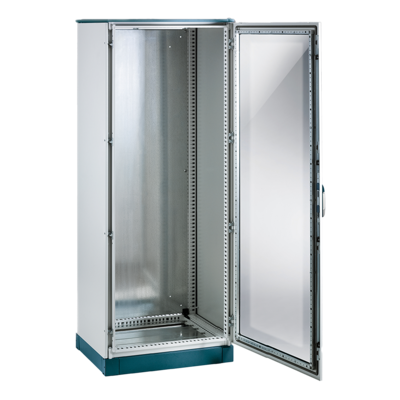

E NUX

PAINTED SHEET STEEL

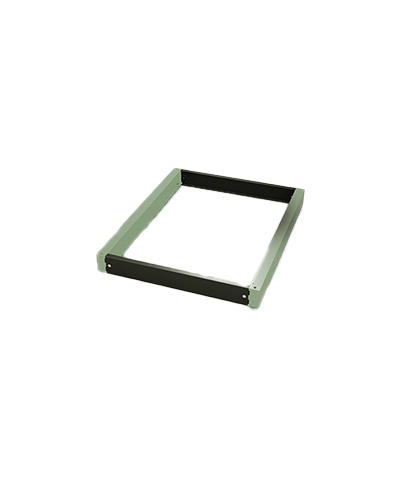

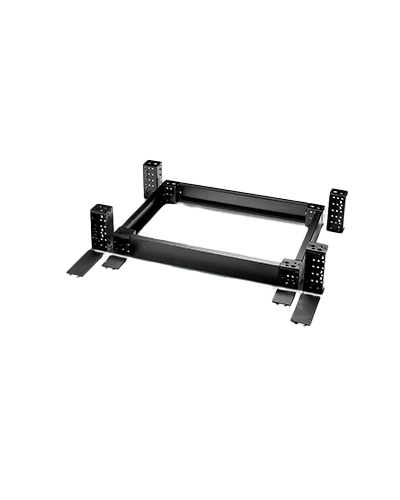

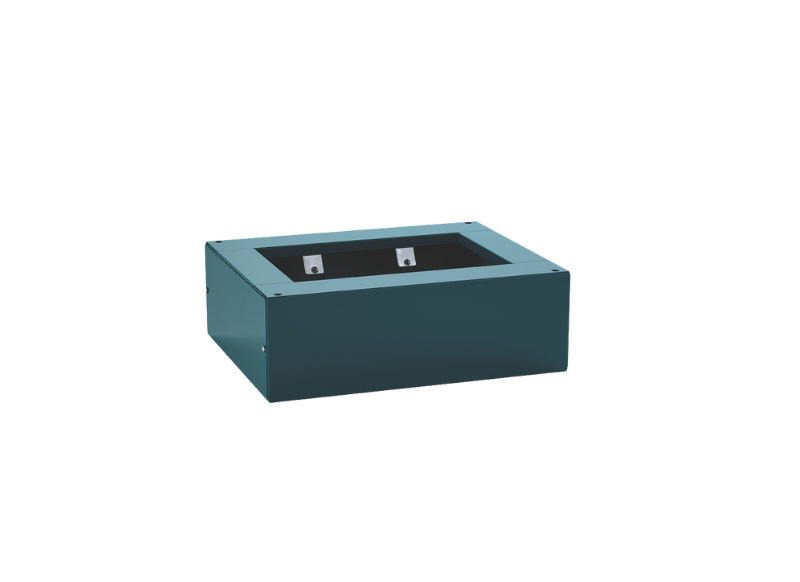

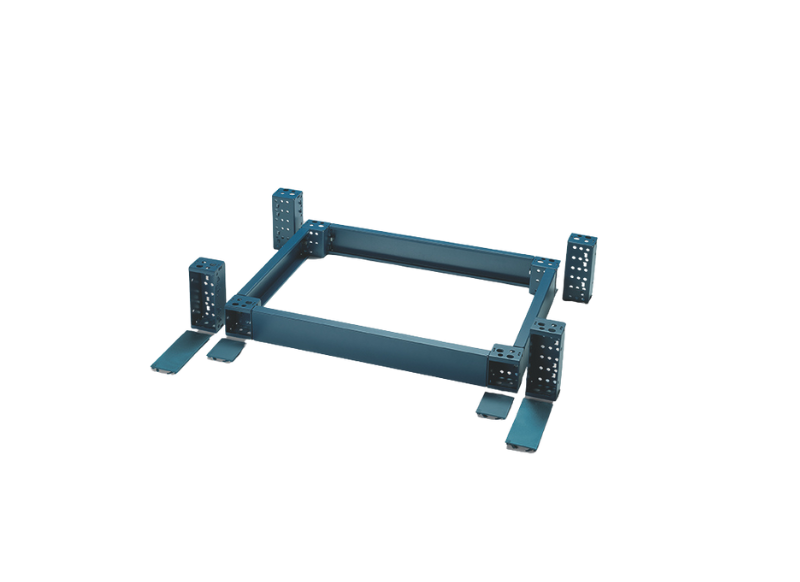

modular plinth

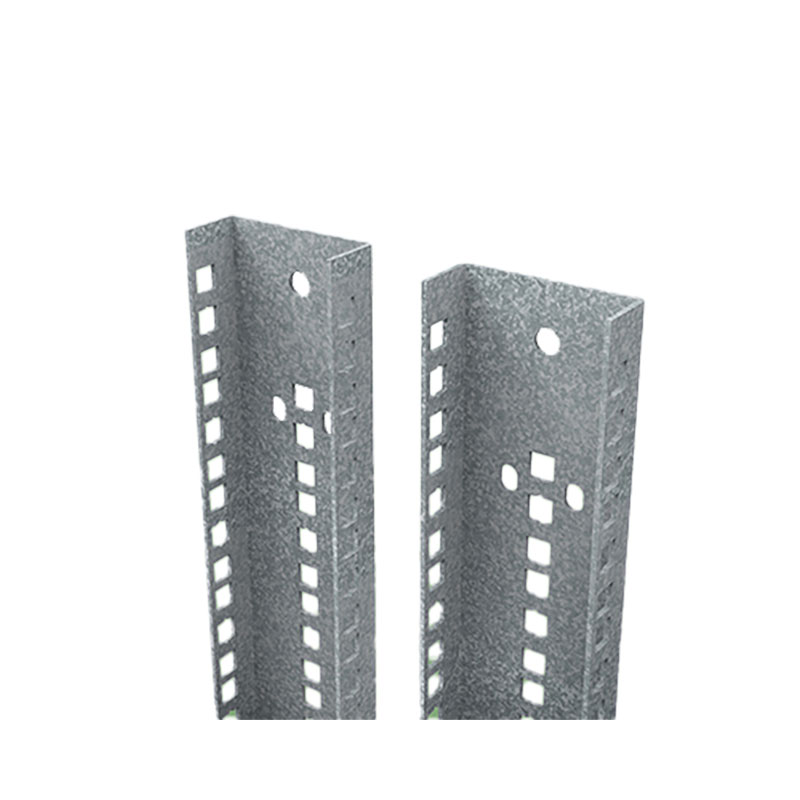

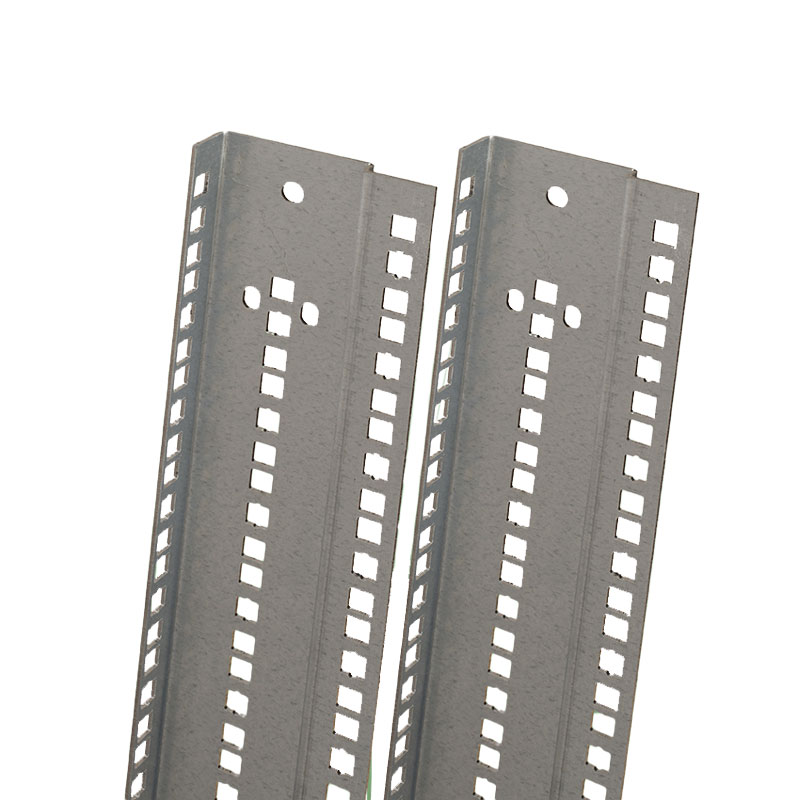

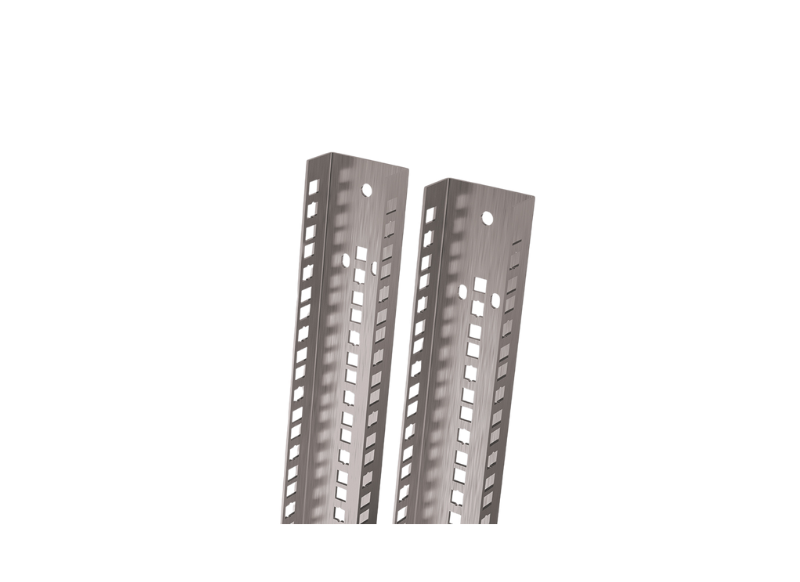

profiles

plinth (single piece)

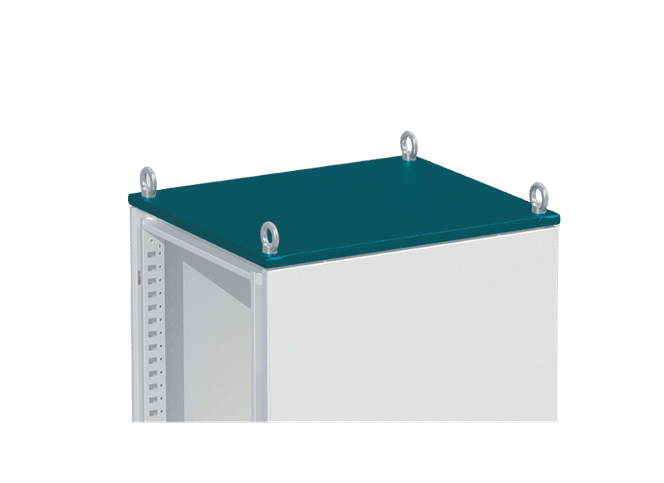

lifting eyebolts

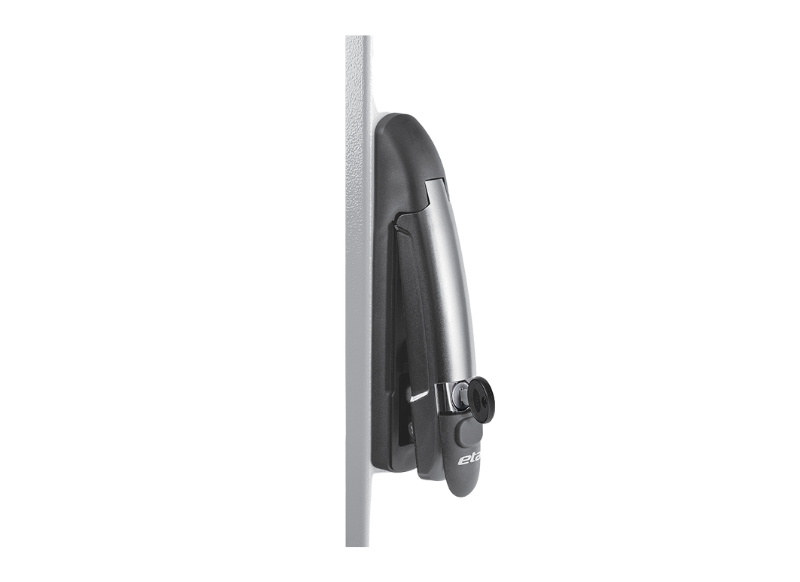

handle

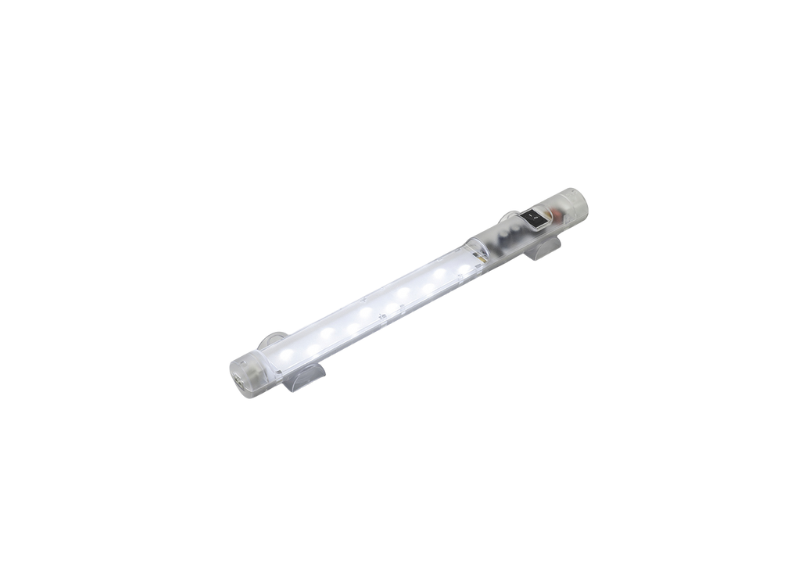

lamp

mounting plate

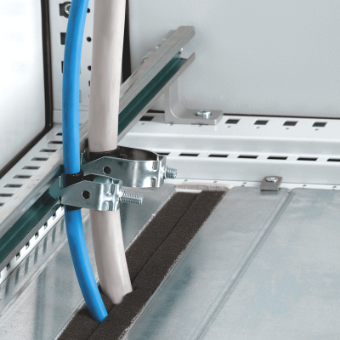

detail

inner door

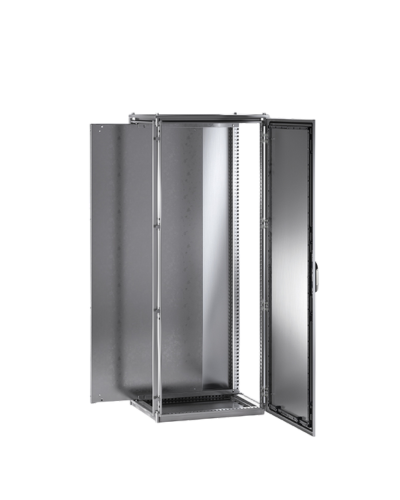

E NUX X

STAINLESS SHEET STEEL

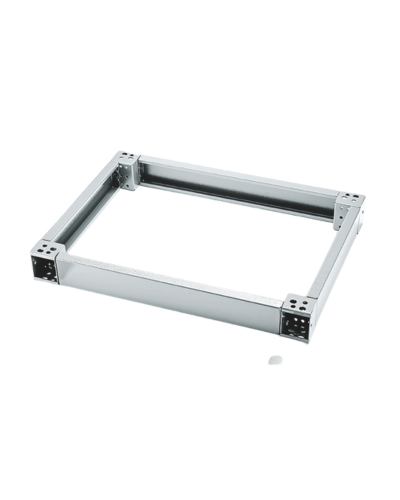

modular plinth

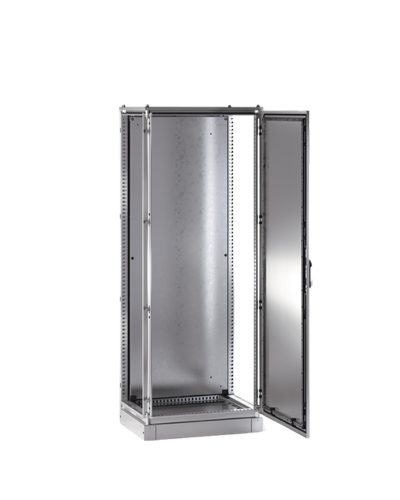

mounting plate

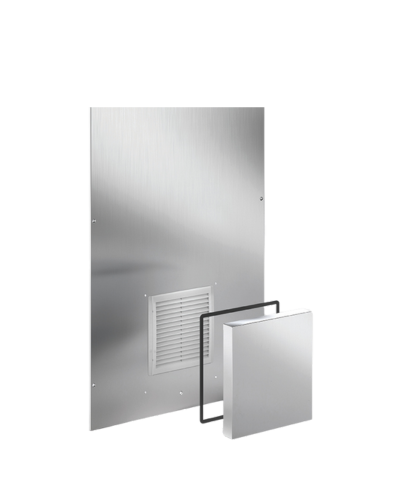

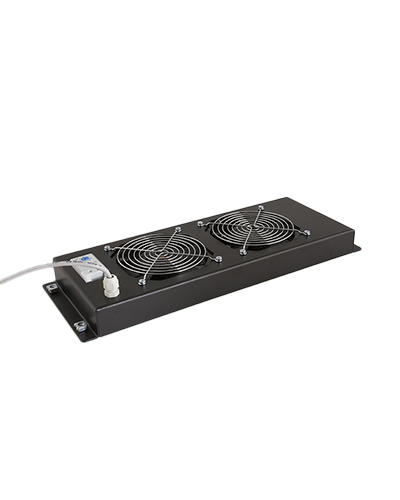

ventilation kit

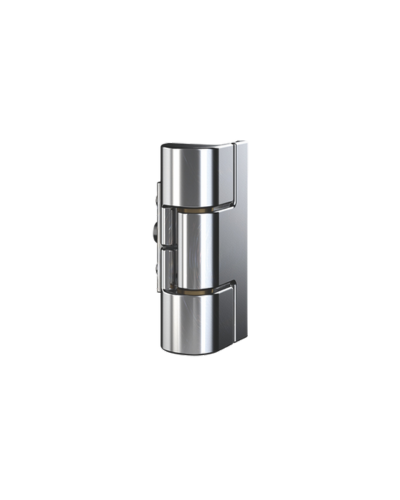

hinges

Modular and assembled cabinets

Accessories code list

Item #	Configuration	Height	Width	Depth
EUCR028060	19' Fixed Frame 28He	1252	1409
EUCR032060	19' Fixed Frame 32He	1429	1609
EUCR037060	19' Fixed Frame 37He	1652	1809
EUCR041060	19' Fixed Frame 41He	1829	2009
EUCR046060	19' Fixed Frame 46He	2052	2209
EUD1-040140	E NUX Blank Vert.Div.Panel 400X1400	1300	296	17
EUD1-040160	E NUX Blank Vert.Div.Panel 400X1600	1500	296	17
EUD1-040180	E NUX Blank Vert.Div.Panel 400X1800	1700	296	17
EUD1-040200	E NUX Blank Vert.Div.Panel 400X2000	1900	296	17
EUD1-050140	E NUX Blank Vert.Div.Panel 500X1400	1300	396	17
EUD1-050160	E NUX Blank Vert.Div.Panel 500X1600	1500	396	17
EUD1-050180	E NUX Blank Vert.Div.Panel 500X1800	1700	396	17
EUD1-050200	E NUX Blank Vert.Div.Panel 500X2000	1900	396	17
EUD1-050220	E NUX Blank Vert.Div.Panel 500X2200	2100	396	17
EUD1-060160	E NUX Blank Vert.Div.Panel 600X1600	1500	496	17
EUD1-060180	E NUX Blank Vert.Div.Panel 600X1800	1700	496	17
EUD1-060200	E NUX Blank Vert.Div.Panel 600X2000	1900	496	17
EUD1-060220	E NUX Blank Vert.Div.Panel 600X2200	2100	496	17
EUD1-080180	E NUX Blank Vert.Div.Panel 800X1800	1700	596	17
EUD1-080200	E NUX Blank Vert.Div.Panel 800X2000	1900	596	17
EUD1-080220	E NUX Blank Vert.Div.Panel 800X2200	2100	596	17
EUD2-050180	E NUX Punched Part. Panel 500X1800	1700	396	17
EUD2-050200	E NUX Punched Part. Panel 500X2000	1900	396	17
EUD2-060180	E NUX Punched Part. Panel 600X1800	1700	496	17
EUD2-060200	E NUX Punched Part. Panel 600X2000	1900	496	17
EUD2-080180	E NUX Punched Part. Panel 800X1800	1700	596	17
EUD2-080200	E NUX Punched Part. Panel 800X2000	1900	596	17
EUD3-050180	E NUX Inner Blank M. Plate 500X1800	1708	380	20
EUD3-050200	E NUX Inner Blank M. Plate 500X2000	1908	380	20
EUD3-060180	E NUX Inner Blank M. Plate 600X1800	1708	480	20
EUD3-060200	E NUX Inner Blank M. Plate 600X2000	1908	480	20
EUD3-080180	E NUX Inner Blank M. Plate 800X1800	1708	680	20
EUD3-080200	E NUX Inner Blank M. Plate 800X2000	1908	680	20
EUD4-050180	E NUX Punched Mount. Plate 500X1800	1708	380	20
EUD4-050200	E NUX Punched Mount. Plate 500X2000	1908	380	20
EUD4-060180	E NUX Punched Mount. Plate 600X1800	1708	480	20
EUD4-060200	E NUX Punched Mount. Plate 600X2000	1908	480	20
EUD4-060220	E NUX Punched Mount. Plate 600X2200	2209	480	20
EUD4-080180	E NUX Punched Mount. Plate 800X1800	1708	680	20
EUD4-080200	E NUX Punched Mount. Plate 800X2000	1908	680	20
EUDO-060010	Horizontal Plate E NUX 600X105/125	123	496	33
EUDO-060015	Horizontal Plate E NUX 600X155/175	173	496	33
EUDO-060025	Horizontal Plate E NUX 600X255/275	273	496	33
EUDO-060040	Horizontal Plate E NUX 600X355/375	373	496	33
EUDO-060050	Horizontal Plate E NUX 600X455/475	473	496	33
EUDO-060060	Horizontal Plate E NUX 600X555	573	496	33
EUDO-060070	Horizontal Plate E NUX 600X655	673	496	33
EUDO-060080	Horizontal Plate E NUX 600X755	773	496	33
EUDO-080010	Horizontal Plate E NUX 800X105/125	123	696	33
EUDO-080015	Horizontal Plate E NUX 800X155/175	173	696	33
EUDO-080025	Horizontal Plate E NUX 800X255/275	273	696	33
EUDO-080040	Horizontal Plate E NUX 800X355/375	373	696	33
EUDO-080050	Horizontal Plate E NUX 800X455/475	473	696	33
EUDO-080060	Horizontal Plate E NUX 800X555	573	696	33
EUDO-080070	Horizontal Plate E NUX 800X655	673	696	33
EUDO-080080	Horizontal Plate E NUX 800X755	773	696	33
EUFC-040040	E NUX Blank Bottom 400X400		400	400
EUFC-040050	E NUX Blank Bottom 400X500		400	500
EUFC-040060	E NUX Blank Bottom 400X600		400	600
EUFC-040080	E NUX Blank Bottom 400X800		400	800
EUFC-040100	E NUX Blank Bottom 400X1000		400	1000
EUFC-060040	E NUX Blank Bottom 600X400		600	400
EUFC-060050	E NUX Blank Bottom 600X500		600	500
EUFC-060060	E NUX Blank Bottom 600X600		600	600
EUFC-060080	E NUX Blank Bottom 600X800		600	800
EUFC-060100	E NUX Blank Bottom 600X1000		600	1000
EUFC-080040	E NUX Blank Bottom 800X400		800	400
EUFC-080050	E NUX Blank Bottom 800X500		800	500
EUFC-080060	E NUX Blank Bottom 800X600		800	600
EUFC-080080	E NUX Blank Bottom 800X800		800	800
EUFC-080100	E NUX Blank Bottom 800X1000		800	1000
EUFC-100040	E NUX Blank Bottom 1000X400		1000	400
EUFC-100050	E NUX Blank Bottom 1000X500		1000	500
EUFC-100060	E NUX Blank Bottom 1000X600		1000	600
EUFC-100080	E NUX Blank Bottom 1000X800		1000	800
EUFC-120040	E NUX Blank Bottom 1200X400		1200	400
EUFC-120050	E NUX Blank Bottom 1200X500		1200	500
EUFC-120060	E NUX Blank Bottom 1200X600		1200	600
EUFC-120080	E NUX Blank Bottom 1200X800		1200	800
EUFC-120100	E NUX Blank Bottom 1200X1000		1200	1000
EUFC-140040	E NUX Blank Bottom 1400X400		1400	400
EUFC-140050	E NUX Blank Bottom 1400X500		1400	500
EUFC-140060	E NUX Blank Bottom 1400X600		1400	600
EUFC-140080	E NUX Blank Bottom 1400X800		1400	800
EUFC-160040	E NUX Blank Bottom 1600X400		1600	400
EUFC-160050	E NUX Blank Bottom 1600X500		1600	500
EUFC-160060	E NUX Blank Bottom 1600X600		1600	600
EUFC-160080	E NUX Blank Bottom 1600X800		1600	800
EUFI040140	E NUX Lateral Panels 400X1400	1378	362	30
EUFI040160	E NUX Lateral Panels 400X1600	1578	362	40
EUFI040160S	E NUX Single Lateral Panel 400X1600	1578	362	30
EUFI040180	E NUX Lateral Panels 400X1800	1778	362	40
EUFI040180M	E NUX Modular Lateral Panels 400X1800	1778	362	30
EUFI040180S	E NUX Single Lateral Panel 400X1800	1778	362	30
EUFI040200	E NUX Lateral Panels 400X2000	1978	362	40
EUFI040200M	E NUX Modular Lateral Panels 400X2000	1978	362	30
EUFI040200S	E NUX Single Lateral Panel 400X2000	1978	362	30
EUFI040220	E NUX Lateral Panels 400X2200	2178	362	30
EUFI040220M	E NUX Modular Lateral Panels 400X2200	2178	362	30
EUFI040220S	E NUX Single Lateral Panel 400X2200	2178	362	15
EUFI050140	E NUX Lateral Panels 500X1400	1378	462	40
EUFI050140S	E NUX Single Lateral Panel 500X1400	1378	462	30
EUFI050160	E NUX Lateral Panels 500X1600	1578	462	40
EUFI050160S	E NUX Single Lateral Panel 500X1600	1578	462	30
EUFI050180	E NUX Lateral Panels 500X1800	1778	462	40
EUFI050180C	E NUX 180° Lateral Panels 500X1800	1800	500	30
EUFI050180M	E NUX Modular Lateral Panels 500X1800	1800	500	30
EUFI050180S	E NUX Single Lateral Panel 500X1800	1778	462	30
EUFI050200	E NUX Lateral Panels 500X2000	1978	462	30
EUFI050200M	E NUX Modular Lateral Panels 500X2000	1978	462	30
EUFI050200S	E NUX Single Lateral Panel 500X2000	1978	462	40
EUFI050220	E NUX Lateral Panels 500X2200	2178	462	40
EUFI050220M	E NUX Modular Lateral Panels 500X2200	2178	462	30
EUFI050220S	E NUX Single Lateral Panel 500X2200	2178	462	30
EUFI060160	E NUX Lateral Panels 600X1600	1578	562	40
EUFI060160S	E NUX Single Lateral Panel 600X1600	1578	562	30
EUFI060180	E NUX Lateral Panels 600X1800	1778	562	40
EUFI060180M	E NUX Modular Lateral Panels 600X1800	1778	562	40
EUFI060180S	E NUX Single Lateral Panel 600X1800	1778	562	30
EUFI060200	E NUX Lateral Panels 600X2000	2000	562	40
EUFI060200EMC	E NUX Emc Lateral Panels 600X2000	1978	562	40
EUFI060200M	E NUX Modular Lateral Panels 600X2000	2000	562	40
EUFI060200S	E NUX Single Lateral Panel 600X2000	2000	562	30
EUFI060220	E NUX Lateral Panels 600X2200	2200	562	40
EUFI060220M	E NUXmodular Lateral Panels 600X2200	2200	562	40
EUFI060220S	E NUX Single Lateral Panel 600X2200	2200	562	30
EUFI080140	E NUX Lateral Panels 800X1400	1378	762	40
EUFI080160	E NUX Lateral Panels 800X1600	1578	762	40
EUFI080180	E NUX Lateral Panels 800X1800	1778	762	40
EUFI080180M	E NUX Modular Lateral Panels 800X1800	1778	762	40
EUFI080180S	E NUX Single Lateral Panel 800X1800	1778	762	30
EUFI080200	E NUX Lateral Panels 800X2000	1978	762	40
EUFI080200M	E NUX Modular Lateral Panels 800X2000	1978	762	40
EUFI080200S	E NUX Single Lateral Panel 800X2000	1978	762	30
EUFI080220	E NUX Lateral Panels 800X2200	2178	762	40
EUFI080220M	E NUX Modular Lateral Panels 800X2200	2178	762	30
EUFI080220S	E NUX Single Lateral Panel 800X2200	2178	762	30
EUFI100160	Pannelli Laterali E NUX 1000X1601	1600	962	40
EUFI100160S	E NUX Single Lateral Panel 1000X1600	1600	962	20
EUFI100200	E NUX Lateral Panels 1000X2000	1968	962	38
EUFI100200S	E NUX Single Lateral Panel 1000X2000	1978	962	19
EUFL-000400	Side Covers Euz3 Plinth D=400	190	400	2
EUFL-000500	Side Covers Euz3 Plinth D=500	190	500	2
EUFL-000600	Side Covers Euz3 Plinth D=600	190	600	2
EUFL-000800	Side Covers Euz3 Plinth D=800	190	800	2
EUFV000500	E NUX Cable Entry Side Covers D=500		500
EUFV000600	E NUX Cable Entry Side Covers D=600		600
EUFV000800	E NUX Cable Entry Side Covers D=800		800
EUFX-040180	E NUX Lateral Panels 400X1800	1768	368	38
EUFX-040180H	E NUX Lateral Panels 400X1800	1768	368	38
EUFX-050180	E NUX Lateral Panels 500X1800	1768	468	38
EUFX-050180H	E NUX Lateral Panels 500X1800	1768	468	38
EUFX-050200	E NUX Lateral Panels 500X2000	2000	500	30
EUFX-050200H	E NUX Lateral Panels 500X2000	2000	500	30
EUFX-060180	E NUX Lateral Panels 600X1800	1768	568	38
EUFX-060180H	E NUX Lateral Panels 600X1800	1768	568	38
EUFX-060200	E NUX Lateral Panels 600X2000	1768	568	38
EUFX-060200H	E NUX Lateral Panels 600X2000	1768	568	38
EUFX-080200H	E NUX Lateral Panels 800X2000	1968	768	38
EUKU-001	E NUX Joining Kit H=1400	210	80	35
EUKU-002	E NUX Joinining Kit	50	280	230
EUKU-002X	Aisi316 E NUX Joining Kit
EUKU-003	E NUX Reinforcing Brackets
EUKU-005	E NUX Joining Kit H=1400
EUKU-006	E NUX Joining Kit
EUKU-007	Joining Kit Eurp + E NUX
EUKU-008	Fast-Fixing E NUX Joining Kit
EULC-040050	E NUX Dividing Panel 400X500		400	510
EULC-040060	E NUX Dividing Panel 400X600		400	610
EULC-040080	E NUX Dividing Panel 400X800		400	810
EULC-060040	E NUX Dividing Panel 600X400		600	410
EULC-060050	E NUX Dividing Panel 600X500		600	510
EULC-060060	E NUX Dividing Panel 600X600		600	610
EULC-060080	E NUX Dividing Panel 600X800		600	810
EULC-080040	E NUX Dividing Panel 800X400		800	410
EULC-080050	E NUX Dividing Panel 800X500		800	510
EULC-080060	E NUX Dividing Panel 800X600		800	610
EULC-080080	E NUX Dividing Panel 800X800		800	810
EULC-100040	E NUX Dividing Panel 1000X400		1000	410
EULC-100050	E NUX Dividing Panel 1000X500		1000	510
EULC-100060	E NUX Dividing Panel 1000X600		1000	610
EULC-100080	E NUX Dividing Panel 1000X800		1000	810
EULC-120040	E NUX Dividing Panel 1200X400		1200	410
EULC-120050	E NUX Dividing Panel 1200X500		1200	510
EULC-120060	E NUX Dividing Panel 1200X600		1200	610
EULC-120080	E NUX Dividing Panel 1200X800		1200	810
EULE000600	Desk For E NUX Multiple Doors W=600		600
EULE000800	Desk For E NUX Multiple Doors W=800		800

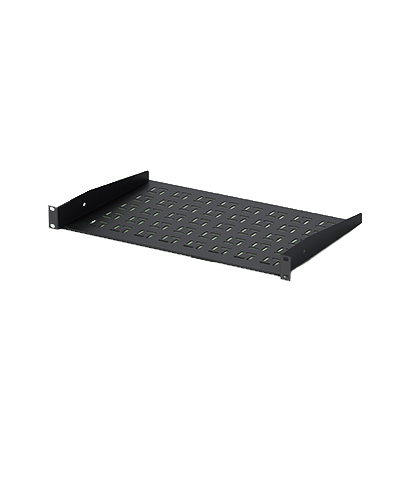

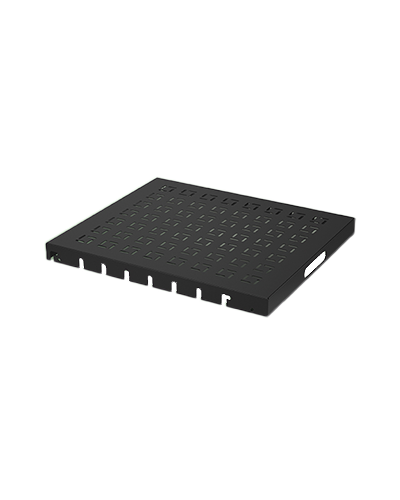

EUME000600AL	E NUX Shelf Al W=600		600
EUME000800AL	E NUX Shelf Al W=800		800
EUME001200AL	E NUX Shelf Al W=1200		1200
EUME001600AL	E NUX Shelf Al W=1600		1600
EUMT001800	E NUX Structural Uprights H=1800	1697	100	50
EUMT002000	E NUX Structural Uprights H=2000	1897	100	50
EUP0080	Blank Screwed Trim Panels 24He	1200
EUP0081	Blank Screwed Trim Panels 29He	1400
EUP0082	Blank Screwed Trim Panels 33He	1600
EUP0083	Blank Screwed Trim Panels 38He	1800
EUP0084	Blank Screwed Trim Panels 42He	2000
EUP0085	Blank Screwed Trim Panels 47He	2200
EUP0090	Multi-Function Closing Panels 24He	1200
EUP0091	Multi-Function Closing Panels 29He	1400
EUP0092	Multi-Function Closing Panels 33He	1600
EUP0093	Multi-Function Closing Panels 38He	1800
EUP0094	Multi-Function Closing Panels 42He	2000
EUP0095	Multi-Function Closing Panels 47He	2200
EUP0130	Blank Hinged Trim Panels 24He	1200
EUP0131	Blank Hinged Trim Panels 29 He	1400
EUP0132	Blank Hinged Trim Panels 33 He	1600
EUP0133	Blank Hinged Trim Panels 38 He	1800
EUP0134	Blank Hinged Trim Panels 42 He	2000
EUP0135	Blank Hinged Trim Panels 47He	2200

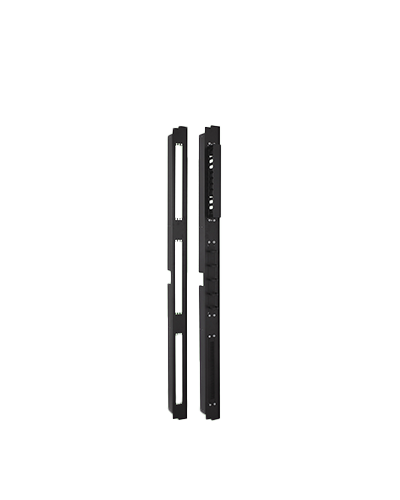

EUP0140	Closing Trim Panels With Rings 24He	1200
EUP0141	Closing Trim Panels With Rings 29He	1400
EUP0142	Closing Trim Panels With Rings 33He	1600
EUP0143	Closing Trim Panels With Rings 38He	1800
EUP0144	Closing Trim Panels With Rings 42He	2000
EUP0145	Closing Trim Panels With Rings 47He	2200
EUPA-040160	E NUX Front Ins.Mount.Plate 400X1600	1480	285	26
EUPA-040180	E NUX Front Ins.Mount.Plate 400X1800	1680	285	26
EUPA-040200	E NUX Front Ins.Mount.Plate 400X2000	1880	285	26
EUPA-040220	E NUX Front Ins.Mount.Plate 400X2200	2080	285	26
EUPA-060140	E NUX Front Ins.Mount.Plate 600X1400	1280	485	26
EUPA-060160	E NUX Front Ins.Mount.Plate 600X1600	1480	485	26
EUPA-060180	E NUX Front Ins.Mount.Plate 600X1800	1680	485	26
EUPA-060200	E NUX Front Ins.Mount.Plate 600X2000	1880	485	26
EUPA-060220	E NUX Front Ins.Mount.Plate 600X2200	2080	485	26
EUPA-080140	E NUX Front Ins.Mount.Plate 800X1400	1280	685	26
EUPA-080160	E NUX Front Ins.Mount.Plate 800X1600	1480	685	26
EUPA-080180	E NUX Front Ins.Mount.Plate 800X1800	1680	685	26
EUPA-080200	E NUX Front Ins.Mount.Plate 800X2000	1880	685	26
EUPA-080220	E NUX Front Ins.Mount.Plate 800X2200	2080	685	26
EUPA-100160	E NUX Front Ins.Mount.Plate 1000X1600	1480	885	26
EUPA-100180	E NUX Front Ins.Mount.Plate 1000X1800	1680	885	26
EUPA-100200	E NUX Front Ins.Mount.Plate 1000X2000	1880	885	26
EUPA-100220	E NUX Front Ins.Mount.Plate 1000X2200	2080	885	26
EUPA-120080	E NUX Front Ins.Mount.Plate 1200X800	680	1085	26
EUPA-120100	E NUX Front Ins.Mount.Plate 1200X1000	880	1085	26
EUPA-120140	E NUX Front Ins.Mount.Plate 1200X1400	1280	1085	26
EUPA-120160	E NUX Front Ins.Mount.Plate 1200X1600	1480	1085	26
EUPA-120180	E NUX Front Ins.Mount.Plate 1200X1800	1680	1085	26
EUPA-120200	E NUX Front Ins.Mount.Plate 1200X2000	1880	1085	26
EUPA-120220	E NUX Front Ins.Mount.Plate 1200X2200	2080	1085	26
EUPA-140100	E NUX Front Ins.Mount.Plate 1400X1000	1000	1400	20
EUPA-140200	E NUX Front Ins.Mount.Plate 1400X2000	2000	1400	20
EUPA-160100	E NUX Front Ins.Mount.Plate 1600X1800	880	1485	26
EUPA-160140	E NUX Front Ins.Mount.Plate 1600X1400	1280	1485	26
EUPA-160180	E NUX Front Ins.Mount.Plate 1600X1800	1680	1485	26
EUPA-160200	E NUX Front Ins.Mount.Plate 1600X2000	1880	1485	26
EUPD060020	E NUX Modular Blank Door 600X200	200	600	20
EUPD060020M	Modular Door With Slots 600X200	200	600	20
EUPD060030	E NUX Modular Blank Door 600X300	300	600	20
EUPD060040	E NUX Modular Blank Door 600X400	400	600	20
EUPD060040M	Modular Door With Slots 600X400	400	600	20
EUPD060050	E NUX Modular Blank Door 600X500	500	600	20
EUPD060060	E NUX Modular Blank Door 600X600	600	600	20
EUPD060070	E NUX Modular Blank Door 600X700	700	600	20
EUPD060080	E NUX Modular Blank Door 600X800	800	600	20
EUPD060090	E NUX Modular Blank Door 600X900	900	600	20
EUPD060100	E NUX Modular Blank Door 600X1000	1000	600	20
EUPD060120	E NUX Modular Blank Door 600X1200	1200	600	20
EUPD080020	E NUX Modular Blank Door 800X200	200	800
EUPD080020M	Modular Door With Slots 800X200	200	800
EUPD080030	E NUX Modular Blank Door 800X300	300	800
EUPD080040	E NUX Modular Blank Door 800X400	400	800
EUPD080040M	Modular Door With Slots 800X400	400	800
EUPD080050	E NUX Modular Blank Door 800X500	500	800
EUPD080060	E NUX Modular Blank Door 800X600	600	800
EUPD080070	E NUX Modular Blank Door 800X700	700	800
EUPD080080	E NUX Modular Blank Door 800X800	800	800
EUPD080090	E NUX Modular Blank Door 800X900	900	800
EUPD080100	E NUX Modular Blank Door 800X1000	1000	800
EUPD080120	E NUX Modular Blank Door 800X1200	1200	800
EUPF040140	E NUX Lateral Door 400X1400	1400	400
EUPF040160	E NUX Lateral Door 400X1600	1600	400
EUPF040180	E NUX Lateral Door 400X1800	1800	400
EUPF040200	E NUX Lateral Door 400X2000	2000	400
EUPF040220	E NUX Lateral Door 400X2200	2200	400
EUPF050120	E NUX Lateral Door 500X1200	1200	500
EUPF050140	E NUX Lateral Door 500X1400	1400	500
EUPF050160	E NUX Lateral Door 500X1600	1600	500
EUPF050180	E NUX Lateral Door 500X1800	1800	500
EUPF050200	E NUX Lateral Door 500X2000	2000	500
EUPF050220	E NUX Lateral Door 500X2200	2200	500
EUPF060140	E NUX Lateral Door 600X1400	1400	600
EUPF060160	E NUX Lateral Door 600X1600	1600	600
EUPF060180	E NUX Lateral Door 600X1800	1800	600
EUPF080180	E NUX Lateral Door 800X1800	1800	800
EUPF080200	E NUX Lateral Door 800X2000	2000	800
EUPF080220	E NUX Lateral Door 800X2200	2200	800
EUPF100120	E NUX Lateral Door 1000X1200	1200	1000
EUPF100140	E NUX Lateral Door 1000X1400	1400	1000
EUPH060020	Modular Punched Panel 600X200
EUPH080020	Modular Punched Panel 800X200
EUPI060140	E NUX Inner Door 600X1400	1267	467
EUPI060160	E NUX Inner Door 1600X600	1467	467
EUPI060180	E NUX Inner Door 600X1800	1667	467
EUPI060200	E NUX Inner Door 600X2000	1867	467
EUPI060220	E NUX Inner Door 600X2200	2067	467
EUPI080140	E NUX Inner Door 800X1400	1267	467
EUPI080160	E NUX Inner Door 800X1600	1467	667
EUPI080180	E NUX Inner Door 800X1800	4667	667
EUPI080200	E NUX Inner Door 800X2000	1867	667
EUPI080220	E NUX Inner Door 800X2200	2067	667
EUPI100160	E NUX Inner Door 1000X160O	1467	667
EUPI100180	E NUX Inner Door 1000X1800	1667	867
EUPI100200	E NUX Inner Door 1000X2000	1867	867
EUPI100220	E NUX Inner Door 1000X2200	2067	867
EUPIX-060180	E NUX Inner Door 600X1800	1720	590	80
EUPIX-060180H	E NUX Inner Door 600X1800	1720	590	80
EUPIX-060200	E NUX Inner Door 600X2000	1920	590	80
EUPIX-060200H	E NUX Inner Door 600X2000	1920	590	80
EUPIX-080180	E NUX Inner Door 800X1800	1720	790	80
EUPIX-080180H	E NUX Inner Door 800X1800	1720	790	80
EUPIX-080200	E NUX Inner Door 800X2000	1920	790	80
EUPIX-080200H	E NUX Inner Door 800X2000	1920	790	80
EUPIX-100180	E NUX Inner Door 1000X1800	1720	990	80
EUPIX-100180H	E NUX Inner Door 1000X1800	1720	990	80
EUPIX-100200	E NUX Inner Door 1000X2000	1920	990	80
EUPIX-100200H	E NUX Inner Door 1000X2000	1920	990	80
EUPL-040160	E NUX Side Ins.Mount.Plate 400X1600	1485	400	28
EUPL-040180	E NUX Side Ins.Mount.Plate 400X1800	1685	400	28
EUPL-040200	E NUX Side Ins.Mount.Plate 400X2000	1885	400	28
EUPL-040220	E NUX Side Ins.Mount.Plate 400X2200	2085	400	28
EUPL-060140	E NUX Side Ins.Mount.Plate 600X1400	1285	600	28
EUPL-060160	E NUX Side Ins.Mount.Plate 600X1600	1485	600	28
EUPL-060180	E NUX Side Ins.Mount.Plate 600X1800	1685	600	28
EUPL-060200	E NUX Side Ins.Mount.Plate 600X2000	1885	600	28
EUPL-060220	E NUX Side Ins.Mount.Plate 600X2200	2085	600	28
EUPL-080140	E NUX Side Ins.Mount.Plate 800X1400	1285	800	28
EUPL-080160	E NUX Side Ins.Mount.Plate 800X1600	1485	800	28
EUPL-080180	E NUX Side Ins.Mount.Plate 800X1800	1685	800	28
EUPL-080200	E NUX Side Ins.Mount.Plate 800X2000	1885	800	28
EUPL-080220	E NUX Side Ins.Mount.Plate 800X2200	2085	800	28
EUPL-100160	E NUX Side Ins.Mount.Plate 1000X1600	1485	1000	28
EUPL-100180	E NUX Side Ins.Mount.Plate 1000X1800	1685	1000	28
EUPL-100200	E NUX Side Ins.Mount.Plate 1000X2000	1885	1000	28
EUPL-100220	E NUX Side Ins.Mount.Plate 1000X2200	2085	1000	28
EUPL-120140	E NUX Side Ins.Mount.Plate 1200X1400	1285	1200	28
EUPL-120160	E NUX Side Ins.Mount.Plate 1200X1600	1485	1200	28
EUPL-120180	E NUX Side Ins.Mount.Plate 1200X1800	1685	1200	28
EUPL-120200	E NUX Side Ins.Mount.Plate 1200X2000	1885	1200	28
EUPL-120220	E NUX Side Ins.Mount.Plate 1200X2200	2085	1200	28
EUPL-140200	E NUX Side Ins.Mount.Plate 1400X2000	1885	700	80
EUPL-160140	E NUX Side Ins.Mount.Plate 1600X1400	1285	800	80
EUPL-160200	E NUX Side Ins.Mount.Plate 1600X2000	1885	800	80
EUPM060020	Modular Blank Panel 600X200	200	600
EUPM060020M	Punched Modular Panel 600X200	200	600
EUPM060030	Modular Blank Panel 600X300	300	600
EUPM060040	Modular Blank Panel 600X400	400	600
EUPM060040M	Punched Modular Panel 600X400	400	600
EUPM060050	Modular Blank Panel 600X500	500	600
EUPM060060	Modular Blank Panel 600X600	600	600
EUPM060070	Modular Blank Panel 600X700	700	600
EUPM060080	Modular Blank Panel 600X800	800	600
EUPM080020	Modular Blank Panel 800X200	200	800
EUPM080020M	Punched Modular Panel 800X200	200	800
EUPM080030	Modular Blank Panel 800X300	300	800
EUPM080040	Modular Blank Panel 800X400	400	800
EUPM080040M	Punched Modular Panel 800X400	400	800
EUPM080050	Modular Blank Panel 800X500	500	800
EUPM080060	Modular Blank Panel 800X600	600	800
EUPM080070	Modular Blank Panel 800X700	700	800
EUPM080080	Modular Blank Panel 800X800	800	800
EUPN000600	E NUX Al Panel W=600	198	594	25
EUPN000800	E NUX Al Panel W=800	198	794	25
EUPN001200	E NUX Al Panel W=1200	198	1194	25
EUPN-001400	E NUX Intermediate M.Plate H=1400	1286	111	23
EUPN001600	E NUX Al Panel W=1600	198	1594	25
EUPN-001600	E NUX Intermediate M.Plate H=1600	1486	111	23
EUPN-001800	E NUX Intermediate M.Plate H=1800	1686	111	23
EUPN-002000	E NUX Intermediate M.Plate H=2000	1886	111	23
EUPN-002200	E NUX Intermediate M.Plate H=2200	2086	111	23
EUPO030160	E NUX Blank Door+Uprights 300X1600	1570	310	90
EUPO030180	E NUX Blank Door+Uprights 300X1800	1770	310	90
EUPO030200	E NUX Blank Door+Uprights 300X2000	1970	310	90
EUPO030220	E NUX Blank Door+Uprights 300X2200	2170	310	90
EUPO040160	E NUX Blank Door+Uprights 400X1600	1570	410	90
EUPO040180	E NUX Blank Door+Uprights 400X1800	1770	410	90
EUPO040200	E NUX Blank Door+Uprights 400X2000	1970	410	90
EUPO040220	E NUX Blank Door+Uprights 400X2200	2200	400	90
EUPO060140	E NUX Blank Door+Uprights 600X1400	1370	600	90
EUPO060160	E NUX Blank Door+Uprights 600X1600	1570	600	90
EUPO060160SM	E NUX Blank Door 600X1600	1570	600	90
EUPO060180	E NUX Blank Door+Uprights 600X1800	1770	600	90
EUPO060200	E NUX Blank Door+Uprights 600X2000	2000	600	40
EUPO060220	E NUX Blank Door+Uprights 600X2200	2170	600	90
EUPO080140	E NUX Blank Door+Uprights 800X1400	1370	800	90
EUPO080160	E NUX Blank Door+Uprights 800X1600	1570	800	90
EUPO080160DP	E NUX Blank Door+Uprights 800X1600	1570	800	90
EUPO080180	E NUX Blank Door+Uprights 800X1800	1770	800	90
EUPO080200	E NUX Blank Door+Uprights 800X2000	2070	800	90
EUPO080220	E NUX Blank Door+Uprights 800X2200	2170	800	90
EUPO080220DP	E NUX Double Door+Upright. 800X2200	2170	810	90
EUPO100160	E NUX Blank Door+Uprights 1000X1600	1570	1010	90
EUPO100160DP	E NUX Double Door+Upright. 1000X1600	1570	1010	90
EUPO100180	E NUX Blank Door+Uprights 1000X1800	1770	1010	90
EUPO100180DP	E NUX Blank Door+Uprights 1000X1800	1770	1010	90
EUPO100200	E NUX Blank Door+Uprights 1000X2000	1960	1010	90
EUPO100200DP	E NUX Blank Door+Uprights 1000X2000	1960	1010	90
EUPO100220	E NUX Blank Door+Uprights 1000X2200	2160	1010	90
EUPO100220DP	E NUX Blank Door+Uprights 1000X2200	2160	1010	90
EUPO120140	E NUX Blank Door+Uprights 1200X1400	1360	600	140
EUPO120160	E NUX Blank Door+Uprights 1200X1600	1560	600	140
EUPO120180	E NUX Blank Door+Uprights 1200X1800	1760	600	140
EUPO120200	E NUX Blank Door+Uprights 1200X2000	1960	600	140
EUPO120220	E NUX Blank Door+Uprights 1200X2200	2160	600	140
EUPO140160	E NUX Blank Door+Uprights 1400X1600	1570	770	140
EUPO140200	E NUX Blank Door+Uprights 1400X2000	1970	770	140
EUPO160140	E NUX Blank Door+Uprights 1600X1400	1400	1600	30
EUPO160200	E NUX Blank Door+Uprights 1600X2000	1970	870	130
EUPR-060060	E NUX Partial Mount.Plate 600X600	600	485	26
EUPR-060080	E NUX Partial Mount.Plate 600X800	800	485	26
EUPR-060120	E NUX Partial Mount.Plate 600X1200	1200	485	26
EUPR-080060	E NUX Partial Mount.Plate 800X600	600	685	26
EUPR-080080	E NUX Partial Mount.Plate 800X800	800	685	26
EUPR-080120	E NUX Partial Mount.Plate 800X1200	1200	685	26
EUPR-120080	E NUX Partial Mount.Plate 1200X800	800	1085	26
EUPR-160080	E NUX Partial Mount.Plate 1600X800	800	1485	26
EUPS-040160	E NUX Supplementary M.Plate 400X1600	1435	280	29
EUPS-040180	E NUX Supplementary M.Plate 400X1800	1635	280	29
EUPS-040200	E NUX Supplementary M.Plate 400X2000	1835	280	29
EUPS-040220	E NUX Supplementary M.Plate 400X2200	2035	280	29
EUPS-060140	E NUX Supplementary M.Plate 600X1400	1235	480	29
EUPS-060160	E NUX Supplementary M.Plate 600X1600	1435	480	29
EUPS-060180	E NUX Supplementary M.Plate 600X1800	1635	480	29
EUPS-060200	E NUX Supplementary M.Plate 600X2000	1835	480	29
EUPS-060220	E NUX Supplementary M.Plate 600X2200	2035	480	29
EUPS-080140	E NUX Supplementary M.Plate 800X1400	1235	680	29
EUPS-080160	E NUX Supplementary M.Plate 800X1600	1435	680	29
EUPS-080180	E NUX Supplementary M.Plate 800X1800	1635	680	29
EUPS-080200	E NUX Supplementary M.Plate 800X2000	1835	680	29
EUPS-080220	E NUX Supplementary M.Plate 800X2200	2035	680	29
EUPS-100160	E NUX Supplementary M.Plate 1000X1600	1435	880	29
EUPS-100180	E NUX Supplementary M.Plate 1000X1800	1635	880	29
EUPS-100200	E NUX Supplementary M.Plate 1000X2000	1835	880	29
EUPS-100220	E NUX Supplementary M.Plate 1000X2200	2035	880	29
EUPU-060020	Modular Mounting Plate 600X200	165	490
EUPU-060030	Modular Mounting Plate 600X300	265	490
EUPU-060040	Modular Mounting Plate 600X400	365	490
EUPU-060050	Modular Mounting Plate 600X500	465	490
EUPU-060060	Modular Mounting Plate 600X600	565	490
EUPU-060070	Modular Mounting Plate 600X700	665	490
EUPU-060080	Modular Mounting Plate 600X800	765	490
EUPU-060090	Modular Mounting Plate 600X900	865	490
EUPU-060100	Modular Mounting Plate 600X1000	965	490
EUPU-060120	Modular Mounting Plate 600X1200	1165	490
EUPU-080020	Modular Mounting Plate 800X200	165	690
EUPU-080030	Modular Mounting Plate 800X300	265	690
EUPU-080040	Modular Mounting Plate 800X400	365	690
EUPU-080050	Modular Mounting Plate 800X500	465	690
EUPU-080060	Modular Mounting Plate 800X600	565	690
EUPU-080070	Modular Mounting Plate 800X700	665	690
EUPU-080080	Modular Mounting Plate 800X800	765	690
EUPU-080090	Modular Mounting Plate 800X900	865	690
EUPU-080100	Modular Mounting Plate 800X1000	965	690
EUPU-080120	Modular Mounting Plate 800X1200	1165	690
EUPV060140	E NUX Glazed Door+Uprights 600X1400	1570	610	90
EUPV060160	E NUX Glazed Door+Uprights 600X1600	1670	610	90
EUPV060180	E NUX Glazed Door+Uprights 600X1800	1770	610	90
EUPV060200	E NUX Glazed Door+Uprights 600X2000	1970	610	90
EUPV060220	E NUX Glazed Door+Uprights 600X2200	2170	610	90
EUPV080140	E NUX Glazed Door+Uprights 800X1400	1370	810	90
EUPV080160	E NUX Glazed Door+Uprights 800X1600	1570	810	90
EUPV080180	E NUX Glazed Door+Uprights 800X1800	1770	810	90
EUPV080200	E NUX Glazed Door+Uprights 800X2000	2000	800	30
EUPV080220	E NUX Glazed Door+Uprights 800X2200	1970	810	90
EUPV100160	E NUX Glazed Door+Uprights 1000X1600	1970	810	90
EUPV100180	E NUX Glazed Door+Uprights 1000X1800	1770	1010	90
EUPV100200	E NUX Glazed Door+Uprights 1000X2000	1970	1010	90
EUPV100220	E NUX Glazed Door+Uprights 1000X2200	2170	1010	90
EUPZ-040040	E NUX Partial Mount. Plate 400X400	285	285	26
EUPZ-040050	E NUX Partial Mount. Plate 400X500	385	285	26
EUPZ-040060	E NUX Partial Mount. Plate 400X600	485	285	26
EUPZ-040070	E NUX Partial Mount. Plate 400X700	585	285	26
EUPZ-040080	E NUX Partial Mount. Plate 400X800	685	285	26
EUPZ-040090	E NUX Partial Mount. Plate 400X900	785	285	26
EUPZ-040100	E NUX Partial Mount. Plate 400X1000	885	285	26
EUPZ-040110	E NUX Partial Mount. Plate 400X1100	985	285	26
EUPZ-040120	E NUX Partial Mount. Plate 400X1200	1085	285	26
EUPZ-060050	E NUX Partial Mount. Plate 600X500	385	485	26
EUPZ-060060	E NUX Partial Mount. Plate 600X600	485	485	26
EUPZ-060070	E NUX Partial Mount. Plate 600X700	585	485	26
EUPZ-060080	E NUX Partial Mount. Plate 600X800	685	485	26
EUPZ-060090	E NUX Partial Mount. Plate 600X900	785	485	26
EUPZ-060100	E NUX Partial Mount. Plate 600X1000	885	485	26
EUPZ-060110	E NUX Partial Mount. Plate 600X1100	985	485	26
EUPZ-060120	E NUX Partial Mount. Plate 600X1200	1085	485	26
EUPZ-080050	E NUX Partial Mount. Plate 800X500	385	685	26
EUPZ-080070	E NUX Partial Mount. Plate 800X700	585	685	26
EUPZ-080080	E NUX Partial Mount. Plate 800X800	685	685	26
EUPZ-080090	E NUX Partial Mount. Plate 800X900	785	685	26
EUPZ-080100	E NUX Partial Mount. Plate 800X1000	885	685	26
EUPZ-080110	E NUX Partial Mount. Plate 800X1100	985	685	26
EUPZ-080120	E NUX Partial Mount. Plate 800X1200	1085	685	26
EUPZ-100050	E NUX Partial Mount. Plate 1000X500	385	885	26
EUPZ-100070	E NUX Partial Mount. Plate 1000X700	585	885	26
EUPZ-100090	E NUX Partial Mount. Plate 1000X900	785	885	26
EUPZ-100100	E NUX Partial Mount. Plate 1000X1000	885	885	26
EUPZ-100110	E NUX Partial Mount. Plate 1000X1100	985	885	26
EUPZ-100120	E NUX Partial Mount. Plate 1000X1200	1085	885	26
EUPZ-120050	E NUX Partial Mount. Plate 1200X500	385	1085	26
EUPZ-120070	E NUX Partial Mount. Plate 1200X700	585	1085	26
EUPZ-120090	E NUX Partial Mount. Plate 1200X900	785	1085	26
EUPZ-120110	E NUX Partial Mount. Plate 1200X1100	985	1085	26
EUPZ-120120	E NUX Partial Mount. Plate 1200X1200	1085	1085	26
EURE030160	E NUX Rear Panel+Uprights 300X1600	1600	300	40
EURE030180	E NUX Rear Panel+Uprights 300X1800	1800	300	40
EURE030200	E NUX Rear Panel+Uprights 300X2000	2000	300	40
EURE030220	E NUX Rear Panel+Uprights 300X2200	2200	300	40
EURE040160	E NUX Rear Panel+Uprights 400X1600	1600	400	40
EURE040180	E NUX Rear Panel+Uprights 400X1800	1778	400	20
EURE040200	E NUX Rear Panel+Uprights 400X2000	1978	400	20
EURE040220	E NUX Rear Panel+Uprights 400X2200	2200	400	20
EURE060140	E NUX Rear Panel+Uprights 600X1400	1378	600	20
EURE060160	E NUX Rear Panel+Uprights 600X1600	1578	600	40
EURE060180	E NUX Rear Panel+Uprights 600X1800	1800	600	40
EURE060200	E NUX Rear Panel+Uprights 600X2000	1978	600	40
EURE060220	E NUX Rear Panel+Uprights 600X2200	2178	600	40
EURE080140	E NUX Rear Panel+Uprights 800X1400	1378	800	40
EURE080160	E NUX Rear Panel+Uprights 800X1600	1578	800	40
EURE080180	E NUX Rear Panel+Uprights 800X1800	1778	800	40
EURE080200	E NUX Rear Panel+Uprights 800X2000	1978	800	40
EURE080220	E NUX Rear Panel+Uprights 800X2200	2179	800	20
EURE100160	E NUX Rear Panel+Uprights 1000X1600	1578	997	140
EURE100180	E NUX Rear Panel+Uprights 1000X1800	1778	997	140
EURE100200	E NUX Rear Panel+Uprights 1000X2000	1978	997	140
EURE100220	E NUX Rear Panel+Uprights 1000X2200	2178	997	140
EURE120140	E NUX Rear Panel+Uprights 1200X1400	1378	650	140
EURE120160	E NUX Rear Panel+Uprights 1200X1600	1578	650	140
EURE120180	E NUX Rear Panel+Uprights 1200X1800	1779	650	140
EURE120200	E NUX Rear Panel+Uprights 1200X2000	1978	650	140
EURE120220	E NUX Rear Panel+Uprights 1200X2200	2178	650	140
EURE140200	E NUX Rear Panel+Uprights 1400X2000	2000	1400	40
EURE160140	E NUX Rear Panel+Uprights 1600X1400	1400	800	140
EURE160180	E NUX Rear Panel+Uprights 1600X1800	1778	800	140
EURE160200	E NUX Rear Panel+Uprights 1600X2000	1978	850	140
EURI000365	Fixed/Extractable Shelf D=365		400	365
EURI000465	Fixed/Extractable Shelf D=465		400	465
EURI000500SM	Extractable Shelf For 19
EURI000565	Fixed/Extractable Shelf D=565		400	565
EURI000665	Fixed/Extractable Shelf D=665		400	665
EURI000765	Fixed/Extractable Shelf D=765		400	765
EURI020300	Frontal Fixing Shelf D=300			300
EURI020400	Frontal Fixing Shelf D=400			400
EURI020500	Frontal Fixing Shelf D=500			500
EURI020600	Frontal Fixing Shelf D=600			600
EURL001	Universal Shelf 456X44X021	440	456	21
EUSA-000600	Modular Front Cover W=600		600
EUSA-000800	Modular Front Cover W=800		800
EUSM060180	Modular Structure Eusm E NUX 600X1800	1800	600	50
EUSM060200	Modular Structure Eusm E NUX 600X2000	2000	600	50
EUSM080180	Modular Structure Eusm E NUX 800X1800	1800	800
EUSM080200	Modular Structure Eusm E NUX 800X2000	2000	800
EUSO-000600C	Modular Horizontal Rail Eupd W=600	90	545	49
EUSO-000800C	Modular Horizontal Rail Eupd W=800	90	745	49
EUSV-010020	Modular Side Covers 105X200	200		105
EUSV-010030	Modular Side Covers 105X300	300		105
EUSV-010040	Modular Side Covers 105X400	400		105
EUSV-010050	Modular Side Covers 105X500	500		105
EUSV-010060	Modular Side Covers 105X600	600		105
EUSV-010070	Modular Side Covers 105X700	700		105
EUSV-010080	Modular Side Covers 105X800	800		105
EUSV-010090	Modular Side Covers 105X900	900		105
EUSV-010100	Modular Side Covers 105X1000	1000		105
EUSV-010120	Modular Side Covers 105X1200	1200		105
EUSV-015020	Modular Side Covers 155X200	200		155
EUSV-015030	Modular Side Covers 155X300	300		155
EUSV-015040	Modular Side Covers 155X400	400		155
EUSV-015050	Modular Side Covers 155X500	500		155
EUSV-015060	Modular Side Covers 155X600	600		155
EUSV-015070	Modular Side Covers 155X700	700		155
EUSV-015080	Modular Side Covers 155X800	800		155
EUSV-015090	Modular Side Covers 155X900	900		155
EUSV-015100	Modular Side Covers 155X1000	1000		155
EUSV-015120	Modular Side Covers 155X1200	1200		155
EUSV-025020	Modular Side Covers 255X200	200		255
EUSV-025030	Modular Side Covers 255X300	300		255
EUSV-025040	Modular Side Covers 255X400	400		255
EUSV-025050	Modular Side Covers 255X500	500		255
EUSV-025060	Modular Side Covers 255X600	600		255
EUSV-025070	Modular Side Covers 255X700	700		255
EUSV-025080	Modular Side Covers 255X800	800		255
EUSV-025090	Modular Side Covers 255X900	900		255
EUSV-025100	Modular Side Covers 255X1000	1000		255
EUSV-025120	Modular Side Covers 255X1200	1200		255
EUSV-035020	Modular Side Covers 355X200	200		355
EUSV-035030	Modular Side Covers 355X300	300		355
EUSV-035040	Modular Side Covers 355X400	400		355
EUSV-035050	Modular Side Covers 355X500	500		355
EUSV-035060	Modular Side Covers 355X600	600		355
EUSV-035070	Modular Side Covers 355X700	700		355
EUSV-035080	Modular Side Covers 355X800	800		355
EUSV-035090	Modular Side Covers 355X900	900		355
EUSV-035100	Modular Side Covers 355X1000	1000		355
EUSV-035120	Modular Side Covers 355X1200	1200		355
EUTA0004C	Side Trim Panels Centr. H=400 4He		400
EUTA0004D	Side Trim Pan.Not Centr.H=400 4He		400
EUTA0008C	Side Trim Panels Centr. H=600 8He		600
EUTA0008D	Side Trim Pan.Not Centr.H=600 8He		600
EUTA0013C	Side Trim Panels Centr. H=800 13He		800
EUTA0013D	Side Trim Pan.Not Centr.H=800 13He		800
EUTA0017C	Side Trim Panels Centr. H=100Mm0 17He		1000
EUTA0017D	Side Trim Pan.Not Centr.H=100Mm0 17He		1000
EUTA0022C	Side Trim Panels Centr. H=1200 22He		1200
EUTA0022D	Side Trim Pan.Not Centr.H=1200 22He		1200
EUTA0026C	Side Trim Panels Centr. H=1400 26He		1400
EUTA0026D	Side Trim Pan.Not Centr.H=1400 26He		1400
EUTA0031C	Side Trim Panels Centr. H=1600 31He		1600
EUTA0031D	Side Trim Pan.Not Centr.H=1600 31He		1600
EUTA0035C	Side Trim Panels Centr. H=1800 35He		1800
EUTA0035D	Side Trim Pan.Not Centr.H=1800 35He		1800
EUTA0040C	Side Trim Panels Centr. H=2000 40He		2000
EUTA0040D	Side Trim Pan.Not Centr.H=2000 40He		2000
EUTA0044C	Side Trim Panels Centr. H=2200 44He		2200
EUTA0044D	Side Trim Pan.Not Centr.H=2200 44He		2200
EUTC-000500	Reinforcement Crosspiece D=500		500
EUTC-000600	Reinforcement Crosspiece D=600		600
EUTC-000800	Reinforcement Crosspiece D=800		800
EUTC-001000	Reinforcement Crosspiece D=1000		1000
EUTP060180	E NUX Frame Back Join. Kit 600X1800	1790	612	85
EUTP060200	E NUX Frame Back Join. Kit 600X2000	1990	612	85
EUTP080180	E NUX Frame Back Join. Kit 800X1800	1790	812	85
EUTP080200	E NUX Frame Back Join. Kit 800X2000	1990	812	85
EUTP100180	E NUX Frame Back Join. Kit 1000X1800	1790	1012	85
EUTP100200	E NUX Frame Back Join. Kit 1000X2000	1990	1012	85
EUTP120180	E NUX Frame Back Join. Kit 1200X1800	1790	1212	85
EUTP120200	E NUX Frame Back Join. Kit 1200X2000	1990	1212	85
EUTR0004	E NUX Swinging Rack Frame H=400 4He	255
EUTR0004N	E NUX Rack Swing.Frame H=400 4He	255
EUTR0008	E NUX Swinging Rack Frame H=600 8He	455
EUTR0008N	E NUX Rack Swing.Frame H=600 8He	455
EUTR0013	E NUX Swinging Rack Frame H=800 13He	655
EUTR0013N	E NUX Rack Swing.Frame H=800 8He	655
EUTR0017	E NUX Swing. Rack Frame H=100Mm0 17He	855
EUTR0017N	E NUX Rack Swing.Frame H=100Mm0 17He	855
EUTR-001KIT	Full Height Rack Frame Kit
EUTR-001KITN	Full Height Rack Frame Kit Noir
EUTR0022	E NUX Swing. Rack Frame H=1200 22He	1055
EUTR0022N	E NUX Rack Swing.Frame H=1200 22He	1055
EUTR0026	E NUX Swing. Rack Frame H=1400 26He	1255
EUTR0026N	E NUX Rack Swing.Frame H=1400 26He	1255
EUTR-002KIT	Upper/Lower Mount.Kit Rack Frame
EUTR-002KITN	Upper/Lower Mount.Kit Rack Frame
EUTR0031	E NUX Swing. Rack Frame H=1600 31He	1455
EUTR0031N	E NUX Rack Swing.Frame H=1600 31He	1455
EUTR0035	E NUX Swing. Rack Frame H=1800 35He	1655
EUTR0035N	E NUX Rack Swing.Frame H=1800 35He	1655
EUTR-003KIT	Intermidiate Mount.Kit Rack Frame
EUTR-003KITN	Intermidiate Mount.Kit Rack Frame
EUTR0040	E NUX Swing. Rack Frame H=2000 40He	1855
EUTR0040N	E NUX Swing. Rack Frame H=2000 40He	1855
EUTR0044	E NUX Swing. Rack Frame H=2200 44He	2055
EUTR0044N	E NUX Rack Swing.Frame H=2200 44He	2055
EUTS000600	Horizontal Rail For Eutr W=600		600
EUTS000600N	Horizontal Rail For Eutr W=600		600
EUTS000800	Horizontal Rail For Eutr W=800		800
EUTS000800N	Horizontal Rail For Eutr W=800		800
EUTT060050	E NUX Roof Rain Canopy 600X500	615	711	40
EUTT060060	E NUX Roof Rain Canopy 600X600	715	711	40
EUTT060080	E NUX Roof Rain Canopy 600X800	915	711	40
EUTT080050	E NUX Roof Rain Canopy 600X500	615	911	40
EUTT080060	E NUX Roof Rain Canopy 800X600	715	911	40
EUTT080080	E NUX Roof Rain Canopy 800X800	915	911	40
EUTT120050	E NUX Roof Rain Canopy 1200X500	615	1211	40
EUTT120060	E NUX Roof Rain Canopy 1200X600	715	1211	40
EUTT120080	E NUX Roof Rain Canopy 1200X800	915	1211	40
EUTT160050	E NUX Roof Rain Canopy 600X500	615	1611	40
EUVC040050	E NUX Cable Entry Box 400X500		400	500
EUVC040060	E NUX Cable Entry Box 400X600		400	600
EUVC040080	E NUX Cable Entry Box 400X800		400	800
EUVC060050	E NUX Cable Entry Box 600X500		600	500
EUVC060060	E NUX Cable Entry Box 600X600		600	600
EUVC060080	E NUX Cable Entry Box 600X800		600	800
EUVC080050	E NUX Cable Entry Box 800X500		800	500
EUVC080060	E NUX Cable Entry Box 800X600		800	600
EUVC080080	E NUX Cable Entry Box 800X800		800	800
EUVC100050	E NUX Cable Entry Box 1000X500		1000	500
EUVC100060	E NUX Cable Entry Box 1000X600		1000	600
EUVC100080	E NUX Cable Entry Box 1000X800		1000	800
EUVC120050	E NUX Cable Entry Box 1200X500		1200	500
EUVC120060	E NUX Cable Entry Box 1200X600		1200	600
EUVC120080	E NUX Cable Entry Box 1200X800		1200	800
EUZ3-040040	E NUX Watertight Plinth 400X400	200	400	378
EUZ3-040050	E NUX Watertight Plinth 400X500	200	400	478
EUZ3-040060	E NUX Watertight Plinth 400X600	200	400	578
EUZ3-040080	E NUX Watertight Plinth 400X800	200	400	778
EUZ3-060040	E NUX Watertight Plinth 600X400	200	600	378
EUZ3-060050	E NUX Watertight Plinth 600X500	200	600	478
EUZ3-060060	E NUX Watertight Plinth 600X600	200	600	578
EUZ3-060080	E NUX Watertight Plinth 600X800	200	600	778
EUZ3-080040	E NUX Watertight Plinth 800X400	200	800	378
EUZ3-080050	E NUX Watertight Plinth 800X500	200	800	478
EUZ3-080060	E NUX Watertight Plinth 800X600	200	800	578
EUZ3-080080	E NUX Watertight Plinth 800X800	200	800	778
EUZ3-100040	E NUX Watertight Plinth 1000X400	200	1000	378
EUZ3-100050	E NUX Watertight Plinth 1000X500	200	1000	478
EUZ3-100060	E NUX Watertight Plinth 1000X600	200	1000	578
EUZ3-100080	E NUX Watertight Plinth 1000X800	200	1000	778
EUZ3-120040	E NUX Watertight Plinth 1200X400	200	1200	378
EUZ3-120050	E NUX Watertight Plinth 1200X500	200	1200	478
EUZ3-120060	E NUX Watertight Plinth 1200X600	200	1200	578
EUZ3-120080	E NUX Watertight Plinth 1200X800	200	1200	778
WI100	Microswitch E NUX		75
WI100M	Microswitch Emox/Ecomp		0
WIPX-44	Alluminium Window 400X400	400	400
WIPX-54	Alluminium Window 500X400	400	500
WIPX-55	Alluminium Window 500X500	500	500
WIPX-66	Alluminium Window 600X600	600	600
WLDI-001	Roof Ventilation Spacers	20	70	60
WTCI060100	Front Panel Kit W=600		600
WTCI080100	Front Panel Kit W=800		800
WTFP-001	Door Stop 90°	42	300	40
WTFP-002	Door Stop 135°		310
WTFP-004	Ecomp 90° Door Stop		0
WTFP-006	Emox 90° Door Stop	200	400	55
WTFP-007	Emox 135° Door Stop	60	300	55
WTFP-008	E VIS Door Stop 95°		0
WTFP-010	Double Door E NUX Door Stop 90°		300
WTFP-011	Door Stop 170°		0
WTGS-001	Lifting Eyebolts		0
WTGS-001X	Lifting Eyebolts M12		0
WTGS-003	Emox/Ecomp Lifting Eyebolts	85	56	100
WTGS-004	Lifting Eyebolts Emox/E VIS		0
WTKA-001	Mounting Kit Div. Plate Pos. A		0
WTKB-002	Mounting Kit Div. Plate Pos. B	45	130	130
WTLA-035	Fluorescent Lamp 11W - 230V
WTLA-080	Led Lamp With Switch
WTPP-001400	Inner Door Rails W=1400	1400
WTPP-001600	Inner Door Rails W=1600	1600
WTPP-001800	Inner Door Rails W=1800	1800
WTPP-002000	Inner Door Rails W=2000	2000
WTPP-002200	Inner Door Rails W=2200	2200
WTPR-025040R	Fast Fixing Profiles H=25 D=400	392	50	400
WTPR-025050R	Fast Fixing Profiles H=25 D=500	492	50	500
WTPR-025060R	Fast Fixing Profiles H=25 D=600	592	50	600
WTPR-025080R	Fast Fixing Profiles H=25 D=800	792	50	800
WTPR-025100R	Fast Fixing Profiles H=25 D=1000	992	50	1000
WTPR-033015	Modular Rail D=155/175	172	66	30
WTPR-033025	Modular Rail D=255/275	272	66	30
WTPR-033040	Modular Rail D=355/375	372	66	30
WTPR-033050	Modular Rail D=455	472	66	30
WTPR-033060	Modular Rail D=555	572	66	30
WTPR-033070	Modular Rail D=655	672	66	30
WTPR-033080	Modular Rail D=755	772	66	30
WTPR-050022R	Cs Fast Fixing Bracket H=50 D=300	100	217	48
WTPR-050032R	Cs Fast Fixing Bracket H=50 D=400	100	317	48
WTPR-050040CP	Mounting Rails Wtrs H=50 D=400	97	296	50
WTPR-050040R	Fast Fixing Profiles H=50 D=400	48	392	108
WTPR-050050CP	Mounting Rails Wtrs H=50 D=500	97	396	50
WTPR-050050R	Fast Fixing Rails H=50 W=500	48	492	108
WTPR-050060CP	Mounting Rails Wtrs H=50 D=600	97	496	50
WTPR-050060R	Fast Fixing Rails H=50 W=600	48	592	108
WTPR-050080CP	Mounting Rails Wtrs H=50 D=800	97	696	50
WTPR-050080R	Fast Fixing Rails H=50 W=800	48	792	108
WTPR-050100R	Fast Fixing Rails H=50 W=1000	48	992	108
WTPR-050180CP	Mounting Rails Wtrs H=50 D=1800	97	1696	50
WTPR-050200CP	Mounting Rails Wtrs H=50 D=2000	97	1896	50
WTPR-0600R	Fast Fixing Rails D=600	90	592	100
WTPR-075040RS	Fast Fixing Rail H=75 W=400	24	392	75
WTPR-075050RS	Fast Fixing Rail H=75 W=500	24	492	75
WTPR-075060RS	Fast Fixing Rail H=75 W=600	24	592	75
WTPR-075080RS	Fast Fixing Rail H=75 W=800	24	792	75
WTPR-0800R	Fast Fixing Rails D=800	90	792	100
WTPR-1000R	Fast Fixing Rails D=1000	90	992	50
WTPX-001	Levelling Feet
WTPX-005X	Levelling Feet
WTRE000600	External Shelf W=600		600
WTRP060060	Fixed Shelf 600X600		600	600
WTRP060080	Fixed Shelf 600X800		600	800
WTRS000600	Sliding Shelf W=600		600
WTRU-001	Polyamide Wheels
WTSC-001	M.Plate Central Support Brackets
WTSF-001	Wtpr Rails Fixing Brackets
WTSF-001CP	Wtpr Rails Fixing Brackets
WTSS-001	E NUX Lifting Brackets
WTST-000400	Transformer Supports W=400		400
WTST-000600	Transformer Supports W=600		600
WTST-000800	Transformer Supports W=800		800
WTST-001000	Transformer Supports W=1000		1000
WTST-001200	Transformer Supports W=1200		1200
WTST-001400	Transformer Supports W=1400		1400
WTST-001600	Transformer Supports W=1600		1600
WTTF-000400	U Rail For Cable Fixing W=400		400
WTTF-000600	U Rail For Cable Fixing W=600		600
WTTF-000800	U Rail For Cable Fixing W=800		800
WTTF-001000	U Rail For Cable Fixing W=1000		1000
WTTF-001200	U Rail For Cable Fixing W=1200		1200
WTTF-001400	U Rail For Cable Fixing W=1400		1400
WTTF-001600	U Rail For Cable Fixing W=1600		1600
WTTG-040050	Base Plate For 2 Mounting Plates		400	50
WTTG-040100	Base Plate For 2 Mounting Plates		400	100
WTTG-040160	Base Plate For 2 Mounting Plates		400	160
WTTG-060050	Base Plate For 2 Mounting Plates		600	50
WTTG-060100	Base Plate For 2 Mounting Plates		600	100
WTTG-060160	Base Plate For 2 Mounting Plates		600	160
WTTG-080050	Base Plate For 2 Mounting Plates		800	50
WTTG-080100	Base Plate For 2 Mounting Plates		800	100
WTTG-080160	Base Plate For 2 Mounting Plates		800	160
WTTG-100050	Base Plate For 2 Mounting Plates		1000	50
WTTG-100100	Base Plate For 2 Mounting Plates		1000	100
WTTG-100160	Base Plate For 2 Mounting Plates		1000	160
WTTG-120050	Base Plate For 2 Mounting Plates		1200	50
WTTG-120100	Base Plate For 2 Mounting Plates		1200	100
WTTG-120160	Base Plate For 2 Mounting Plates		1200	160
WTTG-140050	Base Plate For 2 Mounting Plates		1400	50
WTTG-140100	Base Plate For 2 Mounting Plates		1400	100
WTTG-140160	Base Plate For 2 Mounting Plates		1400	160
WTTG-160050	Base Plate For 2 Mounting Plates		1600	50
WTTG-160100	Base Plate For 2 Mounting Plates		1600	100
WTTG-160160	Base Plate For 2 Mounting Plates		1600	160
WTTO-000400	Rails For Door W=400		284
WTTO-000600	Rail For Door W=600-1200		484
WTTO-000700	Rail For Door W=1400		584
WTTO-000800	Rail For Door W=800-1600		684
WTTO-001000	Rail For Door W=1000		884
WTTS000500	Plan Pocket W=500 D=89	270	500	90
WTTS000600	Plan Pocket W=600 D=89	270	600	90
WTTS-000600X	Plan Pocket W=600		600
WTTS-000600XH	Plan Pocket W=600		600
WTTS000700	Plan Pocket W=700 D=89	270	700	90
WTTS000800	Plan Pocket W=800 D=89	270	800	90
WTTS-000800X	Plan Pocket W=800		800
WTTS-000800XH	Plan Pocket W=800		800
WTTS001000	Plan Pocket W=1000 D=89	270	1000	90
WTTS-001000X	Plan Pocket W=1000		1000
WTTS-001000XH	Plan Pocket W=1000		1000

The accessories designed for the ABACUS range are add-ons designed to better organise the space inside the rack, facilitate installation and maintenance, ensure safety and ventilation, and optimise cable and power management.

Here are the main ones:

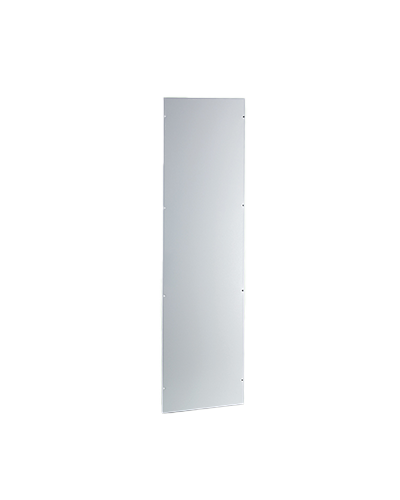

Blank panel
Modular plinth
Side walls
Cable guide panel and cable guide rings
Fixed and removable internal shelves
Rack uprights
Wheels and feet
Depth crossbars
Pre-cut bottom for cable entry
Plugging strips
Support rails
Joining kits
Lifting systems
Lighting systems
Ventilation systems
PDUS

ABACUS

EVO & PRO ranges

ABACUS cabinets

Accessories code list

Item #	Configuration	Height	Width	Depth
AEKU-005	Joining Kit ABACUS
AEMK241200	19' ABACUS Uprights 24He		30"""
AEMK291400	19' ABACUS Uprights 29He		0"""
AEMK331600	19' ABACUS Uprights 33He		0"""
AEMK381800	19' ABACUS Uprights 38He		0"""
AEMK422000	19' ABACUS Uprights 42He		30"""
AEMK472200	19' ABACUS Uprights 47He		25"""
AEP0010	Rack Blank Panel 1He		10
AEP0011	Rack Blank Panel 2He		10
AEP0012	Rack Blank Panel 3He		10
AEP0013	Rack Blank Panel 1He		0
AEP0020	Panel With Cable Tray 1He		0
AEP0021	Panel With Cable Tray 1He		0
AEP0030	Panel With Cable Tray 5 Rings 1He		400
AEP0031	Panel With Cable Tray 5 Rings 1He
AEP0032	Panel With Cable Tray 5 Rings 1He
AEP0040	Cable Panel With Brush 1He
AEP0041	Cable Panel With Brush 2He
AEP0050	Fixed Shelf 1He D=300		600	300
AEP0051	Fixed Shelf 1He D=400		600	400
AEP0060	Anti-Tilt Safety Device W=600		600
AEP0061	Anti-Tilt Safety Device W=800		800
AEP0070	19' Fixing Brackets"
AEP0072	Pre-Punched ABACUS Bottom 600X600	48	600	600
AEP0072N	Pre-Punched ABACUS Bottom 600X600	48	498	498
AEP0073	Pre-Punched ABACUS Bottom 600X800	48	498	698
AEP0073N	Pre-Punched ABACUS Bottom 600X800	48	498	698
AEP0074	Pre-Punched ABACUS Bottom 600X1000	48	498	898
AEP0074N	Pre-Punched ABACUS Bottom 600X1000	48	498	898
AEP0075	Pre-Punched ABACUS Bottom 600X1200	48	498	1098
AEP0075N	Pre-Punched ABACUS Bottom 600X1200	48	498	1098
AEP0076	Pre-Punched ABACUS Bottom 800X600	48	698	498
AEP0077	Pre-Punched ABACUS Bottom 800X600	48	698	698
AEP0078	Pre-Punched ABACUS Bottom 800X1000	48	698	898
AEP0078N	Pre-Punched ABACUS Bottom 800X1000	48	698	898
AEP0079	Pre-Punched ABACUS Bottom 800X1200	48	698	1098
AEP0079N	Pre-Punched ABACUS Bottom 800X1200	48	698	1098
AEP0080	Blank Closing Panel H=1200 24He	1200
AEP0081	Blank Closing Panel H=1600 33He	1600
AEP0082	Blank Closing Panel H=2000 42He	2000	82
AEP0083	Blank Closing Panel H=2200 47He	2200
AEP0084	19'Central Reinforc. Bracket D=600"			600"""
AEP0085	19'Central Reinforc. Bracket D=800"			800"""
AEP0086	19'Central Reinforc.Bracket D=1000"			1000"""
AEP0087	19'Central Reinforc.Bracket D=1200"			1200"""
AEP0088	Blank Closing Panels H=1800 38He	1800
AEP0090	Multi-Function Panels H=1200 24He	1200
AEP0091	Multi-Function Panels H=1600 33He	1600
AEP0092	Multi-Function Panels H=2000 42He	2000
AEP0093	Multi-Function Panels H=2200 47He	2200
AEP0094	19' Fixing Uprights"			600"""
AEP0095	19' Fixing Uprights"			800"""
AEP0096	19' Fixing Uprights"			1000"""
AEP0097	19' Fixing Uprights"			1200"""
AEP0098	19' Fixing Uprights"		800"""	1400
AEP0099	Multi-Function Panels H=1400 29He	1400	0
AEP0100	Brush For Top/Bottom W=600		600
AEP0104	19' Fixing Uprights"			400"""
AEP0105	19' Fixing Uprights"			500"""
AEP0140	Blank Closing Panels With Rings H=1200 24He	1200
AEP0141	Blank Closing Panels With Rings H=1400 29He	1400
AEP0142	Blank Closing Panels With Rings H=1600 33He	1600
AEP0143	Blank Closing Panels With Rings H=1800 38He	1800
AEP0144	Blank Closing Panels With Rings H=2000 42He	2000	138	98
AEP0145	Blank Closing Panels With Rings H=2200 47He	2200
AEP0150	Supporting Guide Aemk 232Mm	35	232	40
AEP0151	Supporting Guide Aemk 332Mm	35	332	40
AEP0152	Supporting Guide Aemk 532Mm	35	532	40
AEP0153	Supporting Guide Aemk 732Mm	35	732	40
AEP0154	Supporting Guide Aemk 932Mm	35	932	40
AEP0155	Multi-Function Panels H=1800 38He	1800
AEP0251	Roof Ventilation Unit - 2 Units Without Thermostat	70	420	150
AEP0252	Roof Ventilation Unit - 4 Units Without Thermostat	70	420	290
AEP0253	Roof Ventilation Unit - 6 Units Without Thermostat	70	420	430
AEP0254	Roof Ventilation Unit - 2 Units With Thermostat	70	420	150
AEP0255	Roof Ventilation Unit - 4 Units With Thermostat	70	420	290
AEP0256	Roof Ventilation Unit - 6 Units	70	420	430
AEP0270	19' Profiles"	500
AEP0271	19' Profiles"	600
AEP0272	19' Profiles"	800
AEP0280	Louvered Cable Entry Plate		600	400
AEP0281	Louvered Cable Entry Plate		600	500
AEP0282	Louvered Cable Entry Plate		600	600
AEP0300	ABACUS Box Rain Canopy 600X400	435	610	55
AEP0301	ABACUS Box Rain Canopy 600X500	535	610	55
AEP0302	ABACUS Box Rain Canopy 600X600	635	610	55
AERC241200	C 19	1200
AERC291400	C 19	1400
AERC331600	C 19	1600
AERC381800	C 19	1800
AERC422000	C 19	200
AERC472200	C 19	2200
AERI000365	Fixed Shelf D=365		600	365
AERI000365E	Sliding Shelf D=365 With Guides		600	365
AERI000465	Fixed Shelf D=465		600	465
AERI000465E	Sliding Shelf D=465 With Guides		600	465
AERI000500M	Sliding Shelf D=565 With Guides With Rotary Support		600	565
AERI000565	Fixed Shelf D=565		600	565
AERI000565E	Sliding Shelf D=565 With Guides		600	565
AERI000665	Fixed Shelf D=665		600	665
AERI000665E	Sliding Shelf P=665 With Guides		600	665
AERI000765	Fixed Shelf D=765		600	765
AERI000765E	Sliding Shelf D=765 With Guides		600	765
AERL241200	L 19	1200
AERL291400	L 19	1400
AERL331600	L 19	1600
AERL381800	L 19	1800
AERL422000	L 19	2000
AERL472200	L 19	2200
AEZE-T0600F	Front Crossp. ABACUS Plinth W=600		600
AEZE-T0600FM	Front Crossp. ABACUS Plinth W=600		600
AEZE-T0600L	Side Crossp. ABACUS Plinth D=600		600
AEZE-T0600LM	Side Crossp. ABACUS Plinth D=600		600
AEZE-T0800F	Front Crossp. ABACUS Plinth W=800		800
AEZE-T0800FM	Front Crossp. ABACUS Plinth W=800		800
AEZE-T0800L	Side Crossp. ABACUS Plinth D=800		800
AEZE-T0800LM	Side Crossp. ABACUS Plinth D=800		800
AEZE-T1000L	Side Crossp. ABACUS Plinth D=1000		1000
AEZE-T1000LM	Side Crossp. ABACUS Plinth D=1000		1000
AEZE-T1200L	Side Crossp. ABACUS Plinth D=1200		1200
AEZE-T1200LM	Side Crossp. ABACUS Plinth D=1200		1200
APFI060120	ABACUS Side Panels 600X1200	1178	568	38
APFI060120M	ABACUS Side Panels 1200X1200	1178	568	38
APFI060160	ABACUS Side Panels 600X1600	1578	568	38
APFI060160M	ABACUS Side Panels 600X1600	1578	568	38
APFI060180	ABACUS Side Panels 600X1800	1778	568	38
APFI060180M	ABACUS Side Panels 600X1800	1778	568	38
APFI060200	ABACUS Side Panels 600X2000	1978	568	38
APFI060200M	ABACUS Side Panels 600X2000	1978	568	38
APFI060220	ABACUS Side Panels 600X2200	2178	568	38
APFI060220M	ABACUS Side Panels 600X2200	2178	568	38
APFI080120	ABACUS Side Panels 800X1200	1178	768	38
APFI080120M	ABACUS Side Panels 800X1200	1178	768	38
APFI080160	ABACUS Side Panels 800X1600	1578	768	38
APFI080160M	ABACUS Side Panels 800X1600	1578	768	38
APFI080180	ABACUS Side Panels 800X1800	1778	768	38
APFI080180M	ABACUS Side Panels 800X1800	1778	768	38
APFI080200	ABACUS Side Panels 800X2000	1978	768	38
APFI080200M	ABACUS Side Panels 800X2000	1978	768	38
APFI080220	ABACUS Side Panels 800X2200	2178	768	38
APFI080220M	ABACUS Side Panels 800X2200	2178	768	38
APFI100120	ABACUS Side Panels 1000X1200	1178	968	38
APFI100120M	ABACUS Side Panels 1000X1200	1178	968	38
APFI100160	ABACUS Side Panels 1000X1600	1578	968	38
APFI100160M	ABACUS Side Panels 1000X1600	1578	968	38
APFI100180	ABACUS Side Panels 1000X1800	1778	968	38
APFI100180M	ABACUS Side Panels 1000X1800	1778	968	38
APFI100200	ABACUS Side Panels 1000X2000	1978	968	38
APFI100200M	ABACUS Side Panels 1000X2000	1978	968	38
APFI100220	ABACUS Side Panels 1000X2200	2178	968	38
APFI100220M	ABACUS Side Panels 1000X2200	2178	968	38
APFI120120	ABACUS Side Panels 1200X1200	1178	1168	38
APFI120120M	ABACUS Side Panels 1200X1200	1178	1168	38
APFI120160M	ABACUS Side Panels 1200X1600	1178	1168	38
APFI120200	ABACUS Side Panels 1200X2000	1978	1168	38
APFI120200M	ABACUS Side Panels 1200X2000	1978	1168	38
APFI120220	ABACUS Side Panels 1200X2200	2178	1168	38
APFI120220M	ABACUS Side Panels 1200X2200	2178	1168	38
APPO060120	ABACUS Single Blank Door 600X1200	1170	610	90
APPO060120DP	ABACUS Double Blank Door 600X1200	1170	610	140
APPO060120DPM	ABACUS Double Blank Door 600X1200	1170	610	90
APPO060120M	ABACUS Single Blank Door 600X1200	1170	610	140
APPO060160	ABACUS Single Blank Door 600X1600	1570	610	90
APPO060160DP	ABACUS Double Blank Door 600X1600	1570	610	140
APPO060160DPM	ABACUS Double Blank Door 600X1600	1570	610	90
APPO060160M	ABACUS Single Blank Door 600X1600	1570	610	140
APPO060180	ABACUS Single Blank Door 600X1800	1770	610	90
APPO060180DP	ABACUS Double Blank Door 600X1800	1770	610	140
APPO060180DPM	ABACUS Double Blank Door 600X1800	1770	610	90
APPO060180M	ABACUS Single Blank Door 600X1800	1770	610	140
APPO060200	ABACUS Single Blank Door 600X2000	1970	610	90
APPO060200DP	ABACUS Double Blank Door 600X2000	1970	610	140
APPO060200DPM	ABACUS Double Blank Door 600X2000	1970	610	90
APPO060200M	ABACUS Single Blank Door 600X2000	1970	610	140
APPO060220	ABACUS Single Blank Door 600X2200	2170	610	90
APPO060220DP	ABACUS Double Blank Door 600X2200	2170	610	140
APPO060220DPM	ABACUS Double Blank Door 600X2200	2170	610	90
APPO060220M	ABACUS Single Blank Door 600X2200	2170	610	140
APPO080120	ABACUS Single Blank Door 800X1200	1170	810	90
APPO080120DP	ABACUS Double Blank Door 800X1200	1170	810	140
APPO080120DPM	ABACUS Double Blank Door 800X1200	1170	810	90
APPO080120M	ABACUS Single Blank Door 800X1200	1170	810	140
APPO080160	ABACUS Single Blank Door 800X1600	1570	810	90
APPO080160DP	ABACUS Double Blank Door 800X1600	1570	810	140
APPO080160DPM	ABACUS Double Blank Door 800X1600	1570	810	90
APPO080160M	ABACUS Single Blank Door 800X1600	1570	810	140
APPO080180	ABACUS Single Blank Door 800X1800	1570	810	90
APPO080180DP	ABACUS Double Blank Door 800X1800	1570	810	140
APPO080180DPM	ABACUS Double Blank Door 800X1800	1570	810	90
APPO080180M	ABACUS Single Blank Door 800X1800	1570	810	140
APPO080200	ABACUS Single Blank Door 800X2000	1970	810	90
APPO080200DP	ABACUS Double Blank Door 800X2000	1970	810	140
APPO080200DPM	ABACUS Double Blank Door 800X2000	1970	810	90
APPO080200M	ABACUS Single Blank Door 800X2000	1970	810	140
APPO080220	ABACUS Single Blank Door 800X2200	2170	810	90
APPO080220DP	ABACUS Double Blank Door 800X2200	2170	810	140
APPO080220DPM	ABACUS Double Blank Door 800X2200	2170	810	90
APPO080220M	ABACUS Single Blank Door 800X2200	2170	810	140
APPV060120	ABACUS Single Glazed Door 600X1200	1170	610	90
APPV060120M	ABACUS Single Glazed Door 600X1200	1170	610	90
APPV060160	ABACUS Single Glazed Door 600X1600	1570	610	90
APPV060160M	ABACUS Single Glazed Door 600X1600	1570	610	90
APPV060180	ABACUS Single Glazed Door 600X1800	1770	610	90
APPV060180M	ABACUS Single Glazed Door 600X1800	1770	610	90
APPV060200	ABACUS Single Glazed Door 600X2000	1970	610	90
APPV060200M	ABACUS Single Glazed Door 600X2000	1970	610	90
APPV060220	ABACUS Single Glazed Door 600X2200	2170	610	90
APPV060220M	ABACUS Single Glazed Door 600X2200	2170	610	90
APPV080120	ABACUS Single Glazed Door 800X1200	1170	810	90
APPV080120M	ABACUS Single Glazed Door 800X1200	1170	810	90
APPV080160	ABACUS Single Glazed Door 800X1600	1570	810	90
APPV080160M	ABACUS Single Glazed Door 800X1600	1570	810	90
APPV080180	ABACUS Single Glazed Door 800X1800	1770	810	90
APPV080180M	ABACUS Single Glazed Door 800X1800	1770	810	90
APPV080200	ABACUS Single Glazed Door 800X2000	1970	810	90
APPV080200M	ABACUS Single Glazed Door 800X2000	1970	810	90
APPV080220	ABACUS Single Glazed Door 800X2200	2170	810	90
APPV080220M	ABACUS Single Glazed Door 800X2200	2170	810	90
APRE060120	ABACUS Screwed Panel 600X1200	1209	600	90
APRE060120M	ABACUS Screwed Panel 600X1200	1209	600	90
APRE060160	ABACUS Screwed Panel 600X1600	1609	600	90
APRE060160M	ABACUS Screwed Panel 600X1600	1609	600	90
APRE060180	ABACUS Screwed Panel 600X1800	1809	600	90
APRE060180M	ABACUS Screwed Panel 600X1800	1809	600	90
APRE060200	ABACUS Screwed Panel 600X2000	2009	600	90
APRE060200M	ABACUS Screwed Panel 600X2000	2009	600	90
APRE060220	ABACUS Screwed Panel 600X2200	2209	600	90
APRE060220M	ABACUS Screwed Panel 600X2200	2209	600	90
APRE080120	ABACUS Screwed Panel 800X1200	1209	800	90
APRE080120M	ABACUS Screwed Panel 800X1200	1209	800	90
APRE080160	ABACUS Screwed Panel 800X1600	1609	800	90
APRE080160M	ABACUS Screwed Panel 800X1600	1609	800	90
APRE080180	ABACUS Screwed Panel 800X1800	1809	800	90
APRE080180M	ABACUS Screwed Panel 800X1800	1809	800	90
APRE080200	ABACUS Screwed Panel 800X2000	2009	800	90
APRE080200M	ABACUS Screwed Panel 800X2000	2009	800	90
APRE080220	ABACUS Screwed Panel 800X2200	2209	800	90
APRE080220M	ABACUS Screwed Panel 800X2200	2209	800	90
APZE-A100	Corner Pieces ABACUS Plinth H=100Mm		100
APZE-A100M	Corner Pieces ABACUS Plinth H=100Mm		100
APZE-A200	Corner Pieces ABACUS Plinth H=200Mm		200
APZE-A200M	Corner Pieces ABACUS Plinth H=200		200
APZE-T0400	Front Crossp. ABACUS Plinth W=400	110	400
APZE-T0400B	Side Crossp. ABACUS Plinth D=400	110	400
APZE-T0400BD	Side Crossp. ABACUS Plinth D=400	200	400
APZE-T0400BV	Side Crossp. ABACUS Plinth D=400	110	400
APZE-T0400V	Front Crossp. ABACUS Plinth W=400	110	400
APZE-T0500B	Side Crossp. ABACUS Plinth D=500	210	500
APZE-T0500BD	Side Crossp. ABACUS Plinth D=500	100	500
APZE-T0500BV	Side Crossp. ABACUS Plinth D=500	110	600
APZE-T0600	Front Crossp. ABACUS Plinth W=600	110	600
APZE-T0600B	Side Crossp. ABACUS Plinth D=600	210	600
APZE-T0600BD	Side Crossp. ABACUS Plinth D=600	100	600
APZE-T0600BV	Side Crossp. ABACUS Plinth D=600	110	600
APZE-T0600D	Front Crossp. ABACUS Plinth W=600	200	600
APZE-T0600M	Front Crossp. ABACUS Plinth W=600		600
APZE-T0600MD	Front Crossp. ABACUS Plinth W=600		600
APZE-T0600MV	Front Crossp. ABACUS Plinth W=600		600
APZE-T0600V	Front Crossp. ABACUS Plinth W=600	110	600
APZE-T0800	Front Crossp. ABACUS Plinth W=800	110	800
APZE-T0800D	Front Crossp. ABACUS Plinth W=800	200	800
APZE-T0800M	Front Crossp. ABACUS Plinth W=800		800
APZE-T0800MD	Front Crossp. ABACUS Plinth W=800		800
APZE-T0800MV	Front Crossp. ABACUS Plinth W=800		800
APZE-T0800V	Front Crossp. ABACUS Plinth W=800	110	800
APZE-T1000	Front Crossp. ABACUS Plinth W=1000	110	1000
APZE-T1000D	Front Crossp. ABACUS Plinth W=1000	200	1000
APZE-T1000M	Front Crossp. ABACUS Plinth W=1000		1000
APZE-T1000MD	Front Crossp. ABACUS Plinth W=1000		1000
APZE-T1000MV	Front Crossp. ABACUS Plinth W=1000		1000
APZE-T1000V	Front Crossp. ABACUS Plinth W=1000	110	1000
APZE-T1200	Front Crossp. ABACUS Plinth W=1200	110	1200
APZE-T1200D	Front Crossp. ABACUS Plinth W=1200	200	1200
APZE-T1200M	Front Crossp. ABACUS Plinth W=1200		1200
APZE-T1200MD	Front Crossp. ABACUS Plinth W=1200		1200
APZE-T1200MV	Front Crossp. ABACUS Plinth W=1200		1200
APZE-T1200V	Front Crossp. ABACUS Plinth W=1200	110	1200

Let's Discuss Your Application Requirements And

Discover The Right Solution For You!

Contact our team of experts to discuss your project requirements and request a quote today.

Request a Quote

quality and reliability in everything we do

Similar Products

View All Products

Consult Our Experts

Learn more about how ETA Enclosures can provide the right enclosure solution for your application. Our team of experts is ready to help you find the perfect product and ensure that it meets your exact needs.

Product of Interest (Multiple Choice)

Wall Mount Enclosures

Modular & Freestanding Enclosures

Operator Interface Enclosures

Terminal & Junction Boxes

Thermal Management

I consent to the processing of my personal data in accordance with EU Regulation No. 2016/679 and declare that I have read, understood, and accepted the privacy policy. (Read privacy policy) *

Consent to the use of the information provided in this form for marketing or commercial communications. (Read privacy policy)

Accessories

E NUX

E NUX X

Modular and assembled cabinets

Accessories code list

ABACUS

ABACUS cabinets

Accessories code list

Let's Discuss Your Application Requirements And

Discover The Right Solution For You!

Similar Products

ABACUS PRO - Box

ABACUS EVO - Cabinet

ABACUS PRO - Cabinet

E NUX Modular Cabinets

Consult Our Experts
