ABACUS PRO Box

ABACUS PRO enclosure intended for multiple applications in IT/Data Networking.

This range is the result of a restyling of the old wall-mounted APRO enclosures, incorporating the innovative design and pluses of the E COR range, in painted sheet metal.

Available in the following versions:

  • Indoor, with single blank door
  • Indoor, with single glass door
  • Outdoor, with single blank door and protective canopy




Wide range of interior accessories 100% compatible with those of the E COR range (to be ordered separately).

Discover compatible accessories

Box ABACUS PRO indoor

ABACUS PRO indoor open

INDOOR version

Technical features and composition



Material: sheet steel DC01

Structural features:

  • Enclosure provided with cable entry, no. 2 19'' rack profiles mounted on the front; prepared for mounting of a.a. plate.
  • Front door available in blank or glass version

Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.

Colour: textured RAL7035

Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained

Degree of protection: IP66, NEMA/UL Type: 1, 12, 3R, 4

Impact resistance degree: IK10

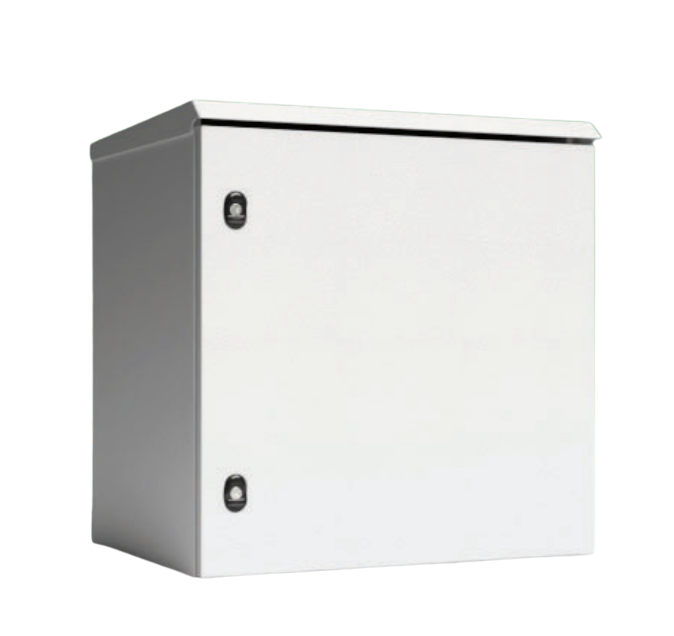

OUTDOOR Version

Technical features and composition



Material: sheet steel DC01

Structural features:

  • Enclosure provided with cable entry, 2 front-mounted 19'' rack profiles and depth rails with safety viro insert; prepared for mounting of a.a. plate
  • Reversible blind front door
  • Rain canopy

Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.

Colour: textured RAL7035

Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained

Degree of protection: IP66, NEMA/UL Type: 1, 12, 3R, 4

Impact resistance degree: IK10

ABACUS PRO Boxes

Code List

Filter by:

Width (mm)
600
Height (mm)
500
600
800
1000
Depth (mm)
400
500
600
Item #ConfigurationHeightWidthDepthEnvironmental ratingsAdd to Quote Cart
APRO06140BCBlank door - Indoor1000600400NEMA / UL Type 1, 4; IP66
APRO06140BOCBlank door - Outdoor1000600400NEMA / UL Type 1, 4; IP66
APRO06140BVCGlass door - Indoor1000600400NEMA / UL Type 1, 12; IP66
APRO06150BCBlank door - Indoor1000600500NEMA / UL Type 1, 4; IP66
APRO06150BOCBlank door - Outdoor1000600500NEMA / UL Type 1, 4; IP66
APRO06150BVCGlass door - Indoor1000600500NEMA / UL Type 1, 12; IP66
APRO06160BCBlank door - Indoor1000600600NEMA / UL Type 1, 4; IP66
APRO06160BOCBlank door - Outdoor1000600600NEMA / UL Type 1, 4; IP66
APRO06160BVCGlass door - Indoor1000600600NEMA / UL Type 1, 12; IP66
APRO06540BCBlank door - Indoor500600400NEMA / UL Type 1, 4; IP66
APRO06540BOCBlank door - Outdoor500600400NEMA / UL Type 1, 4; IP66
APRO06540BVCGlass door - Indoor500600400NEMA / UL Type 1, 12; IP66
APRO06550BCBlank door - Indoor500600500NEMA / UL Type 1, 4; IP66
APRO06550BOCBlank door - Outdoor500600500NEMA / UL Type 1, 4; IP66
APRO06550BVCGlass door - Indoor500600500NEMA / UL Type 1, 12; IP66
APRO06560BCBlank door - Indoor500600600NEMA / UL Type 1, 4; IP66
APRO06560BOCBlank door - Outdoor500600600NEMA / UL Type 1, 4; IP66
APRO06560BVCGlass door - Indoor500600600NEMA / UL Type 1, 12; IP66
APRO06640BCBlank door - Indoor600600400NEMA / UL Type 1, 4; IP66
APRO06640BOCBlank door - Outdoor600600400NEMA / UL Type 1, 4; IP66
APRO06640BVCGlass door - Indoor600600400NEMA / UL Type 1, 12; IP66
APRO06650BCBlank door - Indoor600600500NEMA / UL Type 1, 4; IP66
APRO06650BOCBlank door - Outdoor600600500NEMA / UL Type 1, 4; IP66
APRO06650BVCGlass door - Indoor600600500NEMA / UL Type 1, 12; IP66
APRO06660BCBlank door - Indoor600600600NEMA / UL Type 1, 4; IP66
APRO06660BOCBlank door - Outdoor600600600NEMA / UL Type 1, 4; IP66
APRO06660BVCGlass door - Indoor600600600NEMA / UL Type 1, 12; IP66
APRO06840BCBlank door - Indoor800600400NEMA / UL Type 1, 4; IP66
APRO06840BOCBlank door - Outdoor800600400NEMA / UL Type 1, 4; IP66
APRO06840BVCGlass door - Indoor800600400NEMA / UL Type 1, 12; IP66
APRO06850BCBlank door - Indoor800600500NEMA / UL Type 1, 4; IP66
APRO06850BOCBlank door - Outdoor800600500NEMA / UL Type 1, 4; IP66
APRO06850BVCGlass door - Indoor800600500NEMA / UL Type 1, 12; IP66
APRO06860BCBlank door - Indoor800600600NEMA / UL Type 1, 4; IP66
APRO06860BOCBlank door - Outdoor800600600NEMA / UL Type 1, 4; IP66
APRO06860BVCGlass door - Indoor800600600NEMA / UL Type 1, 12; IP66

Browse our Selection of Wall-Mount Enclosures

Find the Perfect Fit for Your Application.

Contact our team of experts to discuss your project requirements and request a quote today.

Request a Quote
