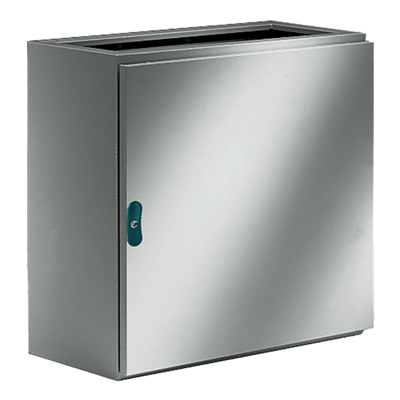

FranceAE Base
Technical features
Material
- enclosure and door: press-bent DC01 sheet steel
- mounting plate: sendzimir sheet steel
- Thickness: enclosure and door: 1.5 mm, base plate: 2.5 mm
Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.
Colour: textured RAL7035
Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained
Degree of protection: IP55, NEMA/UL Type 1, 12, 3R
Impact resistance rating: IK10
Supply
- enclosure
- front door (for base P=500mm, front door and rear door) with side stiffening strip and double flap locking system diam. 3.0mm
- mounting plate
- adjustable cable entry
To complete the configuration: TL cover and modular plinth

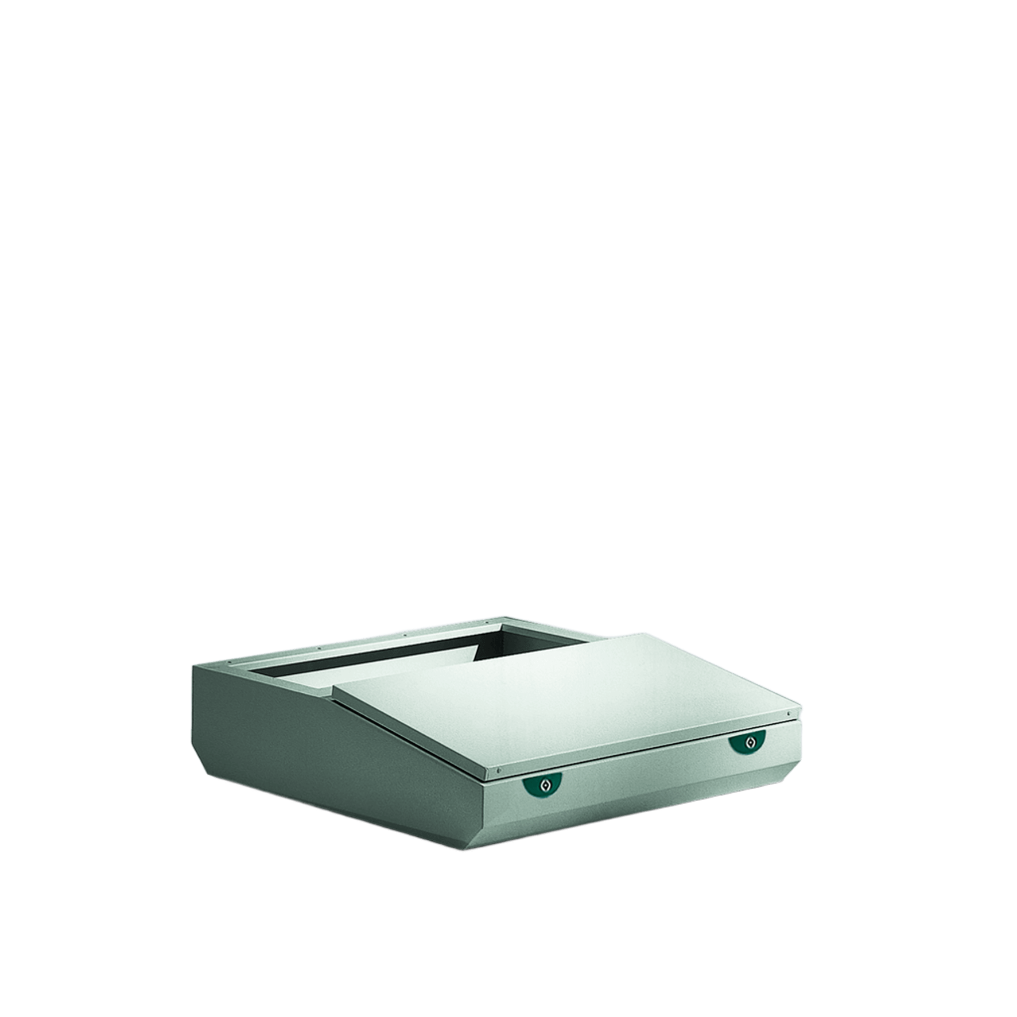

LE Shelf
Technical features
Material
- enclosure and upper panel: press-folded DC01 sheet steel
- profiles: sendzimir steel sheet
- thickness: casing 1.5 mm, top panel 2.0 mm
Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders
Colour: textured RAL7035
Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained
Degree of protection: IP55, NEMA/UL Type 1, 12, 3R
Impact resistance rating: IK10
Supply
- enclosure
- upper panel complete with 3.0 mm diameter double flap closure system, profiles and gas springs preventing accidental closure
- sealing gasket
- mounting accessories
PE Upper part
Technical features
Material
- enclosure and front panel: press-folded DC01 sheet steel
- mounting plate and vertical profiles: sendzimir sheet steel
- Thickness: casing 1.5 mm, base plate 2.5 mm, profiles 2.0 mm, front panel 2.0 mm
Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders
Colour: textured RAL7035
Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained
Degree of protection: IP55, NEMA/UL Type 1, 12, 3R
Impact resistance rating: IK10
Supply
- enclosure
- flip-up front panel (for lift P=500mm flip-up front and rear panel) complete with 3.0mm diameter double fin locking system, vertical profiles and mechanical stop on opening
- mounting plate with adjustment profiles
- sealing gasket
- mounting accessories
ME Shelf
Technical features
Material
- enclosure and upper panel: press-folded DC01 sheet steel
- profiles: sendzimir steel sheet
- Thickness: casing 1.5 mm, top panel 2.0 mm
Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders
Colour: textured RAL7035
Sealing gasket: two-component polyurethane foam, allowing the IP rating to be maintained
Degree of protection: IP55, NEMA/UL Type 1, 12, 3R
Impact resistance rating: IK10
Supply
- enclosure
- upper panel complete with 3.0 mm diameter double flap closure system, profiles and gas springs preventing accidental closure
- sealing gasket
- mounting accessories
Modular control desks
Code List
Filter by:
| Item # | Configuration | Height | Width | Depth | Add to Quote Cart |
|---|---|---|---|---|---|
| AE123 | Console base | 780 | 1200 | 400 | |
| AE1235 | Console base | 780 | 1200 | 500 | |
| AE164 | Console base | 780 | 1600 | 400 | |
| AE1645 | Console base | 780 | 1600 | 500 | |
| AE601 | Console base | 780 | 600 | 400 | |
| AE802 | Console base | 780 | 800 | 400 | |
| AE8025 | Console base | 780 | 800 | 500 | |
| LE123 | Top desk | 200 | 1200 | 835 | |
| LE1235 | Top desk | 200 | 1200 | 935 | |
| LE164 | Top desk | 200 | 1600 | 835 | |
| LE1645 | Top desk | 200 | 1600 | 935 | |
| LE601 | Top desk | 200 | 600 | 835 | |
| LE802 | Top desk | 200 | 800 | 835 | |
| LE8025 | Top desk | 200 | 800 | 835 | |
| ME123 | Top desk | 300 | 1200 | 650 | |
| ME1235 | Top desk | 300 | 1200 | 750 | |
| ME164 | Top desk | 300 | 1600 | 650 | |
| ME1645 | Top desk | 300 | 1600 | 750 | |
| ME601 | Top desk | 300 | 600 | 650 | |
| ME802 | Top desk | 300 | 800 | 650 | |
| ME8025 | Top desk | 300 | 800 | 750 | |
| PE123 | Upper part | 460 | 1200 | 400 | |
| PE1235 | Upper part | 460 | 1200 | 500 | |
| PE164 | Upper part | 460 | 1600 | 400 | |
| PE1645 | Upper part | 460 | 1600 | 500 | |
| PE601 | Upper part | 460 | 600 | 400 | |
| PE802 | Upper part | 460 | 800 | 400 | |
| PE8025 | Upper part | 460 | 800 | 500 |
Contact our team of experts to discuss your project requirements and request a quote today.
