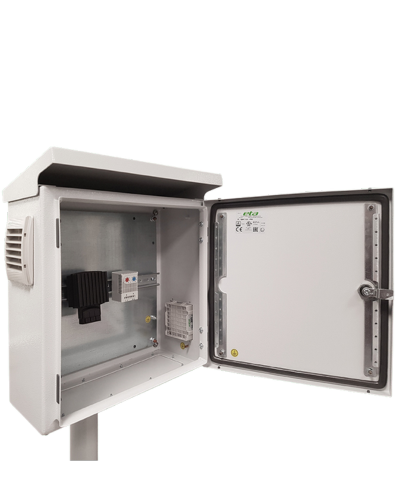

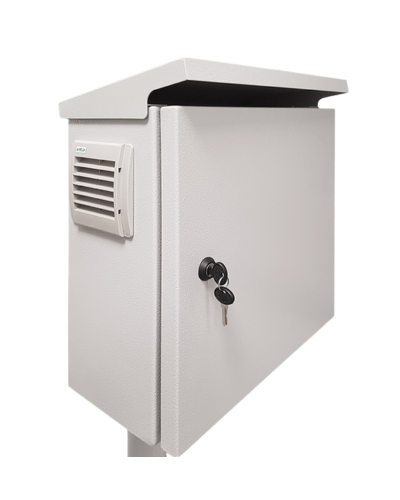

E COR VS Boxes

E COR VS enclosures combine strength, resistance and functionality with innovative design.

Suitable for applications in IT, Security and Video Surveillance with the pluses of the E COR range.

Produced in painted sheet steel, E COR enclosures are the result of years of study and research by our R&D laboratory, which has led to the creation of a construction concept based on the structured fold of the enclosure, a patented hinge system and a series of technical-structural devices that support the wiring at every stage.

Thanks to the high-performance material and the E DUP painting cycle, these enclosures offer exceptional durability, an increased IP rating and remarkable corrosion resistance.

Available in the following versions:

• Blank version;
• bottom right and top left perforated version for placement of WTSG010 grid and/or WTSV1000220 fan

• Structured casing fold, providing increased structural rigidity
• Increased internal capacity, thanks to the 7 mm added depth: this provides additional space for cabling
• RAL7035 textured DC01 sheet steel enclosure
• Cast polyurethane gasket, which provides durable protection against water ingress and allows the IP rating to be maintained
• Reversible front door with diam. 3.0mm double bit locking system with plastic inner cap and 2 welded reinforcement profiles, giving the structure greater rigidity
• Cable entry closure flange (with polyurethane gasket)
• E DUP painting cycle, with multi-phase double-layer cataphoresis for outstanding corrosion protection
• Quick installation of the internal wiring mounting plate
• Accessories compatibility with E COR enclosures ones

Available in 5 standard dimensions WXHXP (mm) for both versions:

• 300x400x200
• 400x500x250
• 400x600x250
• 600x400x300
• 600x600x300
