FranceE COMP Compact Cabinets
COMPACT SOLUTION FOR FREE-STANDING AND WALL-MOUNTED APPLICATIONSThe construction concept of E COMP makes the range a perfect link between the monobloc E MOX solutions and the wall-mounted E COR enclosures.
E COMP is designed to take full advantage of all the benefits of a fully welded construction and for applications where a medium-sized free-standing enclosure is required.
The robust technical features and ergonomic design of E COMP, with its modular cable entry, make it possible to integrate and complete the configuration with ETA standard accessories.

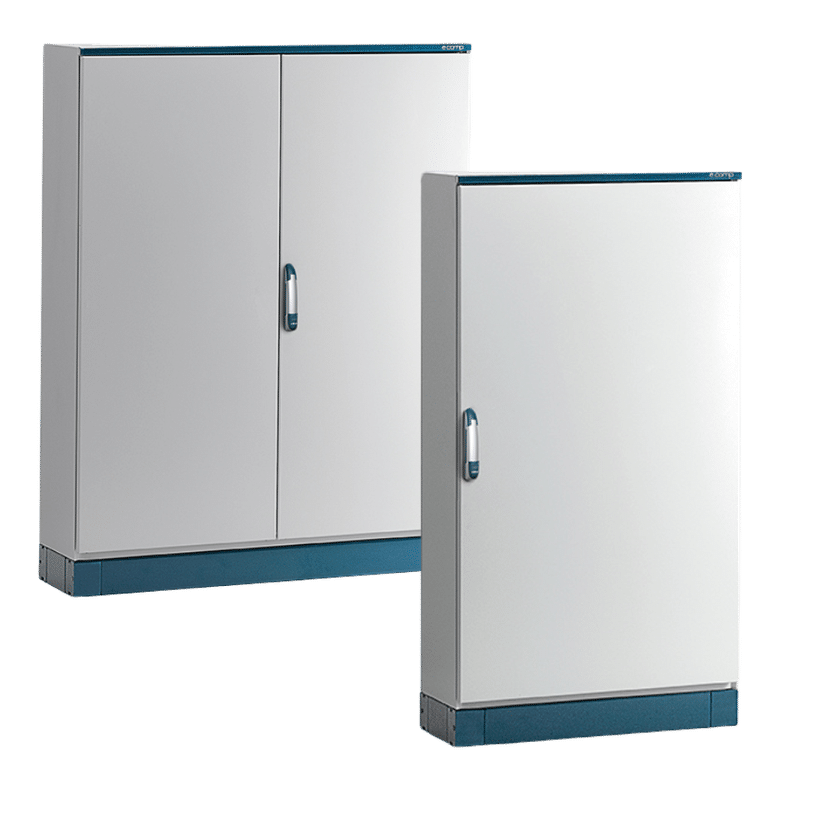

Solution available in versions

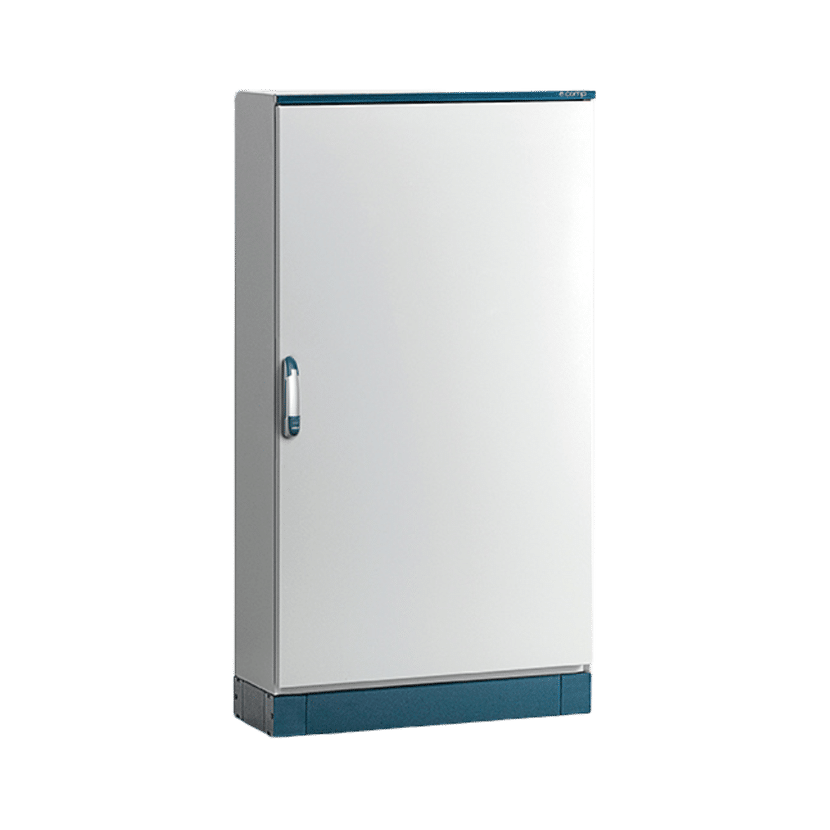

- single solid door + rear panel

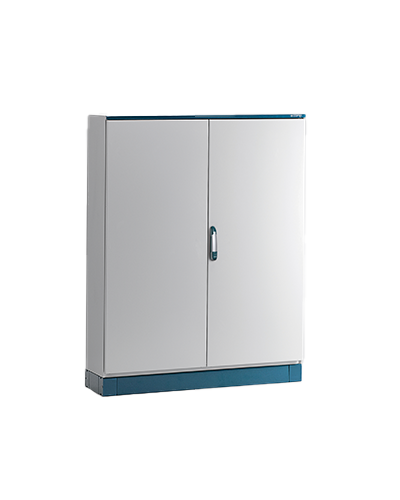

- double solid door + rear panel
- Fully welded enclosure and compact design
- Visual uniformity with E MOX monobloc solutions and E NUX modular system
- Space optimisation due to compact design, allowing electrical and electronic components to be housed in small spaces without compromising accessibility or functionality.
- Quick wiring: internal mounting plate included in delivery, including nylon skid for fastening
- Easy maintenance: simple design facilitates inspection, replacement and maintenance of components, reducing downtime.
- Innovative locking system: 3-point locking system with a fixed escutcheon and possibility of mounting different inserts
- Certified product: meeting industry standards and ensuring safety and reliability
- Versatile design
- Wide range of accessories
Technical features
E COMP cabinets are meticulously manufactured using a highly automated and specialised production process at every stage.
Material:
- enclosure: sheet steel DC01
- door: sheet steel with sendzimir reinforcement profiles (single door port L=800mm provided for complete reinforcement frame)
- mounting plate: sedzimir steel sheet
- Thickness: casing 1.5mm, door: 2.0mm, floor plate: 2.5mm
Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders
Colour:

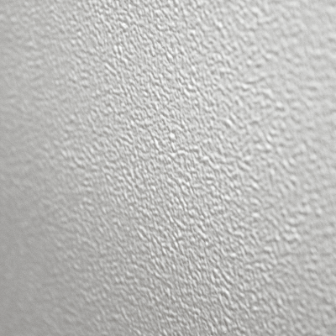

- enclosure and door: RAL7035 textured
- appearance profile: textured RAL5020
Sealing gasket: two-component polyurethane foam, maintaining IP rating
Degree of protection: IP55, NEMA/UL Type 1, 12, 3R
Impact resistance rating: IK10
Complementary accessories
- Modular plinth
- Interior door kit (frame and door)
- Rain canopy
- Lifting systems
- Wall fastening systems
- Internal profiles
- Door accessories
E COMP Compact cabinets
Code List
Filter by:
| Item # | Configuration | Height | Width | Depth | Environmental ratings | Add to Quote Cart |
|---|---|---|---|---|---|---|
| ECOMP101240 | Double blank door | 1209 | 1000 | 400 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP101430 | Double blank door | 1409 | 1000 | 300 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP101440 | Double blank door | 1209 | 1200 | 400 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP121240 | Double blank door | 1209 | 1200 | 400 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP121430 | Double blank door | 1409 | 1200 | 300 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP121440 | Double blank door | 1409 | 1200 | 400 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP61240 | Single blank door | 1209 | 600 | 400 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP61430 | Single blank door | 1409 | 600 | 300 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP61440 | Single blank door | 1409 | 600 | 400 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP81240 | Single blank door | 1209 | 800 | 400 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP81430 | Single blank door | 1409 | 800 | 300 | NEMA/UL TYPE 1, 12; IP55 | |
| ECOMP81440 | Single blank door | 1409 | 800 | 400 | NEMA/UL TYPE 1, 12; IP55 |
Contact our team of experts to discuss your project requirements and request a quote today.
