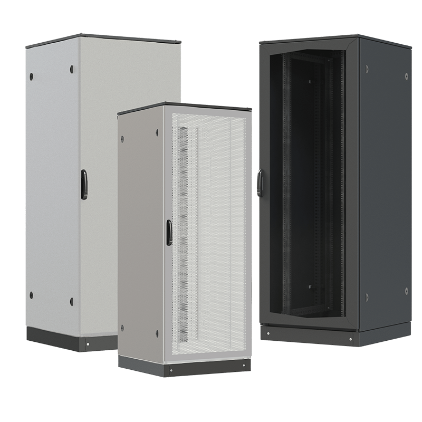

FranceABACUS EVO
Technology, Flexibility, DesignThe ABACUS EVO range of cabinets was born from the need to combine the requirements of the cabling and server worlds
The solution is designed for indoor applications; the main sectors are commercial buildings, smart cities, security and video surveillance, data centres and networking.
ABACUS EVO allows for infinite configurations and is fully customisable in size, composition and colour.
Front of the cabinet

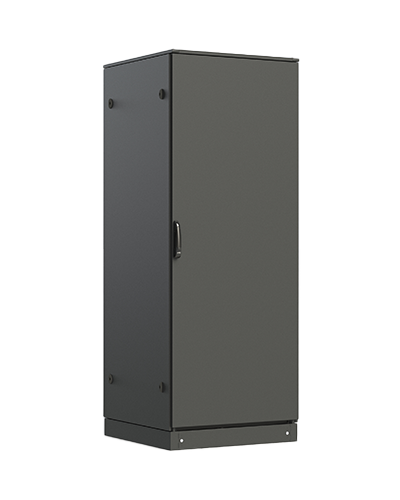

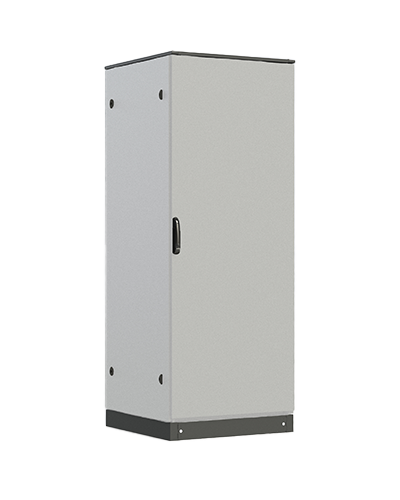

- single blankdoor

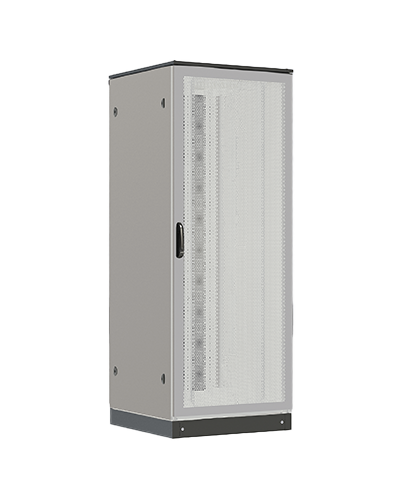

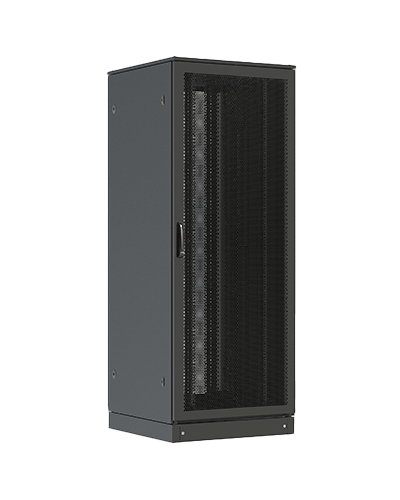

- single ventilated door

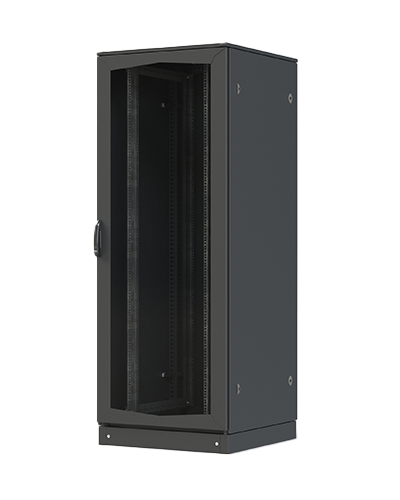

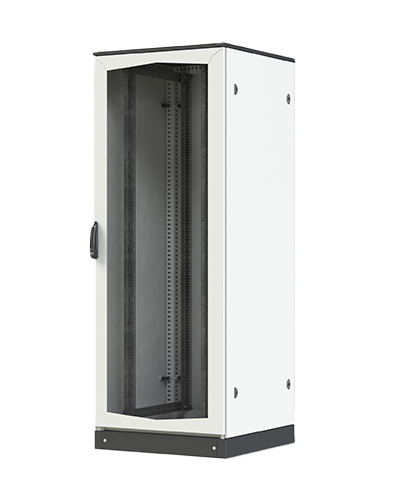

- single door with tempered glass
- double blank door

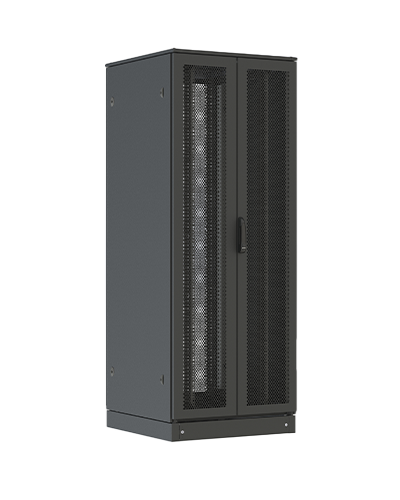

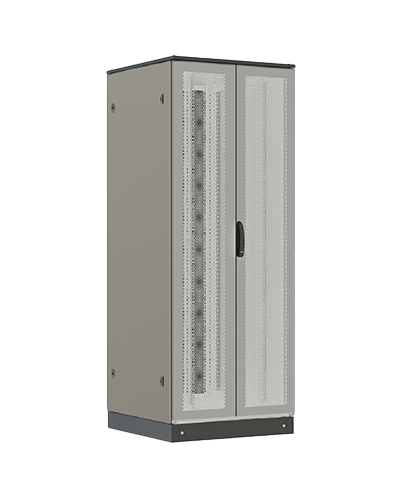

- double ventilated door
Rear of the cabinet
- blank panel
- single blank door
- single ventilated door
- single door with tempered glass
- double blank door
- double ventilated door
Colour
- RAL9011 textured
- RAL7035 textured
- the first 19'' rack cabinet with infinite configurations
- open view rack (version with glass door) to make the cabling system more usable
- fully demountable solution
- profile characterising uprights and roof/bottom crossbars
- Cabinets with D=600mm: frame, front 19'' rack uprights, plinth, bottom, door and panels
- Cabinets with D=800, 1000, 1200m: frame, front and rear 19'' rack uprights, plinth, bottom, door and panels
Browse and discover all the possibilities and choose your cabinet according to your specific project requirements.
Technical features & Composition
ABACUS EVO cabinets are meticulously manufactured using a highly automated and specialised production process at every stage.
Materials:
- structure (uprights, roof structure and bottom): HSLA high-strength steel plate
- panels and door: sheet steel DC01
- transparent door: tempered glass (where required)
- Thickness: structure 1.2mm, door and plinth 1.5mm, roof, pre-cut bottom, side walls 1.2mm, 19" rack uprights: 2.0mm
Painting: standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders
Colour:
- structure: RAL7035 smooth
- panel and door: RAL7035 textured/ RAL9011 textured (depending on configuration)
- roof and plinth: RAL9011 textured
- handle: RAL9011
Static load capacity: 1000 kg
Sealing gasket: two-component polyurethane foam, maintaining IP rating
Degree of protection: IP20, NEMA/UL Type 1
Impact resistance degree: IK10
ABACUS EVO Cabinets
Code List
Filter by:
Height (mm)
1207
1407
1607
1807
2007
2207
Height (mm)
1207
1407
1607
1807
2007
2207
Height (mm)
1207
1407
1607
1807
2007
2207
| Item # | Configuration | Height | Width | Depth | Add to Quote Cart |
|---|---|---|---|---|---|
| E62406AAG | Ventilated Door + Ventilated Door | 1207 | 611 | 613 | |
| E62406AAN | Ventilated Door + Ventilated Door | 1207 | 611 | 613 | |
| E62406ABG | Ventilated Door + Double Ventilated Door | 1207 | 611 | 613 | |
| E62406ABN | Ventilated Door + Double Ventilated Door | 1207 | 611 | 613 | |
| E62406BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 613 | |
| E62406BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 613 | |
| E62406CCG | Blank Door + Blank Door | 1207 | 611 | 613 | |
| E62406CCN | Blank Door + Blank Door | 1207 | 611 | 613 | |
| E62406CRG | Blank Door + Rear Panel | 1207 | 611 | 613 | |
| E62406CRN | Blank Door + Rear Panel | 1207 | 611 | 613 | |
| E62406VCG | Glazed Door + Blank Door | 1207 | 611 | 613 | |
| E62406VCN | Glazed Door + Blank Door | 1207 | 611 | 613 | |
| E62406VRG | Glazed Door + Rear Panel | 1207 | 611 | 613 | |
| E62406VRN | Glazed Door + Rear Panel | 1207 | 611 | 613 | |
| E62408AAG | Ventilated Door + Ventilated Door | 1207 | 611 | 813 | |
| E62408AAN | Ventilated Door + Ventilated Door | 1207 | 611 | 813 | |
| E62408ABG | Ventilated Door + Double Ventilated Door | 1207 | 611 | 813 | |
| E62408ABN | Ventilated Door + Double Ventilated Door | 1207 | 611 | 813 | |
| E62408BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 813 | |
| E62408BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 813 | |
| E62408CCG | Blank Door + Blank Door | 1207 | 611 | 813 | |
| E62408CCN | Blank Door + Blank Door | 1207 | 611 | 813 | |
| E62408CRG | Blank Door + Rear Panel | 1207 | 611 | 813 | |
| E62408CRN | Blank Door + Rear Panel | 1207 | 611 | 813 | |
| E62408VCG | Glazed Door + Blank Door | 1207 | 611 | 813 | |
| E62408VCN | Glazed Door + Blank Door | 1207 | 611 | 813 | |
| E62408VRG | Glazed Door + Rear Panel | 1207 | 611 | 813 | |
| E62408VRN | Glazed Door + Rear Panel | 1207 | 611 | 813 | |
| E62410AAG | Ventilated Door + Ventilated Door | 1207 | 611 | 1013 | |
| E62410AAN | Ventilated Door + Ventilated Door | 1207 | 611 | 1013 | |
| E62410ABG | Ventilated Door + Double Ventilated Door | 1207 | 611 | 1013 | |
| E62410ABN | Ventilated Door + Double Ventilated Door | 1207 | 611 | 1013 | |
| E62410BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 1013 | |
| E62410BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 1013 | |
| E62410CCG | Blank Door + Blank Door | 1207 | 611 | 1013 | |
| E62410CCN | Blank Door + Blank Door | 1207 | 611 | 1013 | |
| E62410CRG | Blank Door + Rear Panel | 1207 | 611 | 1013 | |
| E62410CRN | Blank Door + Rear Panel | 1207 | 611 | 1013 | |
| E62410VCG | Glazed Door + Blank Door | 1207 | 611 | 1013 | |
| E62410VCN | Glazed Door + Blank Door | 1207 | 611 | 1013 | |
| E62410VRG | Glazed Door + Rear Panel | 1207 | 611 | 1013 | |
| E62410VRN | Glazed Door + Rear Panel | 1207 | 611 | 1013 | |
| E62412AAG | Ventilated Door + Ventilated Door | 1207 | 611 | 1213 | |
| E62412AAN | Ventilated Door + Ventilated Door | 1207 | 611 | 1213 | |
| E62412ABG | Ventilated Door + Double Ventilated Door | 1207 | 611 | 1213 | |
| E62412ABN | Ventilated Door + Double Ventilated Door | 1207 | 611 | 1213 | |
| E62412BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 1213 | |
| E62412BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 611 | 1213 | |
| E62412CCG | Blank Door + Blank Door | 1207 | 611 | 1213 | |
| E62412CCN | Blank Door + Blank Door | 1207 | 611 | 1213 | |
| E62412CRG | Blank Door + Rear Panel | 1207 | 611 | 1213 | |
| E62412CRN | Blank Door + Rear Panel | 1207 | 611 | 1213 | |
| E62412VCG | Glazed Door + Blank Door | 1207 | 611 | 1213 | |
| E62412VCN | Glazed Door + Blank Door | 1207 | 611 | 1213 | |
| E62412VRG | Glazed Door + Rear Panel | 1207 | 611 | 1213 | |
| E62412VRN | Glazed Door + Rear Panel | 1207 | 611 | 1213 | |
| E62906AAG | Ventilated Door + Ventilated Door | 1407 | 611 | 613 | |
| E62906AAN | Ventilated Door + Ventilated Door | 1407 | 611 | 613 | |
| E62906ABG | Ventilated Door + Double Ventilated Door | 1407 | 611 | 613 | |
| E62906ABN | Ventilated Door + Double Ventilated Door | 1407 | 611 | 613 | |
| E62906BBG | Double Ventilated Door + Double Ventilated Door | 1407 | 611 | 613 | |
| E62906BBN | Double Ventilated Door + Double Ventilated Door | 1407 | 611 | 613 | |
| E62906CCG | Blank Door + Blank Door | 1407 | 611 | 613 | |
| E62906CCN | Blank Door + Blank Door | 1407 | 611 | 613 | |
| E62906CRG | Blank Door + Rear Panel | 1407 | 611 | 613 | |
| E62906CRN | Blank Door + Rear Panel | 1407 | 611 | 613 | |
| E62906VCG | Glazed Door + Blank Door | 1407 | 611 | 613 | |
| E62906VCN | Glazed Door + Blank Door | 1407 | 611 | 613 | |
| E62906VRG | Glazed Door + Rear Panel | 1407 | 611 | 613 | |
| E62906VRN | Glazed Door + Rear Panel | 1407 | 611 | 613 | |
| E62908AAG | Ventilated Door + Ventilated Door | 1407 | 611 | 813 | |
| E62908AAN | Ventilated Door + Ventilated Door | 1407 | 611 | 813 | |
| E62908ABG | Ventilated Door + Double Ventilated Door | 1407 | 611 | 813 | |
| E62908ABN | Ventilated Door + Double Ventilated Door | 1407 | 611 | 813 | |
| E62908BBG | Double Ventilated Door + Double Ventilated Door | 1407 | 611 | 813 | |
| E62908BBN | Double Ventilated Door + Double Ventilated Door | 1407 | 611 | 813 | |
| E62908CCG | Blank Door + Blank Door | 1407 | 611 | 813 | |
| E62908CCN | Blank Door + Blank Door | 1407 | 611 | 813 | |
| E62908CRG | Blank Door + Rear Panel | 1407 | 611 | 813 | |
| E62908CRN | Blank Door + Rear Panel | 1407 | 611 | 813 | |
| E62908VCG | Glazed Door + Blank Door | 1407 | 611 | 813 | |
| E62908VCN | Glazed Door + Blank Door | 1407 | 611 | 813 | |
| E62908VRG | Glazed Door + Rear Panel | 1407 | 611 | 813 | |
| E62908VRN | Glazed Door + Rear Panel | 1407 | 611 | 813 | |
| E63306AAG | Ventilated Door + Ventilated Door | 1607 | 611 | 613 | |
| E63306AAN | Ventilated Door + Ventilated Door | 1607 | 611 | 613 | |
| E63306ABG | Ventilated Door + Double Ventilated Door | 1607 | 611 | 613 | |
| E63306ABN | Ventilated Door + Double Ventilated Door | 1607 | 611 | 613 | |
| E63306BBG | Double Ventilated Door + Double Ventilated Door | 1607 | 611 | 613 | |
| E63306BBN | Double Ventilated Door + Double Ventilated Door | 1607 | 611 | 613 | |
| E63306CCG | Blank Door + Blank Door | 1607 | 611 | 613 | |
| E63306CCN | Blank Door + Blank Door | 1607 | 611 | 613 | |
| E63306CRG | Blank Door + Rear Panel | 1607 | 611 | 613 | |
| E63306CRN | Blank Door + Rear Panel | 1607 | 611 | 613 | |
| E63306VCG | Glazed Door + Blank Door | 1607 | 611 | 613 | |
| E63306VCN | Glazed Door + Blank Door | 1607 | 611 | 613 | |
| E63306VRG | Glazed Door + Rear Panel | 1607 | 611 | 613 | |
| E63306VRN | Glazed Door + Rear Panel | 1607 | 611 | 613 | |
| E63308AAG | Ventilated Door + Ventilated Door | 1607 | 611 | 813 | |
| E63308AAN | Ventilated Door + Ventilated Door | 1607 | 611 | 813 | |
| E63308ABG | Ventilated Door + Double Ventilated Door | 1607 | 611 | 813 | |
| E63308ABN | Ventilated Door + Double Ventilated Door | 1607 | 611 | 813 | |
| E63308BBG | Double Ventilated Door + Double Ventilated Door | 1607 | 611 | 813 | |
| E63308BBN | Double Ventilated Door + Double Ventilated Door | 1607 | 611 | 813 | |
| E63308CCG | Blank Door + Blank Door | 1607 | 611 | 813 | |
| E63308CCN | Blank Door + Blank Door | 1607 | 611 | 813 | |
| E63308CRG | Blank Door + Rear Panel | 1607 | 611 | 813 | |
| E63308CRN | Blank Door + Rear Panel | 1607 | 611 | 813 | |
| E63308VCG | Glazed Door + Blank Door | 1607 | 611 | 813 | |
| E63308VCN | Glazed Door + Blank Door | 1607 | 611 | 813 | |
| E63308VRG | Glazed Door + Rear Panel | 1607 | 611 | 813 | |
| E63308VRN | Glazed Door + Rear Panel | 1607 | 611 | 813 | |
| E63806AAG | Ventilated Door + Ventilated Door | 1807 | 611 | 613 | |
| E63806AAN | Ventilated Door + Ventilated Door | 1807 | 611 | 613 | |
| E63806ABG | Ventilated Door + Double Ventilated Door | 1807 | 611 | 613 | |
| E63806ABN | Ventilated Door + Double Ventilated Door | 1807 | 611 | 613 | |
| E63806BBG | Double Ventilated Door + Double Ventilated Door | 1807 | 611 | 613 | |
| E63806BBN | Double Ventilated Door + Double Ventilated Door | 1807 | 611 | 613 | |
| E63806CCG | Blank Door + Blank Door | 1807 | 611 | 613 | |
| E63806CCN | Blank Door + Blank Door | 1807 | 611 | 613 | |
| E63806CRG | Blank Door + Rear Panel | 1807 | 611 | 613 | |
| E63806CRN | Blank Door + Rear Panel | 1807 | 611 | 613 | |
| E63806VCG | Glazed Door + Blank Door | 1807 | 611 | 613 | |
| E63806VCN | Glazed Door + Blank Door | 1807 | 611 | 613 | |
| E63806VRG | Glazed Door + Rear Panel | 1807 | 611 | 613 | |
| E63806VRN | Glazed Door + Rear Panel | 1807 | 611 | 613 | |
| E63808AAG | Ventilated Door + Ventilated Door | 1807 | 611 | 813 | |
| E63808AAN | Ventilated Door + Ventilated Door | 1807 | 611 | 813 | |
| E63808ABG | Ventilated Door + Double Ventilated Door | 1807 | 611 | 813 | |
| E63808ABN | Ventilated Door + Double Ventilated Door | 1807 | 611 | 813 | |
| E63808BBG | Double Ventilated Door + Double Ventilated Door | 1807 | 611 | 813 | |
| E63808BBN | Double Ventilated Door + Double Ventilated Door | 1807 | 611 | 813 | |
| E63808CCG | Blank Door + Blank Door | 1807 | 611 | 813 | |
| E63808CCN | Blank Door + Blank Door | 1807 | 611 | 813 | |
| E63808CRG | Blank Door + Rear Panel | 1807 | 611 | 813 | |
| E63808CRN | Blank Door + Rear Panel | 1807 | 611 | 813 | |
| E63808VCG | Glazed Door + Blank Door | 1807 | 611 | 813 | |
| E63808VCN | Glazed Door + Blank Door | 1807 | 611 | 813 | |
| E63808VRG | Glazed Door + Rear Panel | 1807 | 611 | 813 | |
| E63808VRN | Glazed Door + Rear Panel | 1807 | 611 | 813 | |
| E64206AAG | Ventilated Door + Ventilated Door | 2007 | 611 | 613 | |
| E64206AAN | Ventilated Door + Ventilated Door | 2007 | 611 | 613 | |
| E64206ABG | Ventilated Door + Double Ventilated Door | 2007 | 611 | 613 | |
| E64206ABN | Ventilated Door + Double Ventilated Door | 2007 | 611 | 613 | |
| E64206BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 613 | |
| E64206BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 613 | |
| E64206CCG | Blank Door + Blank Door | 2007 | 611 | 613 | |
| E64206CCN | Blank Door + Blank Door | 2007 | 611 | 613 | |
| E64206CRG | Blank Door + Rear Panel | 2007 | 611 | 613 | |
| E64206CRN | Blank Door + Rear Panel | 2007 | 611 | 613 | |
| E64206VCG | Glazed Door + Blank Door | 2007 | 611 | 613 | |
| E64206VCN | Glazed Door + Blank Door | 2007 | 611 | 613 | |
| E64206VRG | Glazed Door + Rear Panel | 2007 | 611 | 613 | |
| E64206VRN | Glazed Door + Rear Panel | 2007 | 611 | 613 | |
| E64208AAG | Ventilated Door + Ventilated Door | 2007 | 611 | 813 | |
| E64208AAN | Ventilated Door + Ventilated Door | 2007 | 611 | 813 | |
| E64208ABG | Ventilated Door + Double Ventilated Door | 2007 | 611 | 813 | |
| E64208ABN | Ventilated Door + Double Ventilated Door | 2007 | 611 | 813 | |
| E64208BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 813 | |
| E64208BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 813 | |
| E64208CCG | Blank Door + Blank Door | 2007 | 611 | 813 | |
| E64208CCN | Blank Door + Blank Door | 2007 | 611 | 813 | |
| E64208CRG | Blank Door + Rear Panel | 2007 | 611 | 813 | |
| E64208CRN | Blank Door + Rear Panel | 2007 | 611 | 813 | |
| E64208VCG | Glazed Door + Blank Door | 2007 | 611 | 813 | |
| E64208VCN | Glazed Door + Blank Door | 2007 | 611 | 813 | |
| E64208VRG | Glazed Door + Rear Panel | 2007 | 611 | 813 | |
| E64208VRN | Glazed Door + Rear Panel | 2007 | 611 | 813 | |
| E64210AAG | Ventilated Door + Ventilated Door | 2007 | 611 | 1013 | |
| E64210AAN | Ventilated Door + Ventilated Door | 2007 | 611 | 1013 | |
| E64210ABG | Ventilated Door + Double Ventilated Door | 2007 | 611 | 1013 | |
| E64210ABN | Ventilated Door + Double Ventilated Door | 2007 | 611 | 1013 | |
| E64210BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 1013 | |
| E64210BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 1013 | |
| E64210CCG | Blank Door + Blank Door | 2007 | 611 | 1013 | |
| E64210CCN | Blank Door + Blank Door | 2007 | 611 | 1013 | |
| E64210CRG | Blank Door + Rear Panel | 2007 | 611 | 1013 | |
| E64210CRN | Blank Door + Rear Panel | 2007 | 611 | 1013 | |
| E64210VCG | Glazed Door + Blank Door | 2007 | 611 | 1013 | |
| E64210VCN | Glazed Door + Blank Door | 2007 | 611 | 1013 | |
| E64210VRG | Glazed Door + Rear Panel | 2007 | 611 | 1013 | |
| E64210VRN | Glazed Door + Rear Panel | 2007 | 611 | 1013 | |
| E64212AAG | Ventilated Door + Ventilated Door | 2007 | 611 | 1213 | |
| E64212AAN | Ventilated Door + Ventilated Door | 2007 | 611 | 1213 | |
| E64212ABG | Ventilated Door + Double Ventilated Door | 2007 | 611 | 1213 | |
| E64212ABN | Ventilated Door + Double Ventilated Door | 2007 | 611 | 1213 | |
| E64212BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 1213 | |
| E64212BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 611 | 1213 | |
| E64212CCG | Blank Door + Blank Door | 2007 | 611 | 1213 | |
| E64212CCN | Blank Door + Blank Door | 2007 | 611 | 1213 | |
| E64212CRG | Blank Door + Rear Panel | 2007 | 611 | 1213 | |
| E64212CRN | Blank Door + Rear Panel | 2007 | 611 | 1213 | |
| E64212VCG | Glazed Door + Blank Door | 2007 | 611 | 1213 | |
| E64212VCN | Glazed Door + Blank Door | 2007 | 611 | 1213 | |
| E64212VRG | Glazed Door + Rear Panel | 2007 | 611 | 1213 | |
| E64212VRN | Glazed Door + Rear Panel | 2007 | 611 | 1213 | |
| E64706AAG | Ventilated Door + Ventilated Door | 2207 | 611 | 613 | |
| E64706AAN | Ventilated Door + Ventilated Door | 2207 | 611 | 613 | |
| E64706ABG | Ventilated Door + Double Ventilated Door | 2207 | 611 | 613 | |
| E64706ABN | Ventilated Door + Double Ventilated Door | 2207 | 611 | 613 | |
| E64706BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 613 | |
| E64706BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 613 | |
| E64706CCG | Blank Door + Blank Door | 2207 | 611 | 613 | |
| E64706CCN | Blank Door + Blank Door | 2207 | 611 | 613 | |
| E64706CRG | Blank Door + Rear Panel | 2207 | 611 | 613 | |
| E64706CRN | Blank Door + Rear Panel | 2207 | 611 | 613 | |
| E64706VCG | Glazed Door + Blank Door | 2207 | 611 | 613 | |
| E64706VCN | Glazed Door + Blank Door | 2207 | 611 | 613 | |
| E64706VRG | Glazed Door + Rear Panel | 2207 | 611 | 613 | |
| E64706VRN | Glazed Door + Rear Panel | 2207 | 611 | 613 | |
| E64708AAG | Ventilated Door + Ventilated Door | 2207 | 611 | 813 | |
| E64708AAN | Ventilated Door + Ventilated Door | 2207 | 611 | 813 | |
| E64708ABG | Ventilated Door + Double Ventilated Door | 2207 | 611 | 813 | |
| E64708ABN | Ventilated Door + Double Ventilated Door | 2207 | 611 | 813 | |
| E64708BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 813 | |
| E64708BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 813 | |
| E64708CCG | Blank Door + Blank Door | 2207 | 611 | 813 | |
| E64708CCN | Blank Door + Blank Door | 2207 | 611 | 813 | |
| E64708CRG | Blank Door + Rear Panel | 2207 | 611 | 813 | |
| E64708CRN | Blank Door + Rear Panel | 2207 | 611 | 813 | |
| E64708VCG | Glazed Door + Blank Door | 2207 | 611 | 813 | |
| E64708VCN | Glazed Door + Blank Door | 2207 | 611 | 813 | |
| E64708VRG | Glazed Door + Rear Panel | 2207 | 611 | 813 | |
| E64708VRN | Glazed Door + Rear Panel | 2207 | 611 | 813 | |
| E64710AAG | Ventilated Door + Ventilated Door | 2207 | 611 | 1013 | |
| E64710AAN | Ventilated Door + Ventilated Door | 2207 | 611 | 1013 | |
| E64710ABG | Ventilated Door + Double Ventilated Door | 2207 | 611 | 1013 | |
| E64710ABN | Ventilated Door + Double Ventilated Door | 2207 | 611 | 1013 | |
| E64710BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 1013 | |
| E64710BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 1013 | |
| E64710CCG | Blank Door + Blank Door | 2207 | 611 | 1013 | |
| E64710CCN | Blank Door + Blank Door | 2207 | 611 | 1013 | |
| E64710CRG | Blank Door + Rear Panel | 2207 | 611 | 1013 | |
| E64710CRN | Blank Door + Rear Panel | 2207 | 611 | 1013 | |
| E64710VCG | Glazed Door + Blank Door | 2207 | 611 | 1013 | |
| E64710VCN | Glazed Door + Blank Door | 2207 | 611 | 1013 | |
| E64710VRG | Glazed Door + Rear Panel | 2207 | 611 | 1013 | |
| E64710VRN | Glazed Door + Rear Panel | 2207 | 611 | 1013 | |
| E64712AAG | Ventilated Door + Ventilated Door | 2207 | 611 | 1213 | |
| E64712AAN | Ventilated Door + Ventilated Door | 2207 | 611 | 1213 | |
| E64712ABG | Ventilated Door + Double Ventilated Door | 2207 | 611 | 1213 | |
| E64712ABN | Ventilated Door + Double Ventilated Door | 2207 | 611 | 1213 | |
| E64712BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 1213 | |
| E64712BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 611 | 1213 | |
| E64712CCG | Blank Door + Blank Door | 2207 | 611 | 1213 | |
| E64712CCN | Blank Door + Blank Door | 2207 | 611 | 1213 | |
| E64712CRG | Blank Door + Rear Panel | 2207 | 611 | 1213 | |
| E64712CRN | Blank Door + Rear Panel | 2207 | 611 | 1213 | |
| E64712VCG | Glazed Door + Blank Door | 2207 | 611 | 1213 | |
| E64712VCN | Glazed Door + Blank Door | 2207 | 611 | 1213 | |
| E64712VRG | Glazed Door + Rear Panel | 2207 | 611 | 1213 | |
| E64712VRN | Glazed Door + Rear Panel | 2207 | 611 | 1213 | |
| E82406AAG | Ventilated Door + Ventilated Door | 1207 | 811 | 613 | |
| E82406AAN | Ventilated Door + Ventilated Door | 1207 | 811 | 613 | |
| E82406ABG | Ventilated Door + Double Ventilated Door | 1207 | 811 | 613 | |
| E82406ABN | Ventilated Door + Double Ventilated Door | 1207 | 811 | 613 | |
| E82406BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 613 | |
| E82406BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 613 | |
| E82406CCG | Blank Door + Blank Door | 1207 | 811 | 613 | |
| E82406CCN | Blank Door + Blank Door | 1207 | 811 | 613 | |
| E82406CRG | Blank Door + Rear Panel | 1207 | 811 | 613 | |
| E82406CRN | Blank Door + Rear Panel | 1207 | 811 | 613 | |
| E82406VCG | Glazed Door + Blank Door | 1207 | 811 | 613 | |
| E82406VCN | Glazed Door + Blank Door | 1207 | 811 | 613 | |
| E82406VRG | Glazed Door + Rear Panel | 1207 | 811 | 613 | |
| E82406VRN | Glazed Door + Rear Panel | 1207 | 811 | 613 | |
| E82408AAG | Ventilated Door + Ventilated Door | 1207 | 811 | 813 | |
| E82408AAN | Ventilated Door + Ventilated Door | 1207 | 811 | 813 | |
| E82408ABG | Ventilated Door + Double Ventilated Door | 1207 | 811 | 813 | |
| E82408ABN | Ventilated Door + Double Ventilated Door | 1207 | 811 | 813 | |
| E82408BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 813 | |
| E82408BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 813 | |
| E82408CCG | Blank Door + Blank Door | 1207 | 811 | 813 | |
| E82408CCN | Blank Door + Blank Door | 1207 | 811 | 813 | |
| E82408CRG | Blank Door + Rear Panel | 1207 | 811 | 813 | |
| E82408CRN | Blank Door + Rear Panel | 1207 | 811 | 813 | |
| E82408VCG | Glazed Door + Blank Door | 1207 | 811 | 813 | |
| E82408VCN | Glazed Door + Blank Door | 1207 | 811 | 813 | |
| E82408VRG | Glazed Door + Rear Panel | 1207 | 811 | 813 | |
| E82408VRN | Glazed Door + Rear Panel | 1207 | 811 | 813 | |
| E82410AAG | Ventilated Door + Ventilated Door | 1207 | 811 | 1013 | |
| E82410AAN | Ventilated Door + Ventilated Door | 1207 | 811 | 1013 | |
| E82410ABG | Ventilated Door + Double Ventilated Door | 1207 | 811 | 1013 | |
| E82410ABN | Ventilated Door + Double Ventilated Door | 1207 | 811 | 1013 | |
| E82410BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 1013 | |
| E82410BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 1013 | |
| E82410CCG | Blank Door + Blank Door | 1207 | 811 | 1013 | |
| E82410CCN | Blank Door + Blank Door | 1207 | 811 | 1013 | |
| E82410CRG | Blank Door + Rear Panel | 1207 | 811 | 1013 | |
| E82410CRN | Blank Door + Rear Panel | 1207 | 811 | 1013 | |
| E82410VCG | Glazed Door + Blank Door | 1207 | 811 | 1013 | |
| E82410VCN | Glazed Door + Blank Door | 1207 | 811 | 1013 | |
| E82410VRG | Glazed Door + Rear Panel | 1207 | 811 | 1013 | |
| E82410VRN | Glazed Door + Rear Panel | 1207 | 811 | 1013 | |
| E82412AAG | Ventilated Door + Ventilated Door | 1207 | 811 | 1213 | |
| E82412AAN | Ventilated Door + Ventilated Door | 1207 | 811 | 1213 | |
| E82412ABG | Ventilated Door + Double Ventilated Door | 1207 | 811 | 1213 | |
| E82412ABN | Ventilated Door + Double Ventilated Door | 1207 | 811 | 1213 | |
| E82412BBG | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 1213 | |
| E82412BBN | Double Ventilated Door + Double Ventilated Door | 1207 | 811 | 1213 | |
| E82412CCG | Blank Door + Blank Door | 1207 | 811 | 1213 | |
| E82412CCN | Blank Door + Blank Door | 1207 | 811 | 1213 | |
| E82412CRG | Blank Door + Rear Panel | 1207 | 811 | 1213 | |
| E82412CRN | Blank Door + Rear Panel | 1207 | 811 | 1213 | |
| E82412VCG | Glazed Door + Blank Door | 1207 | 811 | 1213 | |
| E82412VCN | Glazed Door + Blank Door | 1207 | 811 | 1213 | |
| E82412VRG | Glazed Door + Rear Panel | 1207 | 811 | 1213 | |
| E82412VRN | Glazed Door + Rear Panel | 1207 | 811 | 1213 | |
| E82906AAG | Ventilated Door + Ventilated Door | 1407 | 811 | 613 | |
| E82906AAN | Ventilated Door + Ventilated Door | 1407 | 811 | 613 | |
| E82906ABG | Ventilated Door + Double Ventilated Door | 1407 | 811 | 613 | |
| E82906ABN | Ventilated Door + Double Ventilated Door | 1407 | 811 | 613 | |
| E82906BBG | Double Ventilated Door + Double Ventilated Door | 1407 | 811 | 613 | |
| E82906BBN | Double Ventilated Door + Double Ventilated Door | 1407 | 811 | 613 | |
| E82906CCG | Blank Door + Blank Door | 1407 | 811 | 613 | |
| E82906CCN | Blank Door + Blank Door | 1407 | 811 | 613 | |
| E82906CRG | Blank Door + Rear Panel | 1407 | 811 | 613 | |
| E82906CRN | Blank Door + Rear Panel | 1407 | 811 | 613 | |
| E82906VCG | Glazed Door + Blank Door | 1407 | 811 | 613 | |
| E82906VCN | Glazed Door + Blank Door | 1407 | 811 | 613 | |
| E82906VRG | Glazed Door + Rear Panel | 1407 | 811 | 613 | |
| E82906VRN | Glazed Door + Rear Panel | 1407 | 811 | 613 | |
| E82908AAG | Ventilated Door + Ventilated Door | 1407 | 811 | 813 | |
| E82908AAN | Ventilated Door + Ventilated Door | 1407 | 811 | 813 | |
| E82908ABG | Ventilated Door + Double Ventilated Door | 1407 | 811 | 813 | |
| E82908ABN | Ventilated Door + Double Ventilated Door | 1407 | 811 | 813 | |
| E82908BBG | Double Ventilated Door + Double Ventilated Door | 1407 | 811 | 813 | |
| E82908BBN | Double Ventilated Door + Double Ventilated Door | 1407 | 811 | 813 | |
| E82908CCG | Blank Door + Blank Door | 1407 | 811 | 813 | |
| E82908CCN | Blank Door + Blank Door | 1407 | 811 | 813 | |
| E82908CRG | Blank Door + Rear Panel | 1407 | 811 | 813 | |
| E82908CRN | Blank Door + Rear Panel | 1407 | 811 | 813 | |
| E82908VCG | Glazed Door + Blank Door | 1407 | 811 | 813 | |
| E82908VCN | Glazed Door + Blank Door | 1407 | 811 | 813 | |
| E82908VRG | Glazed Door + Rear Panel | 1407 | 811 | 813 | |
| E82908VRN | Glazed Door + Rear Panel | 1407 | 811 | 813 | |
| E83306AAG | Ventilated Door + Ventilated Door | 1607 | 811 | 613 | |
| E83306AAN | Ventilated Door + Ventilated Door | 1607 | 811 | 613 | |
| E83306ABG | Ventilated Door + Double Ventilated Door | 1607 | 811 | 613 | |
| E83306ABN | Ventilated Door + Double Ventilated Door | 1607 | 811 | 613 | |
| E83306BBG | Double Ventilated Door + Double Ventilated Door | 1607 | 811 | 613 | |
| E83306BBN | Double Ventilated Door + Double Ventilated Door | 1607 | 811 | 613 | |
| E83306CCG | Blank Door + Blank Door | 1607 | 811 | 613 | |
| E83306CCN | Blank Door + Blank Door | 1607 | 811 | 613 | |
| E83306CRG | Blank Door + Rear Panel | 1607 | 811 | 613 | |
| E83306CRN | Blank Door + Rear Panel | 1607 | 811 | 613 | |
| E83306VCG | Glazed Door + Blank Door | 1607 | 811 | 613 | |
| E83306VCN | Glazed Door + Blank Door | 1607 | 811 | 613 | |
| E83306VRG | Glazed Door + Rear Panel | 1607 | 811 | 613 | |
| E83306VRN | Glazed Door + Rear Panel | 1607 | 811 | 613 | |
| E83308AAG | Ventilated Door + Ventilated Door | 1607 | 811 | 813 | |
| E83308AAN | Ventilated Door + Ventilated Door | 1607 | 811 | 813 | |
| E83308ABG | Ventilated Door + Double Ventilated Door | 1607 | 811 | 813 | |
| E83308ABN | Ventilated Door + Double Ventilated Door | 1607 | 811 | 813 | |
| E83308BBG | Double Ventilated Door + Double Ventilated Door | 1607 | 811 | 813 | |
| E83308BBN | Double Ventilated Door + Double Ventilated Door | 1607 | 811 | 813 | |
| E83308CCG | Blank Door + Blank Door | 1607 | 811 | 813 | |
| E83308CCN | Blank Door + Blank Door | 1607 | 811 | 813 | |
| E83308CRG | Blank Door + Rear Panel | 1607 | 811 | 813 | |
| E83308CRN | Blank Door + Rear Panel | 1607 | 811 | 813 | |
| E83308VCG | Glazed Door + Blank Door | 1607 | 811 | 813 | |
| E83308VCN | Glazed Door + Blank Door | 1607 | 811 | 813 | |
| E83308VRG | Glazed Door + Rear Panel | 1607 | 811 | 813 | |
| E83308VRN | Glazed Door + Rear Panel | 1607 | 811 | 813 | |
| E83806AAG | Ventilated Door + Ventilated Door | 1807 | 811 | 613 | |
| E83806AAN | Ventilated Door + Ventilated Door | 1807 | 811 | 613 | |
| E83806ABG | Ventilated Door + Double Ventilated Door | 1807 | 811 | 613 | |
| E83806ABN | Ventilated Door + Double Ventilated Door | 1807 | 811 | 613 | |
| E83806BBG | Double Ventilated Door + Double Ventilated Door | 1807 | 811 | 613 | |
| E83806BBN | Double Ventilated Door + Double Ventilated Door | 1807 | 811 | 613 | |
| E83806CCG | Blank Door + Blank Door | 1807 | 811 | 613 | |
| E83806CCN | Blank Door + Blank Door | 1807 | 811 | 613 | |
| E83806CRG | Blank Door + Rear Panel | 1807 | 811 | 613 | |
| E83806CRN | Blank Door + Rear Panel | 1807 | 811 | 613 | |
| E83806VCG | Glazed Door + Blank Door | 1807 | 811 | 613 | |
| E83806VCN | Glazed Door + Blank Door | 1807 | 811 | 613 | |
| E83806VRG | Glazed Door + Rear Panel | 1807 | 811 | 613 | |
| E83806VRN | Glazed Door + Rear Panel | 1807 | 811 | 613 | |
| E83808AAG | Ventilated Door + Ventilated Door | 1807 | 811 | 813 | |
| E83808AAN | Ventilated Door + Ventilated Door | 1807 | 811 | 813 | |
| E83808ABG | Ventilated Door + Double Ventilated Door | 1807 | 811 | 813 | |
| E83808ABN | Ventilated Door + Double Ventilated Door | 1807 | 811 | 813 | |
| E83808BBG | Double Ventilated Door + Double Ventilated Door | 1807 | 811 | 813 | |
| E83808BBN | Double Ventilated Door + Double Ventilated Door | 1807 | 811 | 813 | |
| E83808CCG | Blank Door + Blank Door | 1807 | 811 | 813 | |
| E83808CCN | Blank Door + Blank Door | 1807 | 811 | 813 | |
| E83808CRG | Blank Door + Rear Panel | 1807 | 811 | 813 | |
| E83808CRN | Blank Door + Rear Panel | 1807 | 811 | 813 | |
| E83808VCG | Glazed Door + Blank Door | 1807 | 811 | 813 | |
| E83808VCN | Glazed Door + Blank Door | 1807 | 811 | 813 | |
| E83808VRG | Glazed Door + Rear Panel | 1807 | 811 | 813 | |
| E83808VRN | Glazed Door + Rear Panel | 1807 | 811 | 813 | |
| E84206AAG | Ventilated Door + Ventilated Door | 2007 | 811 | 613 | |
| E84206AAN | Ventilated Door + Ventilated Door | 2007 | 811 | 613 | |
| E84206ABG | Ventilated Door + Double Ventilated Door | 2007 | 811 | 613 | |
| E84206ABN | Ventilated Door + Double Ventilated Door | 2007 | 811 | 613 | |
| E84206BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 613 | |
| E84206BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 613 | |
| E84206CCG | Blank Door + Blank Door | 2007 | 811 | 613 | |
| E84206CCN | Blank Door + Blank Door | 2007 | 811 | 613 | |
| E84206CRG | Blank Door + Rear Panel | 2007 | 811 | 613 | |
| E84206CRN | Blank Door + Rear Panel | 2007 | 811 | 613 | |
| E84206VCG | Glazed Door + Blank Door | 2007 | 811 | 613 | |
| E84206VCN | Glazed Door + Blank Door | 2007 | 811 | 613 | |
| E84206VRG | Glazed Door + Rear Panel | 2007 | 811 | 613 | |
| E84206VRN | Glazed Door + Rear Panel | 2007 | 811 | 613 | |
| E84208AAG | Ventilated Door + Ventilated Door | 2007 | 811 | 813 | |
| E84208AAN | Ventilated Door + Ventilated Door | 2007 | 811 | 813 | |
| E84208ABG | Ventilated Door + Double Ventilated Door | 2007 | 811 | 813 | |
| E84208ABN | Ventilated Door + Double Ventilated Door | 2007 | 811 | 813 | |
| E84208BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 813 | |
| E84208BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 813 | |
| E84208CCG | Blank Door + Blank Door | 2007 | 811 | 813 | |
| E84208CCN | Blank Door + Blank Door | 2007 | 811 | 813 | |
| E84208CRG | Blank Door + Rear Panel | 2007 | 811 | 813 | |
| E84208CRN | Blank Door + Rear Panel | 2007 | 811 | 813 | |
| E84208VCG | Glazed Door + Blank Door | 2007 | 811 | 813 | |
| E84208VCN | Glazed Door + Blank Door | 2007 | 811 | 813 | |
| E84208VRG | Glazed Door + Rear Panel | 2007 | 811 | 813 | |
| E84208VRN | Glazed Door + Rear Panel | 2007 | 811 | 813 | |
| E84210AAG | Ventilated Door + Ventilated Door | 2007 | 811 | 1013 | |
| E84210AAN | Ventilated Door + Ventilated Door | 2007 | 811 | 1013 | |
| E84210ABG | Ventilated Door + Double Ventilated Door | 2007 | 811 | 1013 | |
| E84210ABN | Ventilated Door + Double Ventilated Door | 2007 | 811 | 1013 | |
| E84210BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 1013 | |
| E84210BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 1013 | |
| E84210CCG | Blank Door + Blank Door | 2007 | 811 | 1013 | |
| E84210CCN | Blank Door + Blank Door | 2007 | 811 | 1013 | |
| E84210CRG | Blank Door + Rear Panel | 2007 | 811 | 1013 | |
| E84210CRN | Blank Door + Rear Panel | 2007 | 811 | 1013 | |
| E84210VCG | Glazed Door + Blank Door | 2007 | 811 | 1013 | |
| E84210VCN | Glazed Door + Blank Door | 2007 | 811 | 1013 | |
| E84210VRG | Glazed Door + Rear Panel | 2007 | 811 | 1013 | |
| E84210VRN | Glazed Door + Rear Panel | 2007 | 811 | 1013 | |
| E84212AAG | Ventilated Door + Ventilated Door | 2007 | 811 | 1213 | |
| E84212AAN | Ventilated Door + Ventilated Door | 2007 | 811 | 1213 | |
| E84212ABG | Ventilated Door + Double Ventilated Door | 2007 | 811 | 1213 | |
| E84212ABN | Ventilated Door + Double Ventilated Door | 2007 | 811 | 1213 | |
| E84212BBG | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 1213 | |
| E84212BBN | Double Ventilated Door + Double Ventilated Door | 2007 | 811 | 1213 | |
| E84212CCG | Blank Door + Blank Door | 2007 | 811 | 1213 | |
| E84212CCN | Blank Door + Blank Door | 2007 | 811 | 1213 | |
| E84212CRG | Blank Door + Rear Panel | 2007 | 811 | 1213 | |
| E84212CRN | Blank Door + Rear Panel | 2007 | 811 | 1213 | |
| E84212VCG | Glazed Door + Blank Door | 2007 | 811 | 1213 | |
| E84212VCN | Glazed Door + Blank Door | 2007 | 811 | 1213 | |
| E84212VRG | Glazed Door + Rear Panel | 2007 | 811 | 1213 | |
| E84212VRN | Glazed Door + Rear Panel | 2007 | 811 | 1213 | |
| E84706AAG | Ventilated Door + Ventilated Door | 2207 | 811 | 613 | |
| E84706AAN | Ventilated Door + Ventilated Door | 2207 | 811 | 613 | |
| E84706ABG | Ventilated Door + Double Ventilated Door | 2207 | 811 | 613 | |
| E84706ABN | Ventilated Door + Double Ventilated Door | 2207 | 811 | 613 | |
| E84706BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 613 | |
| E84706BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 613 | |
| E84706CCG | Blank Door + Blank Door | 2207 | 811 | 613 | |
| E84706CCN | Blank Door + Blank Door | 2207 | 811 | 613 | |
| E84706CRG | Blank Door + Rear Panel | 2207 | 811 | 613 | |
| E84706CRN | Blank Door + Rear Panel | 2207 | 811 | 613 | |
| E84706VCG | Glazed Door + Blank Door | 2207 | 811 | 613 | |
| E84706VCN | Glazed Door + Blank Door | 2207 | 811 | 613 | |
| E84706VRG | Glazed Door + Rear Panel | 2207 | 811 | 613 | |
| E84706VRN | Glazed Door + Rear Panel | 2207 | 811 | 613 | |
| E84708AAG | Ventilated Door + Ventilated Door | 2207 | 811 | 813 | |
| E84708AAN | Ventilated Door + Ventilated Door | 2207 | 811 | 813 | |
| E84708ABG | Ventilated Door + Double Ventilated Door | 2207 | 811 | 813 | |
| E84708ABN | Ventilated Door + Double Ventilated Door | 2207 | 811 | 813 | |
| E84708BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 813 | |
| E84708BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 813 | |
| E84708CCG | Blank Door + Blank Door | 2207 | 811 | 813 | |
| E84708CCN | Blank Door + Blank Door | 2207 | 811 | 813 | |
| E84708CRG | Blank Door + Rear Panel | 2207 | 811 | 813 | |
| E84708CRN | Blank Door + Rear Panel | 2207 | 811 | 813 | |
| E84708VCG | Glazed Door + Blank Door | 2207 | 811 | 813 | |
| E84708VCN | Glazed Door + Blank Door | 2207 | 811 | 813 | |
| E84708VRG | Glazed Door + Rear Panel | 2207 | 811 | 813 | |
| E84708VRN | Glazed Door + Rear Panel | 2207 | 811 | 813 | |
| E84710AAG | Ventilated Door + Ventilated Door | 2207 | 811 | 1013 | |
| E84710AAN | Ventilated Door + Ventilated Door | 2207 | 811 | 1013 | |
| E84710ABG | Ventilated Door + Double Ventilated Door | 2207 | 811 | 1013 | |
| E84710ABN | Ventilated Door + Double Ventilated Door | 2207 | 811 | 1013 | |
| E84710BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 1013 | |
| E84710BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 1013 | |
| E84710CCG | Blank Door + Blank Door | 2207 | 811 | 1013 | |
| E84710CCN | Blank Door + Blank Door | 2207 | 811 | 1013 | |
| E84710CRG | Blank Door + Rear Panel | 2207 | 811 | 1013 | |
| E84710CRN | Blank Door + Rear Panel | 2207 | 811 | 1013 | |
| E84710VCG | Glazed Door + Blank Door | 2207 | 811 | 1013 | |
| E84710VCN | Glazed Door + Blank Door | 2207 | 811 | 1013 | |
| E84710VRG | Glazed Door + Rear Panel | 2207 | 811 | 1013 | |
| E84710VRN | Glazed Door + Rear Panel | 2207 | 811 | 1013 | |
| E84712AAG | Ventilated Door + Ventilated Door | 2207 | 811 | 1213 | |
| E84712AAN | Ventilated Door + Ventilated Door | 2207 | 811 | 1213 | |
| E84712ABG | Ventilated Door + Double Ventilated Door | 2207 | 811 | 1213 | |
| E84712ABN | Ventilated Door + Double Ventilated Door | 2207 | 811 | 1213 | |
| E84712BBG | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 1213 | |
| E84712BBN | Double Ventilated Door + Double Ventilated Door | 2207 | 811 | 1213 | |
| E84712CCG | Blank Door + Blank Door | 2207 | 811 | 1213 | |
| E84712CCN | Blank Door + Blank Door | 2207 | 811 | 1213 | |
| E84712CRG | Blank Door + Rear Panel | 2207 | 811 | 1213 | |
| E84712CRN | Blank Door + Rear Panel | 2207 | 811 | 1213 | |
| E84712VCG | Glazed Door + Blank Door | 2207 | 811 | 1213 | |
| E84712VCN | Glazed Door + Blank Door | 2207 | 811 | 1213 | |
| E84712VRG | Glazed Door + Rear Panel | 2207 | 811 | 1213 | |
| E84712VRN | Glazed Door + Rear Panel | 2207 | 811 | 1213 |
Contact our team of experts to discuss your project requirements and request a quote today.
quality and reliability in everything we do
